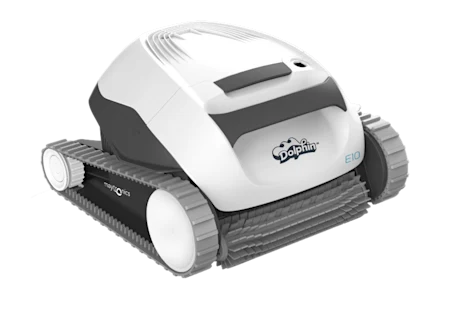

Dolphin E10 parts.
See how it fits.
Explore your cleaner, one assembly at a time. Select a numbered part to find its reference, order from our range or ask our Perth team for help.
Model reference / 99996133-AUInside your cleaner
Find it in the breakdown.
Choose an assembly, then select a numbered reference. Have your serial number handy to check the right version.
Additional supplied diagrams
Tap a reference to identify a part. Zoom in for detail and drag to move the drawing.
Checking current PRP prices and availability…
Choose a part
Follow the reference.
The part number and available purchase or enquiry options will appear here.
Every listed reference
The E10 parts list.
Model 99996133-AU. A diagram reference identifies the component; the part number identifies the replacement. Quantity is the number you wish to order.
Browse all 70 part references
| Ref. | Part number / description | Order or enquire |
|---|---|---|
| 9991461-ASSYFilter Canister Monoblock M1B AssyE10 | Ask us about this part Enquire about this part | |
| 3379440-AScrew KA50X12 A2 WN1412 (Retail)OUTER CASING E10 – KIT | Ask us about this part Enquire about this part | |
| 3379616-AScrew KA50X16 (Retail)OUTER CASING E10 – KIT | Ask us about this part Enquire about this part | |
| 3101308-AScrew M3X8 DIN965A-A2 TUFMotor Unit M1B Ex | Ask us about this part Enquire about this part | |
| 3379616-AScrew KA50X16 (Retail)Motor Unit M1B Ex | Ask us about this part Enquire about this part | |
| 3374012-AScrew KA 40×12Motor Unit M1B Ex | Ask us about this part Enquire about this part | |
| 3379440-AScrew KA50X12 A2 WN1412 (Retail)CHASSIS S1 WHOLE COVER – KIT | Ask us about this part Enquire about this part | |
| 3379616-AScrew KA50X16 (Retail)DRIVE SYS RW100- KIT | Ask us about this part Enquire about this part | |
| 9983040Handle – S SeriesFilter Canister Monoblock M1B Assy | Ask us about this part Enquire about this part | |
| 9983041Valve Holder MonoblockFilter Canister Monoblock M1B Assy | Ask us about this part Enquire about this part | |
| 6350151Non Return Valve (M2/M2i Small)Filter Canister Monoblock M1B Assy | Ask us about this part Enquire about this part | |
| 6350120Filter Net Monoblock S1Filter Canister Monoblock M1B Assy | Ask us about this part Enquire about this part | |
| M96100061Monoblock Adaptor S1 C.Grey 11CFilter Canister Monoblock M1B Assy | Ask us about this part Enquire about this part | |
| 99952170-ASSYFilter Cover E10 AssyOUTER CASING E10 – KIT | Ask us about this part Enquire about this part | |
| 9983057Filter Cover Latch GreyOUTER CASING E10 – KIT | Ask us about this part Enquire about this part | |
| M96130031DIY Cover E10 WhiteOUTER CASING E10 – KIT | Ask us about this part Enquire about this part | |
| M96130071Grommet Lid E10 WhiteOUTER CASING E10 – KIT | Ask us about this part Enquire about this part | |
| 99952134-ASSYOuter Casing E10 (White)OUTER CASING E10 – KIT | Ask us about this part Enquire about this part | |
| 9991748Float + Housing For S50OUTER CASING E10 – KIT | Ask us about this part Enquire about this part | |
| 9995389-EXMotor Unit M1B ExMOTOR UNIT S1 BASIC – KIT | Ask us about this part Enquire about this part | |
| 9995389-ASSYMotor Unit M1B ASSYMOTOR UNIT S1 BASIC – KIT | Ask us about this part Enquire about this part | |
| 9991742Small Nozzle Tube AssyMotor Unit M1B Ex | Ask us about this part Enquire about this part | |
| 9991740Water Tube M1 L+R AssyMotor Unit M1B Ex | Ask us about this part Enquire about this part | |
| 9995266Impeller + Screw DC BlackMotor Unit M1B Ex | Ask us about this part Enquire about this part | |
| 5588902Impeller Motor Holder 2Motor Unit M1B Ex | Ask us about this part Enquire about this part | |
| 9983155Cover For Pump Motor Box + M1*Motor Unit M1B Ex | Ask us about this part Enquire about this part | |
| 3861644O-Ring 164*4 N70Motor Unit M1B Ex | Ask us about this part Enquire about this part | |
| 3862503Seal Oring 25X3 I.MMotor Unit M1B Ex | Ask us about this part Enquire about this part | |
| 5583323Seal Oring 32X3Motor Unit M1B Ex | Ask us about this part Enquire about this part | |
| 9991211-ASSYImpeller Motor S300 AssyMotor Unit M1B Ex | Ask us about this part Enquire about this part | |
| 9983406PCB Holder S300Motor Unit M1B Ex | Ask us about this part Enquire about this part | |
| 9995002Electronic Card E10Motor Unit M1B Ex | Ask us about this part Enquire about this part | |
| 9983180Front Clips For MBU S300Motor Unit M1B Ex | Ask us about this part Enquire about this part | |
| 9991210-ASSYDrive Motor S300 AssyMotor Unit M1B Ex | Ask us about this part Enquire about this part | |
| 9983142Gear Z12 For Drive MotorMotor Unit M1B Ex | Ask us about this part Enquire about this part | |
| 3862474Oring 47x4mmMotor Unit M1B Ex | Ask us about this part Enquire about this part | |
| 9983166Cable Clips For MBUMotor Unit M1B Ex | Ask us about this part Enquire about this part | |
| 9983140Clip For MBUMotor Unit M1B Ex | Ask us about this part Enquire about this part | |
| 5890051LFCable Loom MBU 2010Motor Unit M1B Ex | Ask us about this part Enquire about this part | |
| 9991746-ASSYINNER WEIGHT FOR M1 CHASSIS ASSYCHASSIS S1 WHOLE COVER – KIT | Ask us about this part Enquire about this part | |
| M96150141Bypass Cover Top M1 C.GrCHASSIS S1 WHOLE COVER – KIT | Ask us about this part Enquire about this part | |
| 9991743-ASSYBypass Door Assy S100CHASSIS S1 WHOLE COVER – KIT | Ask us about this part Enquire about this part | |
| M96150081Bypass Cover Right S1F5 C.GR 11CCHASSIS S1 WHOLE COVER – KIT | Ask us about this part Enquire about this part | |
| 9991747Bottom Float + Housing For S100CHASSIS S1 WHOLE COVER – KIT | Ask us about this part Enquire about this part | |
| 9983024Rapid Drain Flap (E10)CHASSIS S1 WHOLE COVER – KIT | Ask us about this part Enquire about this part | |
| M96100081Bypass Cover Bottom (Solid) C.Grey 11CCHASSIS S1 WHOLE COVER – KIT | Ask us about this part Enquire about this part | |
| 9991752Chassis Assembly (X20/S100)CHASSIS S1 WHOLE COVER – KIT | Ask us about this part Enquire about this part | |
| 3917022Spring for FilterCHASSIS S1 WHOLE COVER – KIT | Ask us about this part Enquire about this part | |
| M96100041Active Brush Bracket RCHASSIS S1 WHOLE COVER – KIT | Ask us about this part Enquire about this part | |
| M96100051Active Brush Bracket LCHASSIS S1 WHOLE COVER – KIT | Ask us about this part Enquire about this part | |
| 9983042Bushing – Active Brush S100CHASSIS S1 WHOLE COVER – KIT | Ask us about this part Enquire about this part | |
| 9991820Vacuum Strip Kit (Pack of 3)CHASSIS S1 WHOLE COVER – KIT | Ask us about this part Enquire about this part | |
| 9983152Track: M1/M2 GreyDRIVE SYS RW100- KIT | Ask us about this part Enquire about this part | |
| M96100011Wheel Cover Large WhiteDRIVE SYS RW100- KIT | Ask us about this part Enquire about this part | |
| 99834101Wheel Front White*DRIVE SYS RW100- KIT | Ask us about this part Enquire about this part | |
| M96200033Wheel Disc S1 White*DRIVE SYS RW100- KIT | Ask us about this part Enquire about this part | |
| 9983114Bushing – Wheel 2DRIVE SYS RW100- KIT | Ask us about this part Enquire about this part | |
| M96100021Wheel Plug S1 White*DRIVE SYS RW100- KIT | Ask us about this part Enquire about this part | |
| 9983015Wheel Small WhiteDRIVE SYS RW100- KIT | Ask us about this part Enquire about this part | |
| 3726283Bypass and Wheel Weight for M1DRIVE SYS RW100- KIT | Ask us about this part Enquire about this part | |
| 9983018Gear For Active Brush M1 Z12DRIVE SYS RW100- KIT | Ask us about this part Enquire about this part | |
| 9995544-ASSYBrush Active E10 Grey AssyDRIVE SYS RW100- KIT | Ask us about this part Enquire about this part | |
| 9983017Active Brush Adaptor (M1)Brush Active E10 Grey Assy | Ask us about this part Enquire about this part | |
| 61300602Brush For Active Brush GreyBrush Active E10 Grey Assy | Ask us about this part Enquire about this part | |
| 58984405LFCable – Power Supply AUPS BASIC 230V AU- KIT | Ask us about this part Enquire about this part | |
| 9991754Cable LOCKER FOR P.S ASSYPS BASIC 230V AU- KIT | Ask us about this part Enquire about this part | |
| 9983204Cork For DC in PWS S300iPS BASIC 230V AU- KIT | Ask us about this part Enquire about this part | |
| 99956032-AU-15Power Supply Basic 230V AUPS BASIC 230V AU- KIT | Ask us about this part Enquire about this part | |
| 3379408-AScrew WN1412 A2 KA40X8Filter Canister Monoblock M1B Assy | Ask us about this part Enquire about this part | |
| 3374016-AScrew KA40x16 WN1412Filter Canister Monoblock M1B Assy | Ask us about this part Enquire about this part |
Local matching help
Not sure which version?
Send your cleaner model, serial number and a photo of the part. Our Wangara and Jandakot team can help you find the right match.
