PRP / Maytronics spare parts

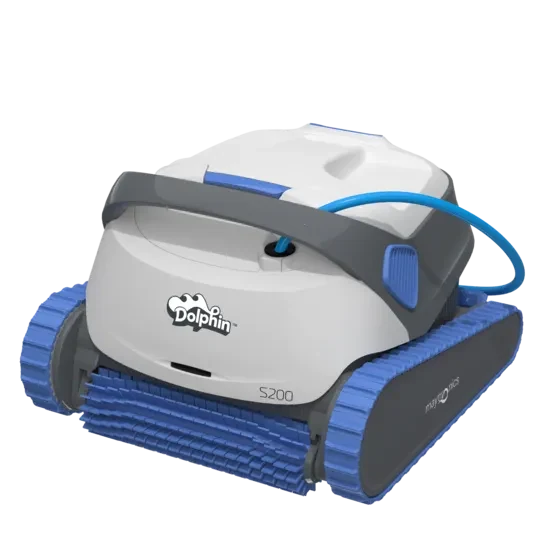

Dolphin S200 parts.
See how it fits.
Explore your cleaner, one assembly at a time. Select a numbered part to find its reference, order from our range or ask our Perth team for help.
Model reference / 99996202-AUInside your cleaner
Find it in the breakdown.
Choose an assembly, then select a numbered reference. Have your serial number handy to check the right version.
Tap a reference to identify a part. Zoom in for detail and drag to move the drawing.
Checking current PRP prices and availability…
Choose a part
Follow the reference.
The part number and available purchase or enquiry options will appear here.
Every listed reference
The S200 parts list.
Model 99996202-AU. A diagram reference identifies the component; the part number identifies the replacement. Quantity is the number you wish to order.
Browse all 90 part references
| Ref. | Part number / description | Order or enquire |
|---|---|---|
| 3354020-AScrew KA40X20 (Retail)Motor Unit M2 Ex | Ask us about this part Enquire about this part | |
| 3379616-AScrew KA50X16 (Retail)Motor Unit M2 Ex | Ask us about this part Enquire about this part | |
| 3101308-AScrew M3X8 DIN965A-A2 TUFMotor Unit M2 Ex | Ask us about this part Enquire about this part | |
| 3379440-AScrew KA50X12 A2 WN1412 (Retail)CHASSIS S300 | Ask us about this part Enquire about this part | |
| 3379616-AScrew KA50X16 (Retail)DRIVE SYSTEM S200/S300 – KIT | Ask us about this part Enquire about this part | |
| 99958906-DIYCable and Swv DIY 18M Diag M2i 99958906-DIYS200 | Ask us about this part Enquire about this part | |
| 9983106Filter Basket Rough M2iFILTERS S300i | Ask us about this part Enquire about this part | |
| 9991458-ASSYFilter Basket Assy M2/M2i Ultra FineFILTERS S300i | Ask us about this part Enquire about this part | |
| 9983108Filter Handle S300iFilter Basket Assy M2/M2i Ultra Fine | Ask us about this part Enquire about this part | |
| 9983109Filter Backet Handle Latch s300iFilter Basket Assy M2/M2i Ultra Fine | Ask us about this part Enquire about this part | |
| 3917029Filter Handle Spring S300iFilter Basket Assy M2/M2i Ultra Fine | Ask us about this part Enquire about this part | |
| 9983110Filter Top S300iFilter Basket Assy M2/M2i Ultra Fine | Ask us about this part Enquire about this part | |
| 6350150Non Return Valve (M2/M2i Large)Filter Basket Assy M2/M2i Ultra Fine | Ask us about this part Enquire about this part | |
| 9983162Filter Pillar 2Filter Basket Assy M2/M2i Ultra Fine | Ask us about this part Enquire about this part | |
| 9983161Filter Pillar 1Filter Basket Assy M2/M2i Ultra Fine | Ask us about this part Enquire about this part | |
| 9983107Filter DoorFilter Basket Assy M2/M2i Ultra Fine | Ask us about this part Enquire about this part | |
| 9983105Filter Bottom S300i + OMFilter Basket Assy M2/M2i Ultra Fine | Ask us about this part Enquire about this part | |
| 9991467-ASSYFilter Panel Kit M2/M2i Ultra Fine (4)Filter Basket Assy M2/M2i Ultra Fine | Ask us about this part Enquire about this part | |
| 9983175Lid Top S300i White*OUTER CASING S300i | Ask us about this part Enquire about this part | |
| 99952102-ASSYOuter Casing S300iOUTER CASING S300i | Ask us about this part Enquire about this part | |
| 99831731Grill Left S300i Blue*OUTER CASING S300i | Ask us about this part Enquire about this part | |
| 99831741Grill Right S300i Blue*OUTER CASING S300i | Ask us about this part Enquire about this part | |
| 99952112-ASSYRear Lid S300i White AssyOUTER CASING S300i | Ask us about this part Enquire about this part | |
| 99831362Filter Cover Latch Blue (S150-S300i)OUTER CASING S300i | Ask us about this part Enquire about this part | |
| M96200001Chassis S2 (Grey)CHASSIS S300 | Ask us about this part Enquire about this part | |
| 3726284Weight Rear S300iCHASSIS S300 | Ask us about this part Enquire about this part | |
| 3917022Spring for FilterCHASSIS S300 | Ask us about this part Enquire about this part | |
| 9983172LED Lens M2iOUTER CASING S300i | Ask us about this part Enquire about this part | |
| 99830244Rapid Drain Flap (M600)CHASSIS S300 | Ask us about this part Enquire about this part | |
| 9991733Float + Housing for S300iCHASSIS S300 | Ask us about this part Enquire about this part | |
| 9983262Inlet Chassis Strip M600CHASSIS S300 | Ask us about this part Enquire about this part | |
| M96200057Side Panel (Grey)CHASSIS S300 | Ask us about this part Enquire about this part | |
| 9991731-ASSYBypass Assy M2/M2iCHASSIS S300 | Ask us about this part Enquire about this part | |
| M96200061Bypass Cover Left S2 C.Grey*CHASSIS S300 | Ask us about this part Enquire about this part | |
| M96200071Bypass Cover Right S2 C.GreyCHASSIS S300 | Ask us about this part Enquire about this part | |
| 99953057-EXMotor Unit M2 ExM.U S2 IOT- EX KIT | Ask us about this part Enquire about this part | |
| 9991730Water Tube M2/M2i AssyM.U S2 IOT- EX KIT | Ask us about this part Enquire about this part | |
| 9991735WATER ADJUSTER TUBE M2/M2i ASSYMotor Unit M2 Ex | Ask us about this part Enquire about this part | |
| 9983146Impeller Tube**Motor Unit M2 Ex | Ask us about this part Enquire about this part | |
| 9983356Servo Pin M2 iOMotor Unit M2 Ex | Ask us about this part Enquire about this part | |
| 9983363Servo SpacerMotor Unit M2 Ex | Ask us about this part Enquire about this part | |
| 5588902Impeller Motor Holder 2Motor Unit M2 Ex | Ask us about this part Enquire about this part | |
| 9995266Impeller + Screw DC BlackMotor Unit M2 Ex | Ask us about this part Enquire about this part | |
| 9991765-ASSYCover MU S300+Servo+Card Assy IoTMotor Unit M2 Ex | Ask us about this part Enquire about this part | |
| 3861644O-Ring 164*4 N70Motor Unit M2 Ex | Ask us about this part Enquire about this part | |
| 9983406PCB Holder S300Motor Unit M2 Ex | Ask us about this part Enquire about this part | |
| 3862503Seal Oring 25X3 I.MMotor Unit M2 Ex | Ask us about this part Enquire about this part | |
| 5583323Seal Oring 32X3Motor Unit M2 Ex | Ask us about this part Enquire about this part | |
| 5890051LFCable Loom MBU 2010Motor Unit M2 Ex | Ask us about this part Enquire about this part | |
| 9991211-ASSYImpeller Motor S300 AssyMotor Unit M2 Ex | Ask us about this part Enquire about this part | |
| 9983180Front Clips For MBU S300Motor Unit M2 Ex | Ask us about this part Enquire about this part | |
| 4850010Desiccant Bag*Motor Unit M2 Ex | Ask us about this part Enquire about this part | |
| 9983166Cable Clips For MBUMotor Unit M2 Ex | Ask us about this part Enquire about this part | |
| 9991210-ASSYDrive Motor S300 AssyMotor Unit M2 Ex | Ask us about this part Enquire about this part | |
| 9983142Gear Z12 For Drive MotorMotor Unit M2 Ex | Ask us about this part Enquire about this part | |
| 3862474Oring 47x4mmMotor Unit M2 Ex | Ask us about this part Enquire about this part | |
| 9983140Clip For MBUMotor Unit M2 Ex | Ask us about this part Enquire about this part | |
| 9991736Box for MU S300i + LED AssyMotor Unit M2 Ex | Ask us about this part Enquire about this part | |
| 9995545-ASSYActive Brush S300i Blue AssyDRIVE SYSTEM S200/S300 – KIT | Ask us about this part Enquire about this part | |
| 3379616-AScrew KA50X16 (Retail)Active Brush S300i Blue Assy | Ask us about this part Enquire about this part | |
| 9983123Active Brush Gear M2/M2iActive Brush S300i Blue Assy | Ask us about this part Enquire about this part | |
| M96200011Active Brush Holder M2/M2i LActive Brush S300i Blue Assy | Ask us about this part Enquire about this part | |
| 9983119Active Brush Adaptor (M2/M2i R)Active Brush S300i Blue Assy | Ask us about this part Enquire about this part | |
| 61300601Brush Active PVC OM (Blue)Active Brush S300i Blue Assy | Ask us about this part Enquire about this part | |
| 9983113Bushing – Active Brush S300Active Brush S300i Blue Assy | Ask us about this part Enquire about this part | |
| 9983118Active Brush Adaptor (M2/M2i L)Active Brush S300i Blue Assy | Ask us about this part Enquire about this part | |
| M96200021Active Brush Holder M2/M2i RActive Brush S300i Blue Assy | Ask us about this part Enquire about this part | |
| 9983114Bushing – Wheel 2DRIVE SYSTEM S200/S300 – KIT | Ask us about this part Enquire about this part | |
| M96200031Wheel Disc S1 Grey 11CDRIVE SYSTEM S200/S300 – KIT | Ask us about this part Enquire about this part | |
| 9983410Wheel Front Grey GR130DRIVE SYSTEM S200/S300 – KIT | Ask us about this part Enquire about this part | |
| 99955381-ASSYBrush Assy PVC BlueDRIVE SYSTEM S200/S300 – KIT | Ask us about this part Enquire about this part | |
| 3379616-AScrew KA50X16 (Retail)Brush Assy PVC Blue | Ask us about this part Enquire about this part | |
| 9983112Bearing: Wheel M2/M2iBrush Assy PVC Blue | Ask us about this part Enquire about this part | |
| 6130006Brush S Line PVC Blue Moulded*Brush Assy PVC Blue | Ask us about this part Enquire about this part | |
| 9983120Adaptor For Wheel Bearing M2/M2iBrush Assy PVC Blue | Ask us about this part Enquire about this part | |
| 9983115Bushing – Brush 3Brush Assy PVC Blue | Ask us about this part Enquire about this part | |
| 99831521Track: M1/M2 BlueDRIVE SYSTEM S200/S300 – KIT | Ask us about this part Enquire about this part | |
| 58984405LFCable – Power Supply AUPS ADVANCED 230V AU- KIT | Ask us about this part Enquire about this part | |
| 9991754Cable LOCKER FOR P.S ASSYPS ADVANCED 230V AU- KIT | Ask us about this part Enquire about this part | |
| 9983204Cork For DC in PWS S300iPS ADVANCED 230V AU- KIT | Ask us about this part Enquire about this part | |
| 99956033-AU-15Power Supply Advanced 230V AUPS ADVANCED 230V AU- KIT | Ask us about this part Enquire about this part | |
| 99956082-ASSYPower Supply Universal (Basic)PS ADVANCED 230V AU- KIT | Ask us about this part Enquire about this part | |
| 9991271Retrofit For Cable Con 2015Cable and Swv DIY 18M Diag M2i 99958906-DIY | Ask us about this part Enquire about this part | |
| 9983126Gromet For Cable SmallCable and Swv DIY 18M Diag M2i 99958906-DIY | Ask us about this part Enquire about this part | |
| 9995090Cable Float AssyCable and Swv DIY 18M Diag M2i 99958906-DIY | Ask us about this part Enquire about this part | |
| 99958814-DIYCable Diag 1.2m SWV DIY (2015 Line)Cable and Swv DIY 18M Diag M2i 99958906-DIY | Ask us about this part Enquire about this part | |
| 5000009Amphenol Plug*Cable and Swv DIY 18M Diag M2i 99958906-DIY | Ask us about this part Enquire about this part | |
| 3379616-AScrew KA50X16 (Retail)OUTER CASING S300i | Ask us about this part Enquire about this part | |
| 3379440-AScrew KA50X12 A2 WN1412 (Retail)OUTER CASING S300i | Ask us about this part Enquire about this part | |
| 3379410-AScrew WN1412 A2 KA40X10Filter Basket Assy M2/M2i Ultra Fine | Ask us about this part Enquire about this part |
Local matching help
Not sure which version?
Send your cleaner model, serial number and a photo of the part. Our Wangara and Jandakot team can help you find the right match.
