PRP / Maytronics spare parts
Dolphin Wave 90i parts.
See how it fits.

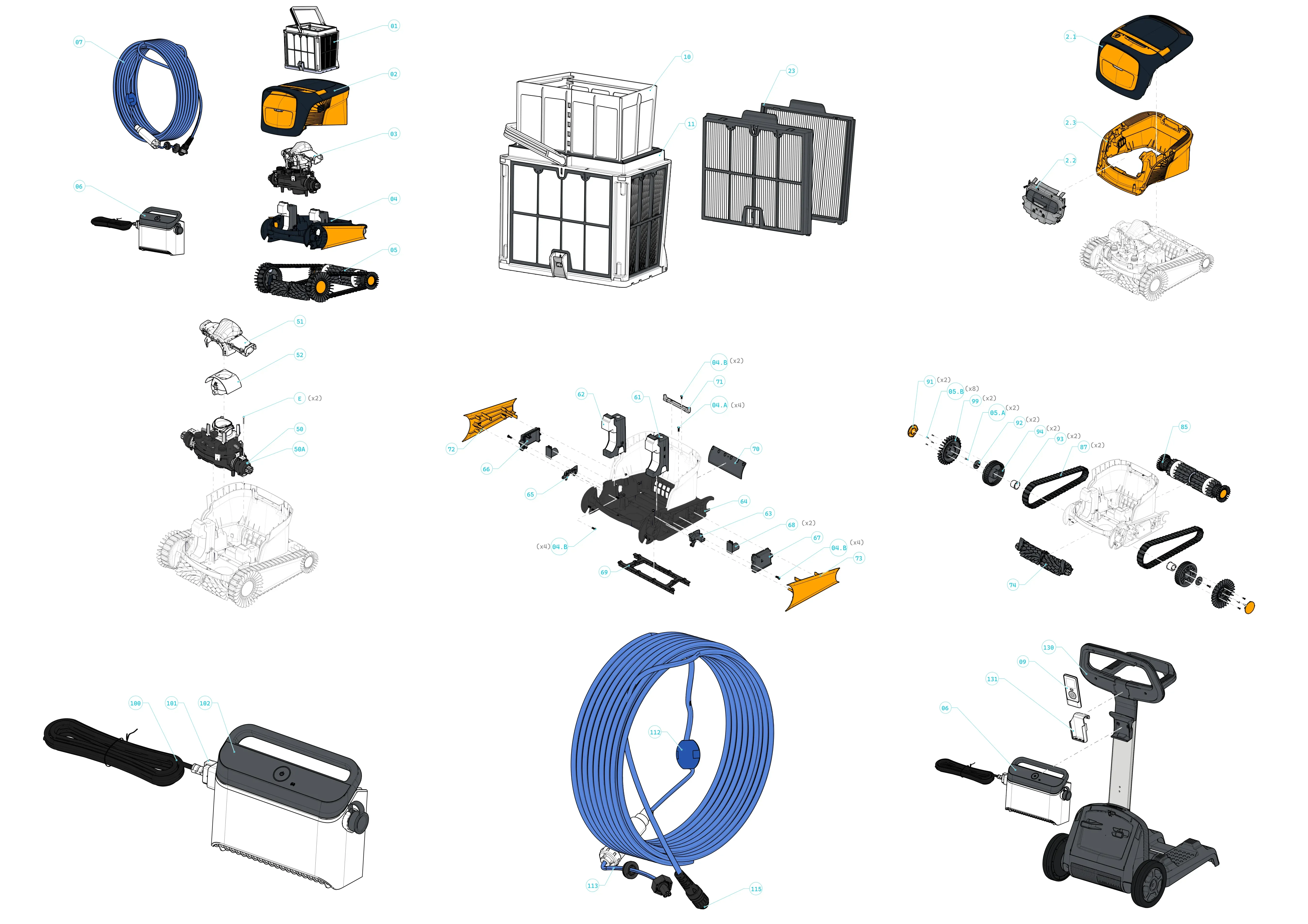

Explore your cleaner, one assembly at a time. Select a numbered part to find its reference, order from our range or ask our Perth team for help.
Model reference / 99996890-AUInside your cleaner
Find it in the breakdown.
Choose an assembly, then select a numbered reference. Have your serial number handy to check the right version.
Additional supplied diagrams
Tap a reference to identify a part. Zoom in for detail and drag to move the drawing.
Checking current PRP prices and availability…
Choose a part
Follow the reference.
The part number and available purchase or enquiry options will appear here.
Every listed reference
The Wave 90i parts list.
Model 99996890-AU. A diagram reference identifies the component; the part number identifies the replacement. Quantity is the number you wish to order.
Browse all 116 part references
| Ref. | Part number / description | Order or enquire |
|---|---|---|
| 9983106Filter Basket Rough M2iFILTER M600 – KIT | Ask us about this part Enquire about this part | |
| 9991660-ASSYFilter Basket Assy M600FILTER M600 – KIT | Ask us about this part Enquire about this part | |
| 9991661-ASSYFilter Cartridges Net (Set of 4)Filter Basket Assy M600 | Ask us about this part Enquire about this part | |
| 9991479-ASSYFilter Panel Kit M2/M2i Ultra Fine (F&R – 2)FILTER M600 – KIT | Ask us about this part Enquire about this part | |
| 9991578-ASSYFilter Door Assy (Wave 90)OUTER CASING W90i TOP – KIT | Ask us about this part Enquire about this part | |
| 999571417-ASSYHandle Kit (Wave 90)OUTER CASING W90i TOP – KIT | Ask us about this part Enquire about this part | |
| M96420051Gromet Holder iO Orange 137COUTER CASING W90i TOP – KIT | Ask us about this part Enquire about this part | |
| 99933012-ASSYFront Panel (Wave 90 inc Stickers)OUTER CASING W90i TOP – KIT | Ask us about this part Enquire about this part | |
| M96420041Cover DIY M800 Orange 137COUTER CASING W90i TOP – KIT | Ask us about this part Enquire about this part | |
| 3379616-AScrew KA50X16 (Retail)OUTER CASING W90i TOP – KIT | Ask us about this part Enquire about this part | |
| 3305040-AScrew KA50X40 (Retail)OUTER CASING W90i TOP – KIT | Ask us about this part Enquire about this part | |
| M96420171Skirt Panel M800 BlackOUTER CASING W90i FRONT – KIT | Ask us about this part Enquire about this part | |
| M96410251Float Housing M600 C.GreyOUTER CASING W90i FRONT – KIT | Ask us about this part Enquire about this part | |
| 9991340-ASSYElectronic Card LED (M600)OUTER CASING W90i FRONT – KIT | Ask us about this part Enquire about this part | |
| 6250963Float M600OUTER CASING W90i FRONT – KIT | Ask us about this part Enquire about this part | |
| 9983295Cover Float M600OUTER CASING W90i FRONT – KIT | Ask us about this part Enquire about this part | |
| 6250964Float Front M600 iO F1/F2OUTER CASING W90i FRONT – KIT | Ask us about this part Enquire about this part | |
| 3379440-AScrew KA50X12 A2 WN1412 (Retail)OUTER CASING W90i FRONT – KIT | Ask us about this part Enquire about this part | |
| 9991577-ASSYSkirt Assy (Wave 90)OUTER CASING W90i – KIT | Ask us about this part Enquire about this part | |
| 99953061-EXMotor Unit Wave 90i Ex*MOTOR UNIT W90i – KIT | Ask us about this part Enquire about this part | |
| 3379440-AScrew KA50X12 A2 WN1412 (Retail)Motor Unit Wave 90i Ex | Ask us about this part Enquire about this part | |
| 3101308-AScrew M3X8 DIN965A-A2 TUFMotor Unit Wave 90i Ex | Ask us about this part Enquire about this part | |
| 5890091LFCable MUB M600 4 PinMotor Unit Wave 90i Ex | Ask us about this part Enquire about this part | |
| 99917782-ASSYImpeller Cylinder Jet Assy ClearMotor Unit Wave 90i Ex | Ask us about this part Enquire about this part | |
| 9983356Servo Pin M2 iOMotor Unit Wave 90i Ex | Ask us about this part Enquire about this part | |
| 9983363Servo SpacerMotor Unit Wave 90i Ex | Ask us about this part Enquire about this part | |
| 5588902Impeller Motor Holder 2Motor Unit Wave 90i Ex | Ask us about this part Enquire about this part | |
| 9995266Impeller + Screw DC BlackMotor Unit Wave 90i Ex | Ask us about this part Enquire about this part | |
| 9991822-ASSYCover MU M600+Servo+Card AssyMotor Unit Wave 90i Ex | Ask us about this part Enquire about this part | |
| 3861644O-Ring 164*4 N70Motor Unit Wave 90i Ex | Ask us about this part Enquire about this part | |
| 3862503Seal Oring 25X3 I.MMotor Unit Wave 90i Ex | Ask us about this part Enquire about this part | |
| 5583323Seal Oring 32X3Motor Unit Wave 90i Ex | Ask us about this part Enquire about this part | |
| 5890090LFCable MBU M600Motor Unit Wave 90i Ex | Ask us about this part Enquire about this part | |
| 9991208-ASSYImpeller Motor M600 AssyMotor Unit Wave 90i Ex | Ask us about this part Enquire about this part | |
| 9983180Front Clips For MBU S300Motor Unit Wave 90i Ex | Ask us about this part Enquire about this part | |
| 4850023Desiccant BagMotor Unit Wave 90i Ex | Ask us about this part Enquire about this part | |
| 9991207-ASSYDrive Motor M600 AssyMotor Unit Wave 90i Ex | Ask us about this part Enquire about this part | |
| 9983142Gear Z12 For Drive MotorMotor Unit Wave 90i Ex | Ask us about this part Enquire about this part | |
| 3862474Oring 47x4mmMotor Unit Wave 90i Ex | Ask us about this part Enquire about this part | |
| 9983140Clip For MBUMotor Unit Wave 90i Ex | Ask us about this part Enquire about this part | |
| 9991823-ASSYBox For MU M600 + F.I AssyMotor Unit Wave 90i Ex | Ask us about this part Enquire about this part | |
| 99966009Maifold Kit with Flaps (M600)MOTOR UNIT W90i – KIT | Ask us about this part Enquire about this part | |
| 99917351Water Adjuster Tube M600 ASSYMOTOR UNIT W90i – KIT | Ask us about this part Enquire about this part | |
| 3305030-AScrew KA50X30 (Retail)MOTOR UNIT W90i – KIT | Ask us about this part Enquire about this part | |
| 3379616-AScrew KA50X16 (Retail)CHASSIS W90i – KIT | Ask us about this part Enquire about this part | |
| 3379440-AScrew KA50X12 A2 WN1412 (Retail)CHASSIS W90i – KIT | Ask us about this part Enquire about this part | |
| 9993318Float House Assy Left M600CHASSIS W90i – KIT | Ask us about this part Enquire about this part | |
| 9993319Float House Assy Right M600CHASSIS W90i – KIT | Ask us about this part Enquire about this part | |
| M96410162Chassis Door Left M600 BlackCHASSIS W90i – KIT | Ask us about this part Enquire about this part | |
| M96410013Chassis M600 BlackCHASSIS W90i – KIT | Ask us about this part Enquire about this part | |
| M96410172Chassis Door Right M600 BlackCHASSIS W90i – KIT | Ask us about this part Enquire about this part | |
| M96200071Bypass Cover Right S2 C.GreyCHASSIS W90i – KIT | Ask us about this part Enquire about this part | |
| M96200061Bypass Cover Left S2 C.Grey*CHASSIS W90i – KIT | Ask us about this part Enquire about this part | |
| 9991731-ASSYBypass Assy M2/M2iCHASSIS W90i – KIT | Ask us about this part Enquire about this part | |
| 9983262Inlet Chassis Strip M600CHASSIS W90i – KIT | Ask us about this part Enquire about this part | |
| 99830244Rapid Drain Flap (M600)CHASSIS W90i – KIT | Ask us about this part Enquire about this part | |
| 3726288REAR WEIGHT FOR iOCHASSIS W90i – KIT | Ask us about this part Enquire about this part | |
| M964102711Side Panel M600 Orange 137C RightCHASSIS W90i – KIT | Ask us about this part Enquire about this part | |
| M964102611Side Panel M600 Orange 137C LeftCHASSIS W90i – KIT | Ask us about this part Enquire about this part | |
| 3379616-AScrew KA50X16 (Retail)W90i DRIVE SYS – KIT | Ask us about this part Enquire about this part | |
| 3379450-AScrew KA40X12W90i DRIVE SYS – KIT | Ask us about this part Enquire about this part | |
| 9995553-ASSYWheel Assy Active Wave 90W90i DRIVE SYS – KIT | Ask us about this part Enquire about this part | |
| 3379616-AScrew KA50X16 (Retail)Wheel Assy Active Wave 90 | Ask us about this part Enquire about this part | |
| 9983123Active Brush Gear M2/M2iWheel Assy Active Wave 90 | Ask us about this part Enquire about this part | |
| M96410203Brush Bracket Active L Side (Wave 90)Wheel Assy Active Wave 90 | Ask us about this part Enquire about this part | |
| 9983113Bushing – Active Brush S300Wheel Assy Active Wave 90 | Ask us about this part Enquire about this part | |
| 9983119Active Brush Adaptor (M2/M2i R)Wheel Assy Active Wave 90 | Ask us about this part Enquire about this part | |
| 99832691Brush Active Centre Shaft M600 iO F1Wheel Assy Active Wave 90 | Ask us about this part Enquire about this part | |
| 6101910PVC Tube M600Wheel Assy Active Wave 90 | Ask us about this part Enquire about this part | |
| 9985063Bushing Central Front M600Wheel Assy Active Wave 90 | Ask us about this part Enquire about this part | |
| M96410213Brush Bracket Active R Side (Wave 90)Wheel Assy Active Wave 90 | Ask us about this part Enquire about this part | |
| 9985069Bushing Brush M600Wheel Assy Active Wave 90 | Ask us about this part Enquire about this part | |
| 9995556-ASSYWheel Assy Rear Wave 90W90i DRIVE SYS – KIT | Ask us about this part Enquire about this part | |
| 3379616-AScrew KA50X16 (Retail)Wheel Assy Rear Wave 90 | Ask us about this part Enquire about this part | |
| 6101611Brush WB RingWheel Assy Rear Wave 90 | Ask us about this part Enquire about this part | |
| 61020602Brush Dyn CB Dark Grey (Moulded)Wheel Assy Rear Wave 90 | Ask us about this part Enquire about this part | |
| 9983112Bearing: Wheel M2/M2iWheel Assy Rear Wave 90 | Ask us about this part Enquire about this part | |
| 3884080Bearing: Wheel Dyn TTWheel Assy Rear Wave 90 | Ask us about this part Enquire about this part | |
| 99876181Wheel Small Side Grey (Wave 90)Wheel Assy Rear Wave 90 | Ask us about this part Enquire about this part | |
| M964103111Wheel Cap Small Orange 137CWheel Assy Rear Wave 90 | Ask us about this part Enquire about this part | |
| 9983120Adaptor For Wheel Bearing M2/M2iWheel Assy Rear Wave 90 | Ask us about this part Enquire about this part | |
| 9983115Bushing – Brush 3Wheel Assy Rear Wave 90 | Ask us about this part Enquire about this part | |
| 6101910PVC Tube M600Wheel Assy Rear Wave 90 | Ask us about this part Enquire about this part | |
| 9985600Brush Bushing Rear BL131 (Wave 90i)Wheel Assy Rear Wave 90 | Ask us about this part Enquire about this part | |
| 99831524Track Liberty Cool GreyW90i DRIVE SYS – KIT | Ask us about this part Enquire about this part | |
| M96420181Wheel Cover Big M800 Orange 137CW90i DRIVE SYS – KIT | Ask us about this part Enquire about this part | |
| M96200031Wheel Disc S1 Grey 11CW90i DRIVE SYS – KIT | Ask us about this part Enquire about this part | |
| 9983114Bushing – Wheel 2W90i DRIVE SYS – KIT | Ask us about this part Enquire about this part | |
| 9983379Wheel Front Grey M600W90i DRIVE SYS – KIT | Ask us about this part Enquire about this part | |
| 99876162Brush Side Large (Wave 90)W90i DRIVE SYS – KIT | Ask us about this part Enquire about this part | |
| 58984405LFCable – Power Supply AUPOWER SUPPLY IOT 180W AU – KIT | Ask us about this part Enquire about this part | |
| 9991754Cable LOCKER FOR P.S ASSYPOWER SUPPLY IOT 180W AU – KIT | Ask us about this part Enquire about this part | |
| 99956083AU-AV10Power Supply IoT 180wPOWER SUPPLY IOT 180W AU – KIT | Ask us about this part Enquire about this part | |
| 99958830-DIYCable Dyn 24m SWV DIY (Wave 90)Wave 90i | Ask us about this part Enquire about this part | |
| 9995090Cable Float AssyCable Dyn 24m SWV DIY (Wave 90) | Ask us about this part Enquire about this part | |
| 99958831-DIYCable Dyn 1.2M DIY (Wave 90)Cable Dyn 24m SWV DIY (Wave 90) | Ask us about this part Enquire about this part | |
| 9991271Retrofit For Cable Con 2015Cable Dyn 1.2M DIY (Wave 90) | Ask us about this part Enquire about this part | |
| 1811404Cable ConnectorRetrofit For Cable Con 2015 | Ask us about this part Enquire about this part | |
| 3861002RK RING FOR CABLE CONN.Retrofit For Cable Con 2015 | Ask us about this part Enquire about this part | |
| 9980025Washer Gland 13MMRetrofit For Cable Con 2015 | Ask us about this part Enquire about this part | |
| 9980797NUT FOR MBU TERMINAL 2015Retrofit For Cable Con 2015 | Ask us about this part Enquire about this part | |
| 9985028Washer Plastic 9.5mm X 2mmRetrofit For Cable Con 2015 | Ask us about this part Enquire about this part | |
| 9983358Gromet 14mm M800Cable Dyn 1.2M DIY (Wave 90) | Ask us about this part Enquire about this part | |
| 5000009Amphenol Plug*Cable Dyn 24m SWV DIY (Wave 90) | Ask us about this part Enquire about this part | |
| 99954230-ASSYRCU BLE M600UNIVERSAL CADDY + RCU BLE – KIT | Ask us about this part Enquire about this part | |
| 9996085-ASSYCaddy (Domestic Universal – Retail Carton)UNIVERSAL CADDY + RCU BLE – KIT | Ask us about this part Enquire about this part | |
| 9991503-ASSYCaddy Sub (Domestic) Screw KitCaddy (Domestic Universal – Retail Carton) | Ask us about this part Enquire about this part | |
| 9980675Caddy Sub (Domestic) Handle HookCaddy (Domestic Universal – Retail Carton) | Ask us about this part Enquire about this part | |
| 9983202Caddy Sub (Domestic NS) Adaptor For PSUCaddy (Domestic Universal – Retail Carton) | Ask us about this part Enquire about this part | |
| 4197023-ASSYCaddy Sub (Domestic) Profile + Insert AssyCaddy (Domestic Universal – Retail Carton) | Ask us about this part Enquire about this part | |
| 9983203Caddy Sub (Domestic NS) Cover for PSU HousingCaddy (Domestic Universal – Retail Carton) | Ask us about this part Enquire about this part | |
| 9983181Caddy Sub (Domestic NS) Adaptor S LineCaddy (Domestic Universal – Retail Carton) | Ask us about this part Enquire about this part | |
| 9980672Caddy Sub (Domestic) Wheel CoverCaddy (Domestic Universal – Retail Carton) | Ask us about this part Enquire about this part | |
| 9980670Caddy Sub (Domestic) BaseCaddy (Domestic Universal – Retail Carton) | Ask us about this part Enquire about this part | |
| 9980681Caddy Sub (Domestic) WheelCaddy (Domestic Universal – Retail Carton) | Ask us about this part Enquire about this part | |
| 9983361RCU Holder M600 CaddyUNIVERSAL CADDY + RCU BLE – KIT | Ask us about this part Enquire about this part |
Local matching help
Not sure which version?
Send your cleaner model, serial number and a photo of the part. Our Wangara and Jandakot team can help you find the right match.
