PRP / Maytronics spare parts
Dolphin S100 parts.
See how it fits.
Explore your cleaner, one assembly at a time. Select a numbered part to find its reference, order from our range or ask our Perth team for help.

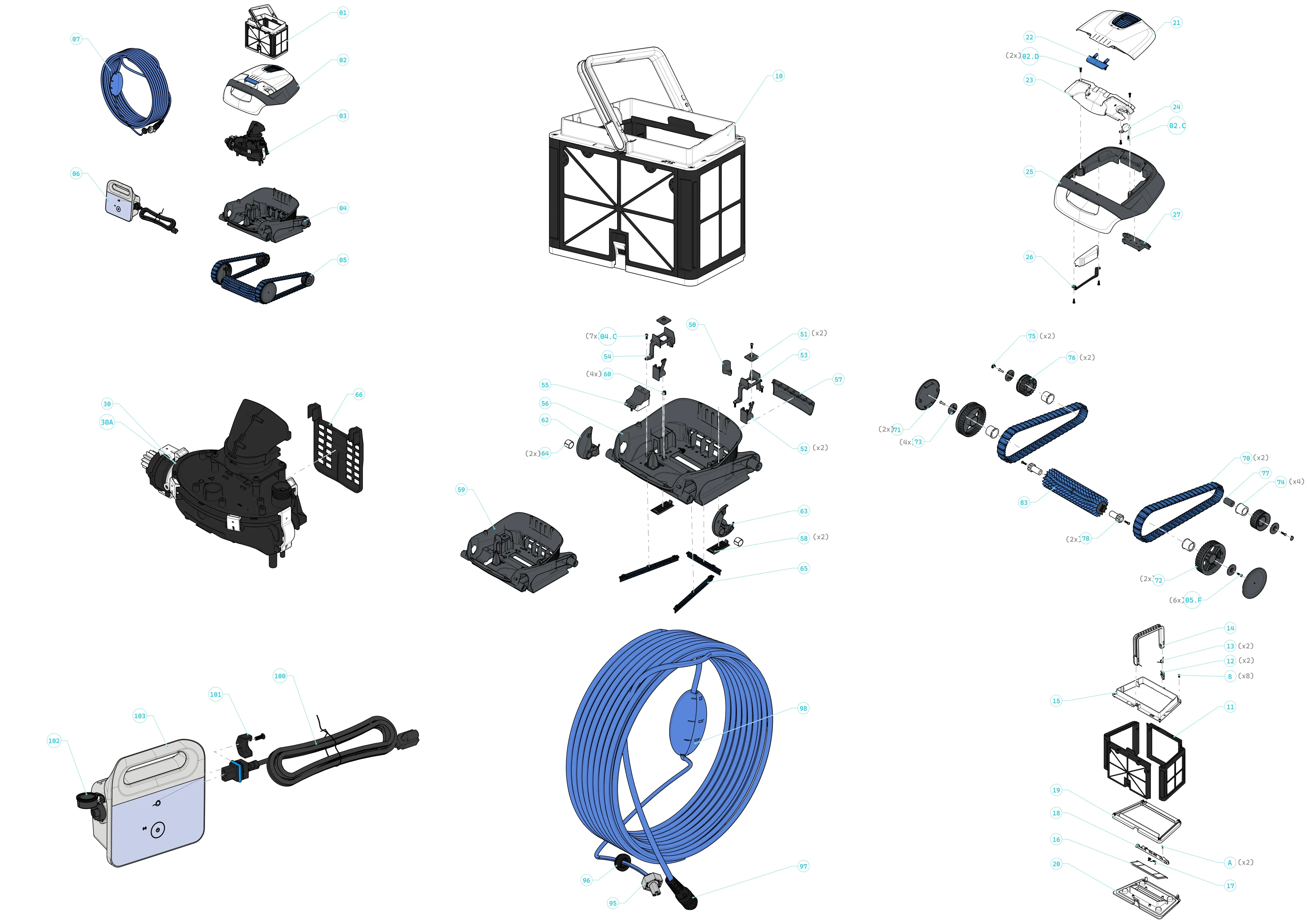

Model reference / 99996121-AUWTInside your cleaner
Find it in the breakdown.
Choose an assembly, then select a numbered reference. Have your serial number handy to check the right version.
Additional supplied diagrams
Tap a reference to identify a part. Zoom in for detail and drag to move the drawing.
Checking current PRP prices and availability…
Choose a part
Follow the reference.
The part number and available purchase or enquiry options will appear here.
Every listed reference
The S100 parts list.
Model 99996121-AUWT. A diagram reference identifies the component; the part number identifies the replacement. Quantity is the number you wish to order.
Browse all 77 part references
| Ref. | Part number / description | Order or enquire |
|---|---|---|
| 9991459-ASSYFilter Basket Assy M1 FineFILTER S1 SPRING – KIT | Ask us about this part Enquire about this part | |
| 9991468-ASSYFilter Panels M1 Fine (Pack of 4)Filter Basket Assy M1 Fine | Ask us about this part Enquire about this part | |
| 9983027Filter Handle Knob White*Filter Basket Assy M1 Fine | Ask us about this part Enquire about this part | |
| 3917029Filter Handle Spring S300iFilter Basket Assy M1 Fine | Ask us about this part Enquire about this part | |
| 9983004Filter Handle M1Filter Basket Assy M1 Fine | Ask us about this part Enquire about this part | |
| 9983037Filter Frame TopFilter Basket Assy M1 Fine | Ask us about this part Enquire about this part | |
| 9983025Non Return Valve For M1 FilterFilter Basket Assy M1 Fine | Ask us about this part Enquire about this part | |
| 3917014Bottom Lid SpringFilter Basket Assy M1 Fine | Ask us about this part Enquire about this part | |
| 9983026Filter HolderFilter Basket Assy M1 Fine | Ask us about this part Enquire about this part | |
| 9983096Filter Frame BottomFilter Basket Assy M1 Fine | Ask us about this part Enquire about this part | |
| 9983049Filter Door 2 + O.M*Filter Basket Assy M1 Fine | Ask us about this part Enquire about this part | |
| 3303008-AScrew KA30X8 WN1412 A2Filter Basket Assy M1 Fine | Ask us about this part Enquire about this part | |
| 3379450-AScrew KA40X12Filter Basket Assy M1 Fine | Ask us about this part Enquire about this part | |
| 3379440-AScrew KA50X12 A2 WN1412 (Retail)OUTER CASING S100 – KIT | Ask us about this part Enquire about this part | |
| 3379616-AScrew KA50X16 (Retail)OUTER CASING S100 – KIT | Ask us about this part Enquire about this part | |
| 99952173-ASSYFilter Cover S100 AssyOUTER CASING S100 – KIT | Ask us about this part Enquire about this part | |
| 99830083Filter Cover Latch Blue (S100)OUTER CASING S100 – KIT | Ask us about this part Enquire about this part | |
| 99952133-ASSYOuter Casing S100 ASSYOUTER CASING S100 – KIT | Ask us about this part Enquire about this part | |
| 9991744Float + Housing for S100OUTER CASING S100 – KIT | Ask us about this part Enquire about this part | |
| M96120051Outer Casing Adaptor S1F2 GR11COUTER CASING S100 – KIT | Ask us about this part Enquire about this part | |
| 9995392-EXMotor Unit S100/X20 2.5H ExMOTOR UNIT S1F CLIMB+SHIELD -KIT | Ask us about this part Enquire about this part | |
| 3101308-AScrew M3X8 DIN965A-A2 TUFMotor Unit S100/X20 2.5H Ex | Ask us about this part Enquire about this part | |
| 3379616-AScrew KA50X16 (Retail)Motor Unit S100/X20 2.5H Ex | Ask us about this part Enquire about this part | |
| 3374012-AScrew KA 40×12Motor Unit S100/X20 2.5H Ex | Ask us about this part Enquire about this part | |
| 9991742Small Nozzle Tube AssyMotor Unit S100/X20 2.5H Ex | Ask us about this part Enquire about this part | |
| 9991740Water Tube M1 L+R AssyMotor Unit S100/X20 2.5H Ex | Ask us about this part Enquire about this part | |
| 9995266Impeller + Screw DC BlackMotor Unit S100/X20 2.5H Ex | Ask us about this part Enquire about this part | |
| 5588902Impeller Motor Holder 2Motor Unit S100/X20 2.5H Ex | Ask us about this part Enquire about this part | |
| 9983419Cover For Pump Motor Box + M1Motor Unit S100/X20 2.5H Ex | Ask us about this part Enquire about this part | |
| 3861644O-Ring 164*4 N70Motor Unit S100/X20 2.5H Ex | Ask us about this part Enquire about this part | |
| 3862503Seal Oring 25X3 I.MMotor Unit S100/X20 2.5H Ex | Ask us about this part Enquire about this part | |
| 5583323Seal Oring 32X3Motor Unit S100/X20 2.5H Ex | Ask us about this part Enquire about this part | |
| 9991211-ASSYImpeller Motor S300 AssyMotor Unit S100/X20 2.5H Ex | Ask us about this part Enquire about this part | |
| 9983406PCB Holder S300Motor Unit S100/X20 2.5H Ex | Ask us about this part Enquire about this part | |
| 9995003Electronic Card M1Motor Unit S100/X20 2.5H Ex | Ask us about this part Enquire about this part | |
| 9983180Front Clips For MBU S300Motor Unit S100/X20 2.5H Ex | Ask us about this part Enquire about this part | |
| 9991210-ASSYDrive Motor S300 AssyMotor Unit S100/X20 2.5H Ex | Ask us about this part Enquire about this part | |
| 9983142Gear Z12 For Drive MotorMotor Unit S100/X20 2.5H Ex | Ask us about this part Enquire about this part | |
| 3862474Oring 47x4mmMotor Unit S100/X20 2.5H Ex | Ask us about this part Enquire about this part | |
| 9983166Cable Clips For MBUMotor Unit S100/X20 2.5H Ex | Ask us about this part Enquire about this part | |
| 9983140Clip For MBUMotor Unit S100/X20 2.5H Ex | Ask us about this part Enquire about this part | |
| 9983217Casing Motor Unit S100Motor Unit S100/X20 2.5H Ex | Ask us about this part Enquire about this part | |
| 5890051LFCable Loom MBU 2010Motor Unit S100/X20 2.5H Ex | Ask us about this part Enquire about this part | |
| 9995392-ASSYMotor Unit S100/X20 2.5H Assy*MOTOR UNIT S1F CLIMB+SHIELD -KIT | Ask us about this part Enquire about this part | |
| 9983087M1 MBU ShieldMOTOR UNIT S1F CLIMB+SHIELD -KIT | Ask us about this part Enquire about this part | |
| 3379440-AScrew KA50X12 A2 WN1412 (Retail)CHASSIS S100 – KIT | Ask us about this part Enquire about this part | |
| 9991746-ASSYINNER WEIGHT FOR M1 CHASSIS ASSYCHASSIS S100 – KIT | Ask us about this part Enquire about this part | |
| M96150141Bypass Cover Top M1 C.GrCHASSIS S100 – KIT | Ask us about this part Enquire about this part | |
| 9991743-ASSYBypass Door Assy S100CHASSIS S100 – KIT | Ask us about this part Enquire about this part | |
| M96150081Bypass Cover Right S1F5 C.GR 11CCHASSIS S100 – KIT | Ask us about this part Enquire about this part | |
| 9991747Bottom Float + Housing For S100CHASSIS S100 – KIT | Ask us about this part Enquire about this part | |
| 9983024Rapid Drain Flap (E10)CHASSIS S100 – KIT | Ask us about this part Enquire about this part | |
| M96100071Bypass Cover Bottom (Grate)CHASSIS S100 – KIT | Ask us about this part Enquire about this part | |
| 9991752Chassis Assembly (X20/S100)CHASSIS S100 – KIT | Ask us about this part Enquire about this part | |
| 3917022Spring for FilterCHASSIS S100 – KIT | Ask us about this part Enquire about this part | |
| M96100041Active Brush Bracket RCHASSIS S100 – KIT | Ask us about this part Enquire about this part | |
| M96100051Active Brush Bracket LCHASSIS S100 – KIT | Ask us about this part Enquire about this part | |
| 9983042Bushing – Active Brush S100CHASSIS S100 – KIT | Ask us about this part Enquire about this part | |
| 9991820Vacuum Strip Kit (Pack of 3)CHASSIS S100 – KIT | Ask us about this part Enquire about this part | |
| 3379616-AScrew KA50X16 (Retail)DRIVE SYS S100- KIT | Ask us about this part Enquire about this part | |
| 99831521Track: M1/M2 BlueDRIVE SYS S100- KIT | Ask us about this part Enquire about this part | |
| M96100013Wheel Cover Large Grey 11cDRIVE SYS S100- KIT | Ask us about this part Enquire about this part | |
| 9983111Wheel Front Grey*DRIVE SYS S100- KIT | Ask us about this part Enquire about this part | |
| M96200031Wheel Disc S1 Grey 11CDRIVE SYS S100- KIT | Ask us about this part Enquire about this part | |
| 9983114Bushing – Wheel 2DRIVE SYS S100- KIT | Ask us about this part Enquire about this part | |
| M96100023Wheel Plug S1 Grey 11CDRIVE SYS S100- KIT | Ask us about this part Enquire about this part | |
| 99830151Wheel Small Grey*DRIVE SYS S100- KIT | Ask us about this part Enquire about this part | |
| 3726283Bypass and Wheel Weight for M1DRIVE SYS S100- KIT | Ask us about this part Enquire about this part | |
| 9983018Gear For Active Brush M1 Z12DRIVE SYS S100- KIT | Ask us about this part Enquire about this part | |
| 9995546-ASSYActive Brush S100 BlueDRIVE SYS S100- KIT | Ask us about this part Enquire about this part | |
| 9983017Active Brush Adaptor (M1)Active Brush S100 Blue | Ask us about this part Enquire about this part | |
| 61300601Brush Active PVC OM (Blue)Active Brush S100 Blue | Ask us about this part Enquire about this part | |
| 58984405LFCable – Power Supply AUPS ADVANCED 230V AU- KIT | Ask us about this part Enquire about this part | |
| 9991754Cable LOCKER FOR P.S ASSYPS ADVANCED 230V AU- KIT | Ask us about this part Enquire about this part | |
| 9983204Cork For DC in PWS S300iPS ADVANCED 230V AU- KIT | Ask us about this part Enquire about this part | |
| 99956033-AU-15Power Supply Advanced 230V AUPS ADVANCED 230V AU- KIT | Ask us about this part Enquire about this part | |
| 99956082-ASSYPower Supply Universal (Basic)PS ADVANCED 230V AU- KIT | Ask us about this part Enquire about this part |
Local matching help
Not sure which version?
Send your cleaner model, serial number and a photo of the part. Our Wangara and Jandakot team can help you find the right match.
