Dolphin Wave 300XL 50m Cable parts.
See how it fits.
Explore your cleaner, one assembly at a time. Select a numbered part to find its reference, order from our range or ask our Perth team for help.
Wave 300XL 50m CableWAVE Line
20 diagram viewsExplore the components
Perth teamHelp with the match
Model reference / 99997001-AU-50MInside your cleaner

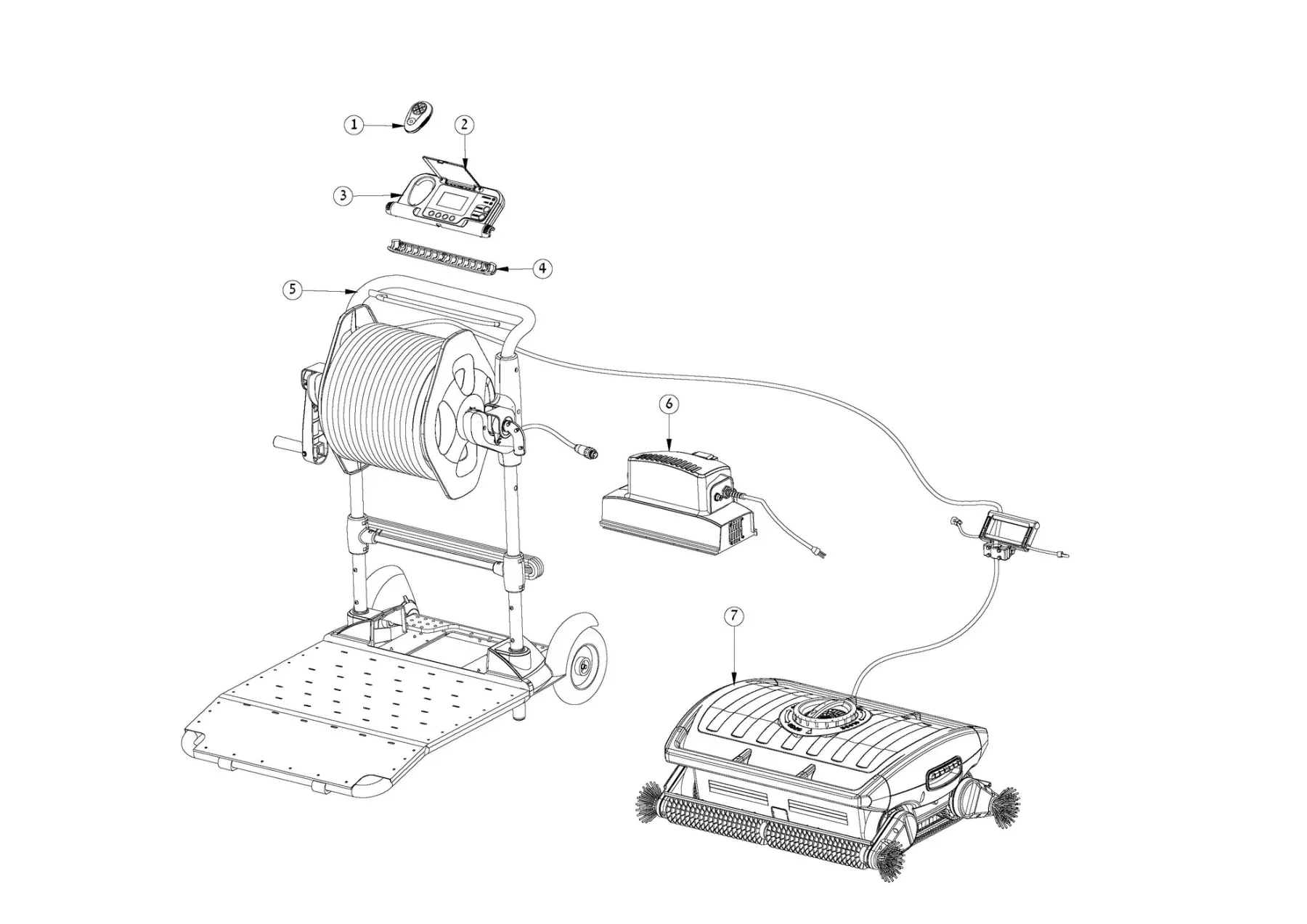

Find it in the breakdown.
Use the numbered drawing and select the matching reference from the parts list. Have your serial number handy to check the right version.
Explore more component diagrams
Select a reference from the parts list to identify the numbered component. Zoom in for detail and drag to move the drawing.
Checking current PRP prices and availability…
Choose a part
Follow the reference.
The part number and available purchase or enquiry options will appear here.
Every listed reference
The Wave 300XL 50m Cable parts list.
Model 99997001-AU-50M. A diagram reference identifies the component; the part number identifies the replacement. Quantity is the number you wish to order.
Browse all 167 part references
| Ref. | Part number / description | Order or enquire |
|---|---|---|
| 9995412-ASSYRCU Wave 200/300 | Enquire about this part | |
| 9991039-ASSYMMI Display Cover – Assy | Enquire about this part | |
| 9995993-ASSYTool: Wave Man Machine Interface | Enquire about this part | |
| 9980490Tool: Wave – Mmi Omega | Enquire about this part | |
| 9996088-ASSYCaddy (Wave 200/300) | Enquire about this part | |
| 3300550Screw M5X50 DIN7985A A2 FORM H | Enquire about this part | |
| 3516471Wave – Circlip 10mm | Enquire about this part | |
| 3300516Screw M5 x 16 DIN 7985A A2 Form H | Enquire about this part | |
| 9991726Caddy Sub (Wave) Cable Holder | Enquire about this part | |
| 9991724Caddy Sub (Wave) Reel Holder R | Enquire about this part | |
| 9991725Caddy Sub (Wave) Reel Holder L | Enquire about this part | |
| 9980320Caddy Sub (Wave) Wheel Cover* | Enquire about this part | |
| 4901641-ASSYCaddy Sub (Wave) Wheel+Bearings | Enquire about this part | |
| 9993072Bearing + Holder Assy IGUS Wave | Enquire about this part | |
| 3390515Caddy Sub (Wave) Caddy Legs Cork | Enquire about this part | |
| 3967020Caddy Sub (Wave) Front Rubber Pad | Enquire about this part | |
| 99956026AU-ASSYPower Supply Wave 200/300 AU (2017) | Enquire about this part | |
| 3379410-AScrew WN1412 A2 KA40X10 | Enquire about this part | |
| 3379212Screw KA30X12 | Enquire about this part | |
| 3379440-AScrew KA50X12 A2 WN1412 (Retail) | Enquire about this part | |
| 5102002Switch Cover Kit (For PSU) | Enquire about this part | |
| 1863230LFSwitch Wave 5A for PS-230V | Enquire about this part | |
| 9991189LFCable Loom PSU AC Wave 200 | Enquire about this part | |
| 9991247LFCable – Power Supply Wave AU | Enquire about this part | |
| 5890034LFNut for MMI Socket | Enquire about this part | |
| 5020016Wave PS Amphenol Socket | Enquire about this part | |
| 5020017Wave PS Amphenol Socket Cover | Enquire about this part | |
| 3860221Oring for PS Cable 22-1.5 | Enquire about this part | |
| 9991185LFCable – Power Supply MMI Connector | Enquire about this part | |
| 3390223Cover plug for frame | Enquire about this part | |
| 9991729Amphenol Kit for Wave PS | Enquire about this part | |
| 9991176LFCable Loom PSU DC Wave 200 | Enquire about this part | |
| 5645035-ASSYPower Pack for PSU (Wave 200 & 300) | Enquire about this part | |
| 9991177LFCable Loom PSU DC In Wave 200 | Enquire about this part | |
| 9982472PS Bottom Plate | Enquire about this part | |
| 99951089-ASSYElectronic Card PWS Wave 200 | Enquire about this part | |
| WAVE 300 – CATALOG KIT | Enquire about this part | |
| WAVE 300 TOP COVER – CATALOG KIT | Enquire about this part | |
| 9980364Wave – Main Locker | Enquire about this part | |
| 3862258Top Cover O-ring | Enquire about this part | |
| 9980412Outer Casing Wave – Top Cover | Enquire about this part | |
| 9980365Wave – Locking Adaptor | Enquire about this part | |
| 9980400Impeller Tube – Wave | Enquire about this part | |
| 9980310Outer Casing Wave 300 – Top Body | Enquire about this part | |
| 9980370Handle Wave Side | Enquire about this part | |
| 99952070-ASSYWave – Top Cover Assy | Enquire about this part | |
| 9980364Wave – Main Locker | Enquire about this part | |
| 3862258Top Cover O-ring | Enquire about this part | |
| 9980412Outer Casing Wave – Top Cover | Enquire about this part | |
| 9980365Wave – Locking Adaptor | Enquire about this part | |
| 9991037-ASSYWave – Top Body + Bushung Assy | Enquire about this part | |
| 3305030-AScrew KA50X30 (Retail) | Enquire about this part | |
| 9980310Outer Casing Wave 300 – Top Body | Enquire about this part | |
| 9980370Handle Wave Side | Enquire about this part | |
| WAVE 300 CABLE – CATALOG KIT | Enquire about this part | |
| 9980403Wave Grommet | Enquire about this part | |
| 99960087Float Assy For Cable Wave | Enquire about this part | |
| 9995810-DIYCable Dyn 43m Assy (WaveXL) | Enquire about this part | |
| 5000017Amphenol Plug | Enquire about this part | |
| 9991020-ASSYWave – Pulling Handle Assy | Enquire about this part | |
| 9991042-ASSYNylonString + FastenRings Assy | Enquire about this part | |
| 9980394Wave – Cable Handle | Enquire about this part | |
| 3506799Circlip Dia.8Mm A2 | Enquire about this part | |
| 5581002Shaft Wave Cable Handle | Enquire about this part | |
| 9980393Wave – Cable Handle -Upper Part | Enquire about this part | |
| 9980392Wave – Cable Handle -Lower Part | Enquire about this part | |
| 3354020-AScrew KA40X20 (Retail) | Enquire about this part | |
| 99960087Float Assy For Cable Wave | Enquire about this part | |
| 9980403Wave Grommet | Enquire about this part | |
| 9991274Retrofit For Cable Con Wave | Enquire about this part | |
| 1811602LFCable Crimp 10-12# 20A 3.18 | Enquire about this part | |
| 9985028Washer Plastic 9.5mm X 2mm | Enquire about this part | |
| 9985048Cable Conn Three Pin | Enquire about this part | |
| 1811404Cable Connector | Enquire about this part | |
| 9995809-DIYCable Dyn 50m Assy (WaveXL) | Enquire about this part | |
| 9991274Retrofit For Cable Con Wave | Enquire about this part | |
| 1811602LFCable Crimp 10-12# 20A 3.18 | Enquire about this part | |
| 9985028Washer Plastic 9.5mm X 2mm | Enquire about this part | |
| 9985048Cable Conn Three Pin | Enquire about this part | |
| 1811404Cable Connector | Enquire about this part | |
| 9991042-ASSYNylonString + FastenRings Assy | Enquire about this part | |
| 9980394Wave – Cable Handle | Enquire about this part | |
| 9991020-ASSYWave – Pulling Handle Assy | Enquire about this part | |
| 9991042-ASSYNylonString + FastenRings Assy | Enquire about this part | |
| 9980394Wave – Cable Handle | Enquire about this part | |
| 3506799Circlip Dia.8Mm A2 | Enquire about this part | |
| 5581002Shaft Wave Cable Handle | Enquire about this part | |
| 9980393Wave – Cable Handle -Upper Part | Enquire about this part | |
| 9980392Wave – Cable Handle -Lower Part | Enquire about this part | |
| 3354020-AScrew KA40X20 (Retail) | Enquire about this part | |
| 3506799Circlip Dia.8Mm A2 | Enquire about this part | |
| 5581002Shaft Wave Cable Handle | Enquire about this part | |
| 9980393Wave – Cable Handle -Upper Part | Enquire about this part | |
| 9980392Wave – Cable Handle -Lower Part | Enquire about this part | |
| 5000017Amphenol Plug | Enquire about this part | |
| 3354020-AScrew KA40X20 (Retail) | Enquire about this part | |
| 9980395Wave – Cable Omega | Enquire about this part | |
| 9985262Impeller – Wave 300 | Enquire about this part | |
| MOTOR UNIT WAVE – CATALOG KIT | Enquire about this part | |
| 99953056-ASSYMotor Unit Wave 300 Assy | Enquire about this part | |
| 99953056-EXMotor Unit Wave 300 Ex | Enquire about this part | |
| 6250937Wave – Side Float Small | Enquire about this part | |
| 9980402Wave – Side Float | Enquire about this part | |
| 9991012Wave – Suction Tube | Enquire about this part | |
| 9980363Non return flap for Wave XL tu | Enquire about this part | |
| FILTER BAGS WAVE – CATALOG KIT | Enquire about this part | |
| 9991402Filter Bag Wave 70m + Slide | Enquire about this part | |
| 9991403Filter Bag Wave Coarse + Slide | Enquire about this part | |
| 9991401Filter Bag Wave + Slide | Enquire about this part | |
| 9991443-ASSYFilter Bag Disposable Wave 10 Pack | Enquire about this part | |
| 9991720-ASSYWave Navigation Box Assy | Enquire about this part | |
| 9991041-ASSYWave – Track Tension Base Assy | Enquire about this part | |
| WAVE 300 ARM BRUSH – CATALOG KIT | Enquire about this part | |
| 9991014-ASSYWave – Brush Arm Assy | Enquire about this part | |
| 9980312Wave – Acetal Washer 29-11 12mm (2017) | Enquire about this part | |
| 9991314Wheel Assy Wave Short Shaft 12mm (2017) | Enquire about this part | |
| 9980311Bearing Cover Wave (2017) | Enquire about this part | |
| 9991316Bearing + Holder Assy IGUS Wave (2017) | Enquire about this part | |
| 9980313Wave – Coupling Adaptor (2017) | Enquire about this part | |
| 9980390Wave – Outer Ring With Pins | Enquire about this part | |
| 9980391Wave – Pu Adaptor | Enquire about this part | |
| 9980389Wave – Coupling Adaptor 8 mm | Enquire about this part | |
| 9991015-ASSYWave – Brush Arm Base Assy | Enquire about this part | |
| 5580372Bushing – Wheel Wave 36 | Enquire about this part | |
| 9980382Wave – Spurwheel – 26 | Enquire about this part | |
| 9980383Wave – Spurwheel – 36 | Enquire about this part | |
| 9980384Wave – Spurwheel – 56 | Enquire about this part | |
| 5580372Bushing – Wheel Wave 36 | Enquire about this part | |
| 9980382Wave – Spurwheel – 26 | Enquire about this part | |
| 9980383Wave – Spurwheel – 36 | Enquire about this part | |
| 9980384Wave – Spurwheel – 56 | Enquire about this part | |
| 9991315Wheel Assy Wave Long Shaft 12mm (2017) | Enquire about this part | |
| 5580634WaveRing Stopp. for WheelShaft 12mm (2017) | Enquire about this part | |
| 9991312Wave XL Track Tension Wheel | Enquire about this part | |
| 9980396Wave – Vertical Pariting Net | Enquire about this part | |
| 9980397Wave – Bottom Net | Enquire about this part | |
| 3889201Wave XL Belt (2020) | Enquire about this part | |
| 3889200Wave XL Belt (2017) | Enquire about this part | |
| 9980342Track Side Vacuum Closing | Enquire about this part | |
| 9993301-ASSYWave-Main Body-Bottom+Bushings | Enquire about this part | |
| 3315016Screw KA40X14 WN1413 A4 | Enquire about this part | |
| 3354020-AScrew KA40X20 (Retail) | Enquire about this part | |
| 9980343Wave 300 Stainless Arc Stopper | Enquire about this part | |
| 9980378Non Return Diaphragm Wave | Enquire about this part | |
| 9980343Wave 300 Stainless Arc Stopper | Enquire about this part | |
| 9991013Wave – Bumper Assy | Enquire about this part | |
| 9980378Non Return Diaphragm Wave | Enquire about this part | |
| 5580021Wave 300 Stainless Arc For Brush* | Enquire about this part | |
| 6100917Wave – PVC Tube For Brush | Enquire about this part | |
| 9980385Wave-Adaptor For Brush Spindle | Enquire about this part | |
| 5590054-ASSYBrush For Side – Wave | Enquire about this part | |
| 9982410Brush Wave – PE Brush | Enquire about this part | |
| 9980341LongWasherSpacer For Tensioner | Enquire about this part | |
| 9992301Screw – Wave Screws Kit | Enquire about this part | |
| 3379410-AScrew WN1412 A2 KA40X10 | Enquire about this part | |
| 3305030-AScrew KA50X30 (Retail) | Enquire about this part | |
| 3154414-AScrew M4X14 – 7985 Retail | Enquire about this part | |
| 3374111Screw Tuf A2 Form – H M4 x 10 | Enquire about this part | |
| 3105580Screw M5x80 A2 | Enquire about this part | |
| 3105550Screw M5x50 A2 Din912a | Enquire about this part | |
| 3500005Nut M5 A2 | Enquire about this part | |
| 3315016Screw KA40X14 WN1413 A4 | Enquire about this part | |
| 3101408Screw M4X8 DIN 965 A2 | Enquire about this part | |
| 3354020-AScrew KA40X20 (Retail) | Enquire about this part | |
| 3509350Nut M5 A2 DIN 985 | Enquire about this part | |
| 3379450-AScrew KA40X12 | Enquire about this part | |
| 3300516Screw M5 x 16 DIN 7985A A2 Form H | Enquire about this part | |
| 3379440-AScrew KA50X12 A2 WN1412 (Retail) | Enquire about this part | |
| 3506799Circlip Dia.8Mm A2 | Enquire about this part | |
| 9992303Screw – Wave Screws Kit Top Body | Enquire about this part | |
| 3305050-AScrew A2 WN1412 KA50X50 (Retail) | Enquire about this part | |
| 9993191Upgrade Kit Wave XL Drive System | Enquire about this part | |
| 9993192-ASSYWave Preventative Maintenance Kit (2019) | Enquire about this part |
Local matching help
Not sure which version?
Send your cleaner model, serial number and a photo of the part. Our Wangara and Jandakot team can help you find the right match.
