PRP / Zodiac robotic cleaner parts
Zodiac QT1050 parts.
See how it fits.
Explore the manufacturer’s breakdown. Select a numbered part to find its reference, check current prices and availability, then order from our range or ask our Perth team for help.
Model reference / WR000386Inside your cleaner

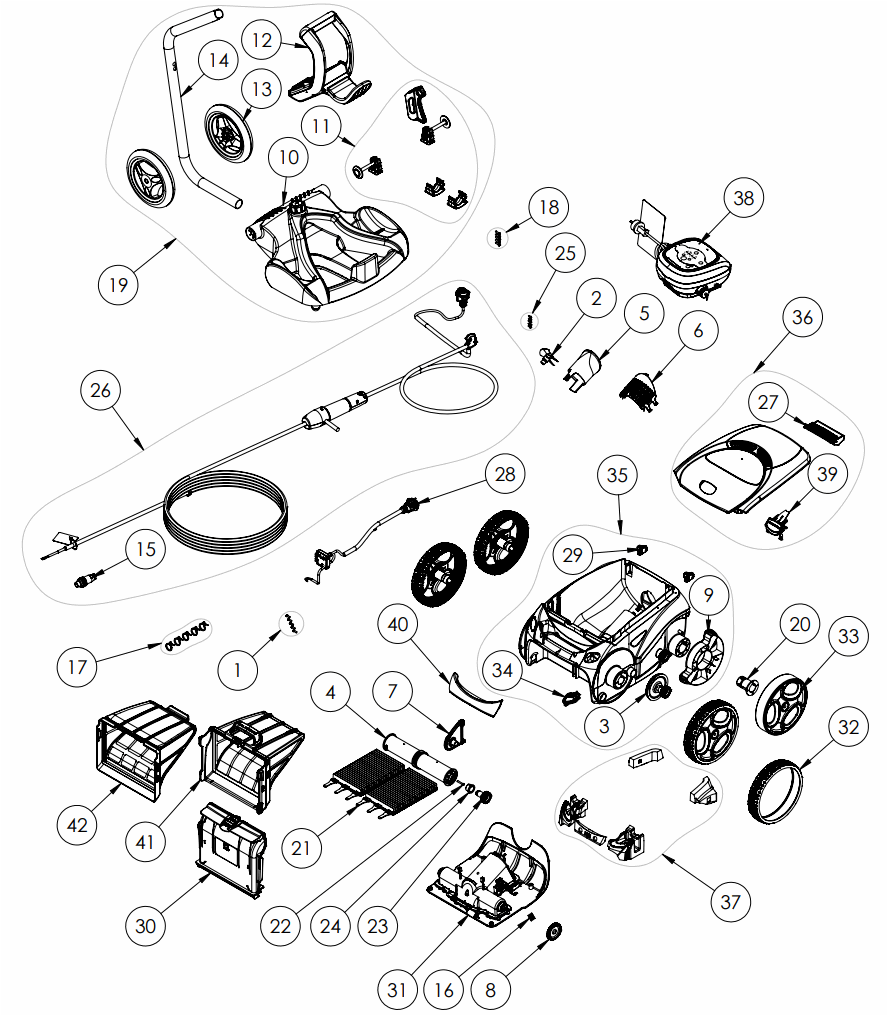

Find it in the breakdown.
Select a numbered reference in the drawing or search the parts list. Have your serial number handy to check the right version.
Checking current PRP prices and availability…
Choose a part
Follow the reference.
The part number and available purchase or enquiry options will appear here.
Every listed reference
The QT1050 parts list.
Model WR000386. A diagram reference identifies the component; the part number identifies the replacement. Unavailable references are enquiry-only. Confirmed discontinued parts are labelled and cannot be ordered online.
Browse all 42 part references
| Ref. | Part number / description | Order or enquire |
|---|---|---|
| R0865400MOTOR BLOCK TYPE 2Complete cleaner | $617.50 Available to order | |
| R0726600C18M SWIVEL CABLE RKITComplete cleaner | $505.25 Available to order | |
| R0891000CONTROL BOX VR TYPE 5 QT1000Complete cleaner | $431.20 Available on backorder | |
| R0863300SENSOR BLOCK ASSEMBLYComplete cleaner | $376.90 Available on backorder | |
| R0609100VORTEX TROLLEY COMPLETEComplete cleaner | $373.40 Available on backorder | |
| R0869600COMPLETE COVER BYPASS VR WHITEComplete cleaner | $235.70 Available on backorder | |
| R0913300FILTER VR 150M-DUALComplete cleaner | $162.25 Available on backorder | |
| R0913400OVER FILTER VR 60M-DUALComplete cleaner | $162.25 Available on backorder | |
| R0564800CADY BASE FOR VORTEXComplete cleaner | $113.30 Available on backorder | |
| R0565000CADDY HANDLEComplete cleaner | $95.50 Available on backorder | |
| R0565200CADDY TUBEComplete cleaner | $73.25 Available on backorder | |
| R0565100CADDY WHEELComplete cleaner | $61.65 Available on backorder | |
| R0565600FLOATING CABLE PLUGComplete cleaner | $59.55 Available on backorder | |
| R0865500TYRE-BLACK R7021Complete cleaner | $59.40 Available on backorder | |
| R0864900ROLLER BRUSH EVOLUX (SET OF 2)Complete cleaner | $53.65 Available on backorder | |
| R0517400BRUSH ROLLER VORTEX SET OF 2Complete cleaner | $52.90 Available to order | |
| R0865100FILTER CANISTER SUPPORT VRComplete cleaner | $52.80 Available on backorder | |
| R0564900CADDY ACCESSORIESComplete cleaner | $41.20 Available on backorder | |
| R0866800WHEEL BLACKComplete cleaner | $35.70 Available on backorder | |
| R0638800VX55 4WD BRUSH SET OF 2Complete cleaner | $33.65 Available to order | |
| R0863200BACK COVER ASSEMBLYComplete cleaner | $27.10 Available on backorder | |
| R0517200TRANSMISSION KITComplete cleaner | $23.45 Available on backorder | |
| R0891100COVER LATCH VR O ASTRALComplete cleaner | $19.20 Available on backorder | |
| R0517500FLOW OUTLET KITComplete cleaner | $18.85 Available to order | |
| R0540300WHEEL COVERComplete cleaner | $18.55 Available on backorder | |
| R0517000PROPELLER ZODIACComplete cleaner | $14.70 Available on backorder | |
| R0517600MOTOR SCREENComplete cleaner | $12.60 Available on backorder | |
| R0636700BEARING-WHEEL VORTEXComplete cleaner | $10.50 Available to order | |
| R0518800DRIVE GEAR SET OF 2 VX55 4WDComplete cleaner | $9.45 Available to order | |
| R0567800MOTOR BLOCK SHAFT PIN 5PKComplete cleaner | $9.20 Available on backorder | |
| R0567900FLOATING CABLE CLAMP 5PKComplete cleaner | $9.20 Available on backorder | |
| R0639100BEARING-OUTER BEARING 2Complete cleaner | $9.20 Available to order | |
| R063900017 TEETH GEAR PACK OF 2Complete cleaner | $7.35 Available to order | |
| R0516700SCREW 4-12 SET OF 5Complete cleaner | $4.05 Available on backorder | |
| R0608500SCREW 4 16MM SET OF 5Complete cleaner | $4.05 Available on backorder | |
| R0638900SCREW 4-25MM SET OF 5Complete cleaner | $4.05 Available on backorder | |
| R0639200SCREW 2.9 9.5MM SET OF 5Complete cleaner | $4.05 Available on backorder | |
| R0867100SENSOR WINDOWComplete cleaner | Unavailable — contact us for options Enquire about this part | |
| R0869500MAIN HOUSING VR O WHITEComplete cleaner | Unavailable — contact us for options Enquire about this part | |
| R0870100FLOATComplete cleaner | Unavailable — contact us for options Enquire about this part | |
| R0869900HANDLE VR O WHITE ZComplete cleaner | Unavailable — contact us for options Enquire about this part | |
| R0518701ROLLER SUPPORT WHITEComplete cleaner | Unavailable — contact us for options Enquire about this part |
Local matching help
Not sure which version?
Send your cleaner model, serial number and a photo of the part. Our Wangara and Jandakot team can help you find the right match.
