PRP / Zodiac robotic cleaner parts
Zodiac CX50 parts.
See how it fits.
Explore the manufacturer’s breakdown. Select a numbered part to find its reference, check current prices and availability, then order from our range or ask our Perth team for help.
Model reference / WR000568Inside your cleaner

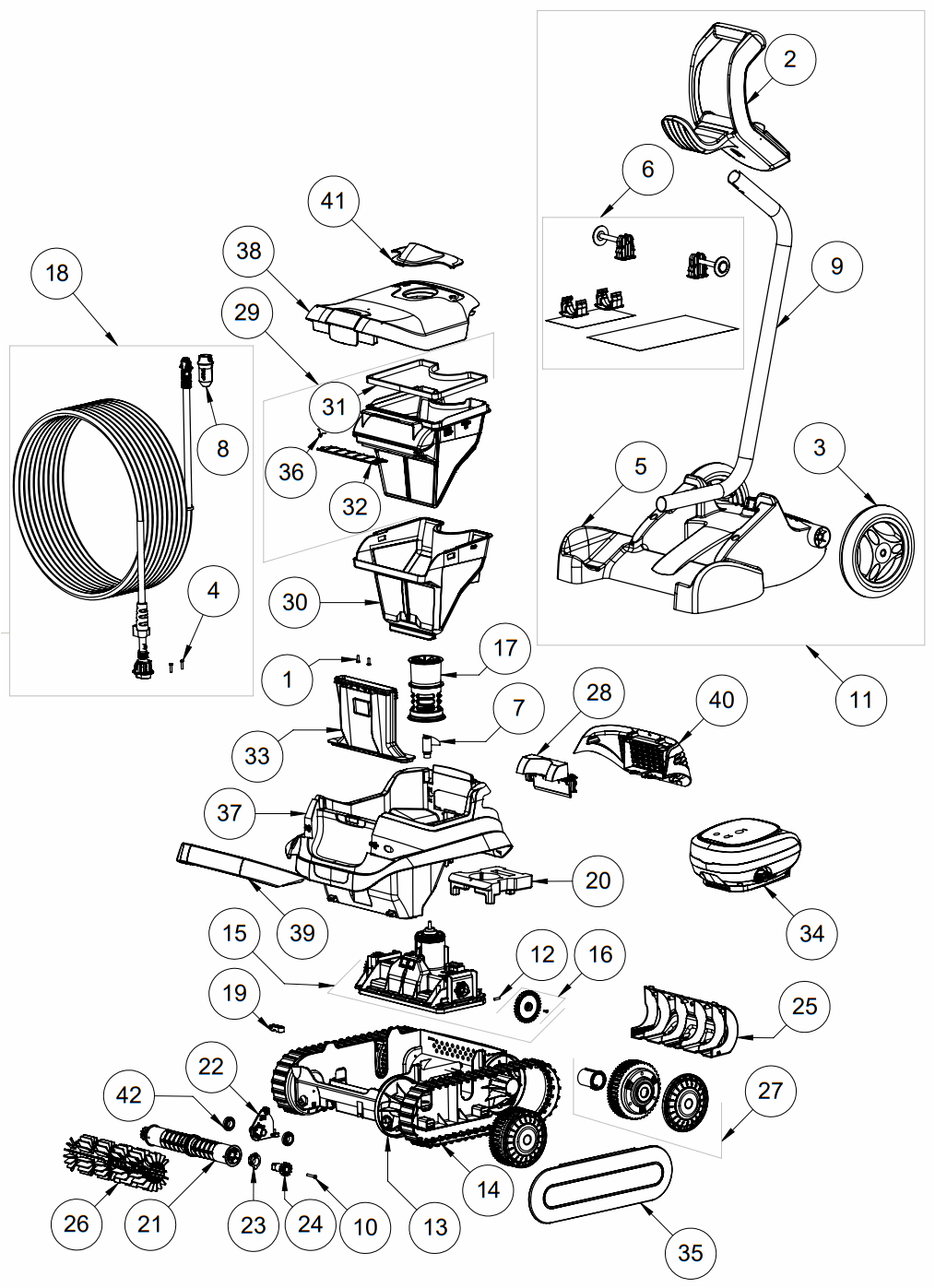

Find it in the breakdown.
Select a numbered reference in the drawing or search the parts list. Have your serial number handy to check the right version.
Checking current PRP prices and availability…
Choose a part
Follow the reference.
The part number and available purchase or enquiry options will appear here.
Every listed reference
The CX50 parts list.
Model WR000568. A diagram reference identifies the component; the part number identifies the replacement. Unavailable references are enquiry-only. Confirmed discontinued parts are labelled and cannot be ordered online.
Browse all 42 part references
| Ref. | Part number / description | Order or enquire |
|---|---|---|
| R0899700CONTROL BOX CN TYPE 2 AUS APLComplete cleaner | $599.50 Available on backorder | |
| R0895400MOTOR BLOCK CN W/O LEDComplete cleaner | $566.50 Available on backorder | |
| R0639500COMPLETE TROLLEY CComplete cleaner | $356.45 Available on backorder | |
| R0895900FLOATING CABLE 18M CX40/50Complete cleaner | $342.20 Available on backorder | |
| R0897600FILTER CN 150 MICRON – DUALComplete cleaner | $139.55 Available on backorder | |
| R0898100OVER FILTER CN 60 MICRON-DUALComplete cleaner | $139.55 Available on backorder | |
| R0632800COMPLETE LOWER PART TROLLEY C.Complete cleaner | $113.30 Available on backorder | |
| R0565000CADDY HANDLEComplete cleaner | $95.50 Available on backorder | |
| R0895200TRACK CN (QTY 2 )Complete cleaner | $78.30 Available on backorder | |
| R0634400TROLLEY TUBE C.Complete cleaner | $69.60 Available on backorder | |
| R0565100CADDY WHEELComplete cleaner | $61.65 Available on backorder | |
| R0902200LONG FLANGE CN BLACK (QTY 2 )Complete cleaner | $40.80 Available on backorder | |
| R0895700FLOW OUTLET CNComplete cleaner | $39.55 Available on backorder | |
| R0632900TROLLEY C ACCESSORIES CX35Complete cleaner | $39.15 Available on backorder | |
| R0896900BRUSH SCRUBBER CN GREY (QTY 2)Complete cleaner | $33.65 Available on backorder | |
| R0898300CANISTER SEAL CNComplete cleaner | $30.00 Available on backorder | |
| R0897300WHEEL-CN BLACKComplete cleaner | $29.35 Available on backorder | |
| R0897400REAR FLAP DOOR KIT CNComplete cleaner | $22.05 Available on backorder | |
| R0896400BRUSH ROLLER CN (QTY 2)Complete cleaner | $17.10 Available on backorder | |
| R0896800BRUSH COVER CNEXTComplete cleaner | $16.80 Available on backorder | |
| R0896300CHASSIS FLOAT CNComplete cleaner | $11.35 Available on backorder | |
| R0657900MOTOR BLOCK SHAFT PIN 4Complete cleaner | $10.00 Available on backorder | |
| R0895600DRIVE GEAR KIT (QTY 2)Complete cleaner | $8.85 Available on backorder | |
| R0896600OUTER BEARING CN (QTY 2)Complete cleaner | $8.00 Available on backorder | |
| R0634100CONNECTOR 3PTS BODYComplete cleaner | $7.70 Available on backorder | |
| R089670012 POINT GEAR CN (QTY 2 )Complete cleaner | $7.15 Available on backorder | |
| R0898400CANISTER INLET FLAP CNComplete cleaner | $7.15 Available on backorder | |
| R0896500ROLLER SUPPORT CNComplete cleaner | $6.85 Available on backorder | |
| W79034BALL BEARINGComplete cleaner | $6.55 Available on backorder | |
| R0905500CANISTER INLET FLAP SPRING CNComplete cleaner | $6.10 Available on backorder | |
| R0633200IMPLELLER CComplete cleaner | $5.40 Available on backorder | |
| R0896200CABLE STRAIN RELIEF CNComplete cleaner | $5.15 Available on backorder | |
| R0516700SCREW 4-12 SET OF 5Complete cleaner | $4.05 Available on backorder | |
| R0638900SCREW 4-25MM SET OF 5Complete cleaner | $4.05 Available on backorder | |
| R0608500SCREW 4 16MM SET OF 5Complete cleaner | $4.05 Available on backorder | |
| R0895100LOWER HOUSING CHASIS CNComplete cleaner | Unavailable — contact us for options Enquire about this part | |
| R0898500INLET CHANNEL CNComplete cleaner | Unavailable — contact us for options Enquire about this part | |
| R1014100BODY E CX40 CX50Complete cleaner | Unavailable — contact us for options Enquire about this part | |
| R1022500COMPLETE COVER BODY E CXComplete cleaner | Unavailable — contact us for options Enquire about this part | |
| R1022600HANDLE YELLOW BODY E CXComplete cleaner | Unavailable — contact us for options Enquire about this part | |
| R1022700REAR GRID YELLOW BODY E CXComplete cleaner | Unavailable — contact us for options Enquire about this part | |
| R1022800NOZZLE YELLOW BODY E CXComplete cleaner | Unavailable — contact us for options Enquire about this part |
Local matching help
Not sure which version?
Send your cleaner model, serial number and a photo of the part. Our Wangara and Jandakot team can help you find the right match.
