PRP / Zodiac robotic cleaner parts
Zodiac QG50 parts.
See how it fits.
Explore the manufacturer’s breakdown. Select a numbered part to find its reference, check current prices and availability, then order from our range or ask our Perth team for help.
Model reference / WR000362Inside your cleaner

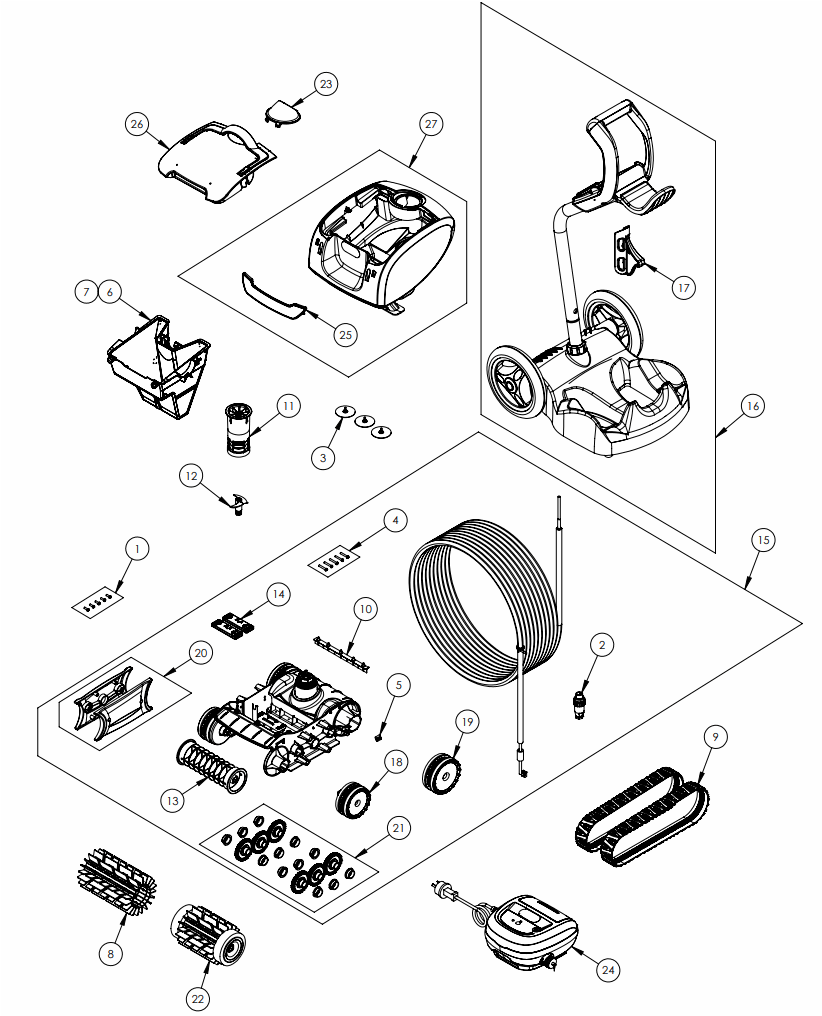

Find it in the breakdown.
Select a numbered reference in the drawing or search the parts list. Have your serial number handy to check the right version.
Checking current PRP prices and availability…
Choose a part
Follow the reference.
The part number and available purchase or enquiry options will appear here.
Every listed reference
The QG50 parts list.
Model WR000362. A diagram reference identifies the component; the part number identifies the replacement. Unavailable references are enquiry-only. Confirmed discontinued parts are labelled and cannot be ordered online.
Browse all 32 part references
| Ref. | Part number / description | Order or enquire |
|---|---|---|
| R0767400CHASSIS-COMPLETE CHASSIS TXComplete cleaner | $726.90 Available on backorder | |
| R0767600TROLLEY-TX TROLLEY COMPLETEComplete cleaner | $339.45 Available on backorder | |
| R0767600TROLLEY-TX TROLLEY COMPLETENot shown in drawing | $339.45 Available on backorder | |
| R0908900CONTROL BOX AP OPP QG50Complete cleaner | $317.90 Available on backorder | |
| R0909200COMPLETE BODY C OPPComplete cleaner | $169.30 Available on backorder | |
| R0762900FILTER TX 100 MICRONComplete cleaner | $122.60 Available on backorder | |
| R0763000FILTER TX 200 MICRONComplete cleaner | $122.60 Available on backorder | |
| R076310060 MICRON FILTER CANISTER TXNot shown in drawing | $122.60 Available on backorder | |
| R0762900FILTER TX 100 MICRONNot shown in drawing | $122.60 Available on backorder | |
| R0763000FILTER TX 200 MICRONNot shown in drawing | $122.60 Available on backorder | |
| R0909100COMPLETE COVER BODY C OPPComplete cleaner | $108.85 Available on backorder | |
| R0774900BRUSH-PVA BRUSH TXComplete cleaner | $105.60 Available on backorder | |
| R0774900BRUSH-PVA BRUSH TXNot shown in drawing | $105.60 Available on backorder | |
| R0565600FLOATING CABLE PLUGComplete cleaner | $59.55 Available on backorder | |
| R0771800WHEEL-COMPLETE FRONT TX 2Complete cleaner | $50.95 Available on backorder | |
| R0771900WHEEL-COMPLETE BACK TX 2Complete cleaner | $50.95 Available on backorder | |
| R0765600TRACKS TXComplete cleaner | $42.45 Available to order | |
| R0772100COMPLETE GEAR KIT TXComplete cleaner | $42.30 Available on backorder | |
| R0764900BRUSH TXComplete cleaner | $40.75 Available on backorder | |
| R0767000HOLDER-BRUSH HOLDER TXComplete cleaner | $31.35 Available on backorder | |
| R0765800BLADE KIT TX 5PKComplete cleaner | $25.95 Available on backorder | |
| R0767100BALLAST SMALLER SET OF 2Complete cleaner | $25.95 Available on backorder | |
| R0909000HANDLE LIGHT GREY BODY C OPPComplete cleaner | $19.00 Available on backorder | |
| R0766100INTERNAL FLOW OUTLETComplete cleaner | $13.60 Available to order | |
| R0657900MOTOR BLOCK SHAFT PIN 4Complete cleaner | $10.00 Available on backorder | |
| R0633300EXHAUST VALVE C SET OF 3Complete cleaner | $9.05 Available on backorder | |
| R0891900NOZZLE- WHITEComplete cleaner | $8.90 Available on backorder | |
| R0766200IMPELLER TXComplete cleaner | $5.35 Available on backorder | |
| R0516700SCREW 4-12 SET OF 5Complete cleaner | $4.05 Available on backorder | |
| R0638900SCREW 4-25MM SET OF 5Complete cleaner | $4.05 Available on backorder | |
| R0767700TROLLEY TUBE JUNCTION TXComplete cleaner | Unavailable — contact us for options Enquire about this part | |
| R0772000FLANGES TXComplete cleaner | Unavailable — contact us for options Enquire about this part |
Local matching help
Not sure which version?
Send your cleaner model, serial number and a photo of the part. Our Wangara and Jandakot team can help you find the right match.
