PRP / Zodiac robotic cleaner parts
Zodiac FR800 parts.
See how it fits.
Explore the manufacturer’s breakdown. Select a numbered part to find its reference, check current prices and availability, then order from our range or ask our Perth team for help.

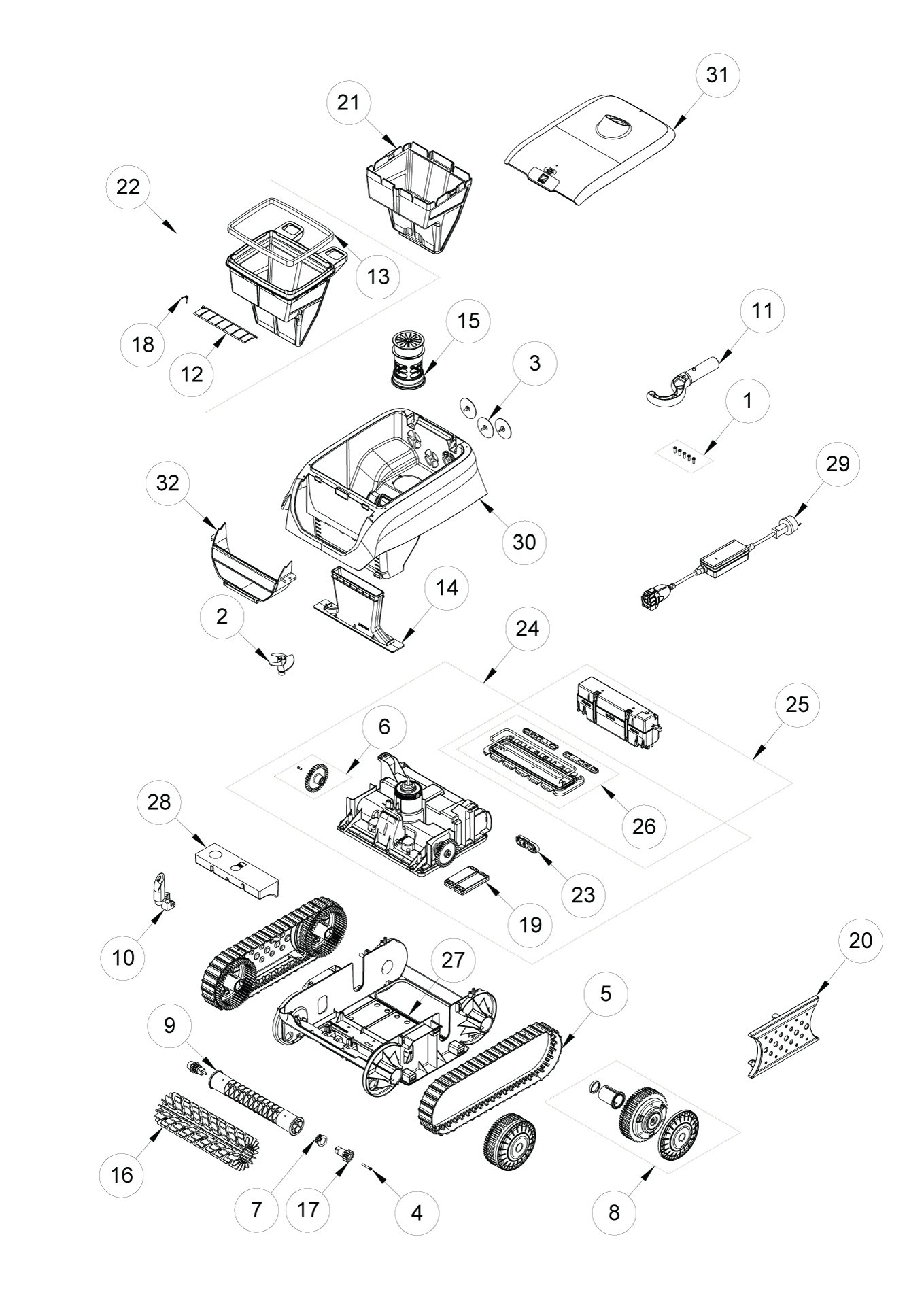

Model reference / WR000631Inside your cleaner
Find it in the breakdown.
Select a numbered reference in the drawing or search the parts list. Have your serial number handy to check the right version.
Checking current PRP prices and availability…
Choose a part
Follow the reference.
The part number and available purchase or enquiry options will appear here.
Every listed reference
The FR800 parts list.
Model WR000631. A diagram reference identifies the component; the part number identifies the replacement. Unavailable references are enquiry-only. Confirmed discontinued parts are labelled and cannot be ordered online.
Browse all 33 part references
| Ref. | Part number / description | Order or enquire |
|---|---|---|
| R1087000COMP BLOCK NO BATTERY MPPC FULComplete cleaner | $617.50 Available on backorder | |
| R1087200BATTERY BLOCK MPPCComplete cleaner | $514.00 Available on backorder | |
| R1088500BODY G CN NAVY BLUE W/O LEDComplete cleaner | $121.35 Available on backorder | |
| R1087800CHARGER 1A AUS MPPCComplete cleaner | $97.10 Available on backorder | |
| R0895200TRACK CN (QTY 2 )Complete cleaner | $78.30 Available on backorder | |
| R1083400FINE FILTER SMALL CN 60MComplete cleaner | $75.15 Available on backorder | |
| R1083600COARSE FILTER SMALL CNComplete cleaner | $75.15 Available on backorder | |
| R1088600COVER BODY G CLEAR ZODIACComplete cleaner | $75.15 Available on backorder | |
| R1087400CHASSIS MPP CORDLESSComplete cleaner | $68.20 Available on backorder | |
| R1087300BATTERY DOOR SILDERS ORINGComplete cleaner | $43.35 Available on backorder | |
| R1000200LARGE BRUSH CLASSIC LIGHT GREYComplete cleaner | $33.55 Available on backorder | |
| R0897300WHEEL-CN BLACKComplete cleaner | $29.35 Available on backorder | |
| R1000000INLET CHANNEL SMALL CNComplete cleaner | $25.45 Available on backorder | |
| R1088900HANDLE NAVY BLUE YELLOW BODY GComplete cleaner | $20.85 Available on backorder | |
| R1086900POWER SWITCH MPPCComplete cleaner | $20.25 Available on backorder | |
| R1065900BALLAST LARGER (SET OF 2)Complete cleaner | $18.95 Available on backorder | |
| R1071100FLANGE BODY D RAL 7021 CN *2Complete cleaner | $18.40 Available on backorder | |
| R0999900SEAL FILTER BODY F CNComplete cleaner | $16.20 Available on backorder | |
| R1000100FLOW OUTLET SMALL CNComplete cleaner | $16.20 Available on backorder | |
| R0940400LARGE BRUSH ROLLER CNComplete cleaner | $16.20 Available on backorder | |
| R0972500HOOK FREERIDERComplete cleaner | $15.60 Available on backorder | |
| R0999800FLAP FILTER BODY F CNComplete cleaner | $15.60 Available on backorder | |
| R0972200FRONT CAP FREERIDERComplete cleaner | $10.45 Available on backorder | |
| R1087500FRONT FLOAT MPP CORDLESSComplete cleaner | $10.45 Available on backorder | |
| R0633300EXHAUST VALVE C SET OF 3Complete cleaner | $9.05 Available on backorder | |
| R0895600DRIVE GEAR KIT (QTY 2)Complete cleaner | $8.85 Available on backorder | |
| R0896600OUTER BEARING CN (QTY 2)Complete cleaner | $8.00 Available on backorder | |
| R1005500GEAR BRUSH MACHINED CN (*2)Complete cleaner | $6.85 Available on backorder | |
| R0633200IMPLELLER CComplete cleaner | $5.40 Available on backorder | |
| R1008400SPRING FOR FILTER TORBATComplete cleaner | $5.25 Available on backorder | |
| R0516700SCREW 4-12 SET OF 5Complete cleaner | $4.05 Available on backorder | |
| R0638900SCREW 4-25MM SET OF 5Complete cleaner | $4.05 Available on backorder | |
| R1088200Spare part — description unavailableNot shown in drawing | Unavailable — contact us for options Enquire about this part |
Local matching help
Not sure which version?
Send your cleaner model, serial number and a photo of the part. Our Wangara and Jandakot team can help you find the right match.
