Dolphin Wave 200 parts.
See how it fits.
Explore your cleaner, one assembly at a time. Select a numbered part to find its reference, order from our range or ask our Perth team for help.
Model reference / 99997200-AUInside your cleaner

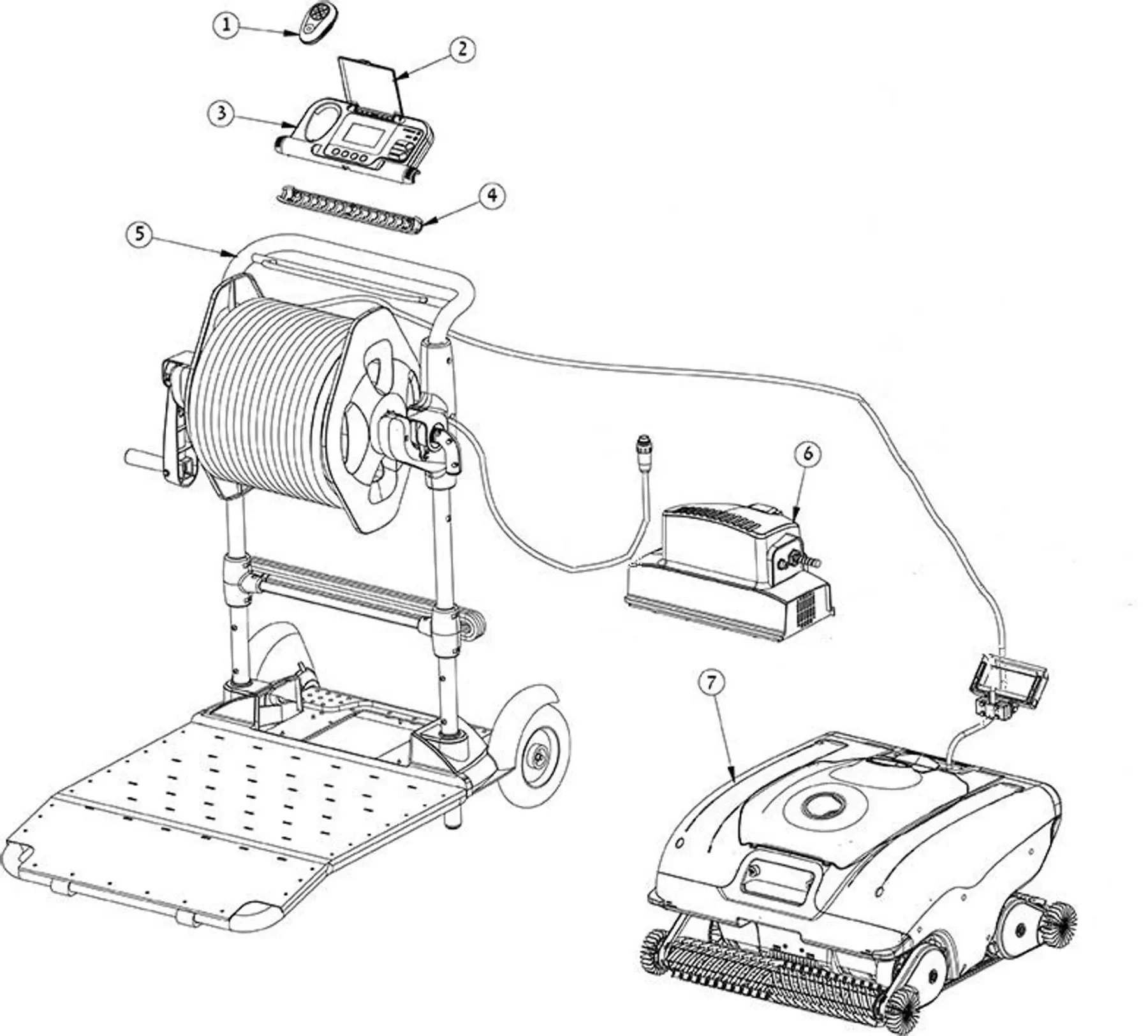

Find it in the breakdown.
Use the numbered drawing and select the matching reference from the parts list. Have your serial number handy to check the right version.
Select a reference from the parts list to identify the numbered component. Zoom in for detail and drag to move the drawing.
Checking current PRP prices and availability…
Choose a part
Follow the reference.
The part number and available purchase or enquiry options will appear here.
Every listed reference
The Wave 200 parts list.
Model 99997200-AU. A diagram reference identifies the component; the part number identifies the replacement. Quantity is the number you wish to order.
Browse all 169 part references
| Ref. | Part number / description | Order or enquire |
|---|---|---|
| 9995412-ASSYRCU Wave 200/300Wave 200 | Ask us about this part Enquire about this part | |
| 9991039-ASSYMMI Display Cover – AssyWave 200 | Ask us about this part Enquire about this part | |
| 9995993-ASSYTool: Wave Man Machine InterfaceWave 200 | Ask us about this part Enquire about this part | |
| 9980490Tool: Wave – Mmi OmegaWave 200 | Ask us about this part Enquire about this part | |
| 9996088-ASSYCaddy (Wave 200/300)Wave 200 | Ask us about this part Enquire about this part | |
| 3300550Screw M5X50 DIN7985A A2 FORM HCaddy (Wave 200/300) | Ask us about this part Enquire about this part | |
| 3516471Wave – Circlip 10mmCaddy (Wave 200/300) | Ask us about this part Enquire about this part | |
| 3300516Screw M5 x 16 DIN 7985A A2 Form HCaddy (Wave 200/300) | Ask us about this part Enquire about this part | |
| 9991726Caddy Sub (Wave) Cable HolderCaddy (Wave 200/300) | Ask us about this part Enquire about this part | |
| 9991724Caddy Sub (Wave) Reel Holder RCaddy (Wave 200/300) | Ask us about this part Enquire about this part | |
| 9991725Caddy Sub (Wave) Reel Holder LCaddy (Wave 200/300) | Ask us about this part Enquire about this part | |
| 9980320Caddy Sub (Wave) Wheel Cover*Caddy (Wave 200/300) | Ask us about this part Enquire about this part | |
| 4901641-ASSYCaddy Sub (Wave) Wheel+BearingsCaddy (Wave 200/300) | Ask us about this part Enquire about this part | |
| 9993072Bearing + Holder Assy IGUS WaveCaddy (Wave 200/300) | Ask us about this part Enquire about this part | |
| 3390515Caddy Sub (Wave) Caddy Legs CorkCaddy (Wave 200/300) | Ask us about this part Enquire about this part | |
| 3967020Caddy Sub (Wave) Front Rubber PadCaddy (Wave 200/300) | Ask us about this part Enquire about this part | |
| 99956026AU-ASSYPower Supply Wave 200/300 AU (2017)Wave 200 | Ask us about this part Enquire about this part | |
| 5102002Switch Cover Kit (For PSU)Power Supply Wave 200/300 AU (2017) | Ask us about this part Enquire about this part | |
| 9991189LFCable Loom PSU AC Wave 200Power Supply Wave 200/300 AU (2017) | Ask us about this part Enquire about this part | |
| 9991200LFCable – Power Supply Wave AU*Power Supply Wave 200/300 AU (2017) | Ask us about this part Enquire about this part | |
| 5890034LFNut for MMI SocketPower Supply Wave 200/300 AU (2017) | Ask us about this part Enquire about this part | |
| 9986009Wave PS CasingPower Supply Wave 200/300 AU (2017) | Ask us about this part Enquire about this part | |
| 5020016Wave PS Amphenol SocketPower Supply Wave 200/300 AU (2017) | Ask us about this part Enquire about this part | |
| 5020017Wave PS Amphenol Socket CoverPower Supply Wave 200/300 AU (2017) | Ask us about this part Enquire about this part | |
| 3860221Oring for PS Cable 22-1.5Power Supply Wave 200/300 AU (2017) | Ask us about this part Enquire about this part | |
| 9991185LFCable – Power Supply MMI ConnectorPower Supply Wave 200/300 AU (2017) | Ask us about this part Enquire about this part | |
| 3390223Cover plug for framePower Supply Wave 200/300 AU (2017) | Ask us about this part Enquire about this part | |
| 9991729Amphenol Kit for Wave PSPower Supply Wave 200/300 AU (2017) | Ask us about this part Enquire about this part | |
| 9991176LFCable Loom PSU DC Wave 200Power Supply Wave 200/300 AU (2017) | Ask us about this part Enquire about this part | |
| 5645035-ASSYPower Pack for PSU (Wave 200 & 300)Power Supply Wave 200/300 AU (2017) | Ask us about this part Enquire about this part | |
| 9991177LFCable Loom PSU DC In Wave 200Power Supply Wave 200/300 AU (2017) | Ask us about this part Enquire about this part | |
| 9982472PS Bottom PlatePower Supply Wave 200/300 AU (2017) | Ask us about this part Enquire about this part | |
| 99951089-ASSYElectronic Card PWS Wave 200Power Supply Wave 200/300 AU (2017) | Ask us about this part Enquire about this part | |
| 3379410-AScrew WN1412 A2 KA40X10Power Supply Wave 200/300 AU (2017) | Ask us about this part Enquire about this part | |
| 3379212Screw KA30X12Power Supply Wave 200/300 AU (2017) | Ask us about this part Enquire about this part | |
| 3379440-AScrew KA50X12 A2 WN1412 (Retail)Power Supply Wave 200/300 AU (2017) | Ask us about this part Enquire about this part | |
| 9991323-ASSYFilter Cover Wave 200 AssyWAVE 200 | Ask us about this part Enquire about this part | |
| 3379616-AScrew KA50X16 (Retail)Filter Cover Wave 200 Assy | Ask us about this part Enquire about this part | |
| 3379450-AScrew KA40X12Filter Cover Wave 200 Assy | Ask us about this part Enquire about this part | |
| 3509350Nut M5 A2 DIN 985Filter Cover Wave 200 Assy | Ask us about this part Enquire about this part | |
| 3105580Screw M5x80 A2Filter Cover Wave 200 Assy | Ask us about this part Enquire about this part | |
| 3600526Washer Flat M4Filter Cover Wave 200 Assy | Ask us about this part Enquire about this part | |
| 9982412Wave HoodFilter Cover Wave 200 Assy | Ask us about this part Enquire about this part | |
| 9991331-ASSYButton Cover Assy Wave 200Filter Cover Wave 200 Assy | Ask us about this part Enquire about this part | |
| 9982481Hood Axle RFilter Cover Wave 200 Assy | Ask us about this part Enquire about this part | |
| 9982482Hood Axle LFilter Cover Wave 200 Assy | Ask us about this part Enquire about this part | |
| 9991325-ASSYJet Wave 200 AssyFilter Cover Wave 200 Assy | Ask us about this part Enquire about this part | |
| 3860023Jet Wave 200 SealFilter Cover Wave 200 Assy | Ask us about this part Enquire about this part | |
| 9982449WATER RELEASE FLAPFilter Cover Wave 200 Assy | Ask us about this part Enquire about this part | |
| 9982419Filter Cover plus Over MouldFilter Cover Wave 200 Assy | Ask us about this part Enquire about this part | |
| 2735610SPACER 5.2X10X30WAVE 200 | Ask us about this part Enquire about this part | |
| 9980403Wave GrommetWAVE 200 CABLE AU | Ask us about this part Enquire about this part | |
| 99960087Float Assy For Cable WaveWAVE 200 CABLE AU | Ask us about this part Enquire about this part | |
| 99958915-DIYCable Dyn 42m Assy (WaveXL)WAVE 200 CABLE AU | Ask us about this part Enquire about this part | |
| 5000017Amphenol PlugCable Dyn 42m Assy (WaveXL) | Ask us about this part Enquire about this part | |
| 9991020-ASSYWave – Pulling Handle AssyCable Dyn 42m Assy (WaveXL) | Ask us about this part Enquire about this part | |
| 9991042-ASSYNylonString + FastenRings AssyWave – Pulling Handle Assy | Ask us about this part Enquire about this part | |
| 9980394Wave – Cable HandleWave – Pulling Handle Assy | Ask us about this part Enquire about this part | |
| 3506799Circlip Dia.8Mm A2Wave – Pulling Handle Assy | Ask us about this part Enquire about this part | |
| 5581002Shaft Wave Cable HandleWave – Pulling Handle Assy | Ask us about this part Enquire about this part | |
| 9980393Wave – Cable Handle -Upper PartWave – Pulling Handle Assy | Ask us about this part Enquire about this part | |
| 9980392Wave – Cable Handle -Lower PartWave – Pulling Handle Assy | Ask us about this part Enquire about this part | |
| 3354020-AScrew KA40X20 (Retail)Wave – Pulling Handle Assy | Ask us about this part Enquire about this part | |
| 99960087Float Assy For Cable WaveCable Dyn 42m Assy (WaveXL) | Ask us about this part Enquire about this part | |
| 9980403Wave GrommetCable Dyn 42m Assy (WaveXL) | Ask us about this part Enquire about this part | |
| 9991274Retrofit For Cable Con WaveCable Dyn 42m Assy (WaveXL) | Ask us about this part Enquire about this part | |
| 1811602LFCable Crimp 10-12# 20A 3.18Retrofit For Cable Con Wave | Ask us about this part Enquire about this part | |
| 9985028Washer Plastic 9.5mm X 2mmRetrofit For Cable Con Wave | Ask us about this part Enquire about this part | |
| 9985048Cable Conn Three PinRetrofit For Cable Con Wave | Ask us about this part Enquire about this part | |
| 1811404Cable ConnectorRetrofit For Cable Con Wave | Ask us about this part Enquire about this part | |
| 9991274Retrofit For Cable Con WaveWAVE 200 CABLE AU | Ask us about this part Enquire about this part | |
| 1811602LFCable Crimp 10-12# 20A 3.18Retrofit For Cable Con Wave | Ask us about this part Enquire about this part | |
| 9985028Washer Plastic 9.5mm X 2mmRetrofit For Cable Con Wave | Ask us about this part Enquire about this part | |
| 9985048Cable Conn Three PinRetrofit For Cable Con Wave | Ask us about this part Enquire about this part | |
| 1811404Cable ConnectorRetrofit For Cable Con Wave | Ask us about this part Enquire about this part | |
| 9991042-ASSYNylonString + FastenRings AssyWAVE 200 CABLE AU | Ask us about this part Enquire about this part | |
| 9980394Wave – Cable HandleWAVE 200 CABLE AU | Ask us about this part Enquire about this part | |
| 9991020-ASSYWave – Pulling Handle AssyWAVE 200 CABLE AU | Ask us about this part Enquire about this part | |
| 9991042-ASSYNylonString + FastenRings AssyWave – Pulling Handle Assy | Ask us about this part Enquire about this part | |
| 9980394Wave – Cable HandleWave – Pulling Handle Assy | Ask us about this part Enquire about this part | |
| 3506799Circlip Dia.8Mm A2Wave – Pulling Handle Assy | Ask us about this part Enquire about this part | |
| 5581002Shaft Wave Cable HandleWave – Pulling Handle Assy | Ask us about this part Enquire about this part | |
| 9980393Wave – Cable Handle -Upper PartWave – Pulling Handle Assy | Ask us about this part Enquire about this part | |
| 9980392Wave – Cable Handle -Lower PartWave – Pulling Handle Assy | Ask us about this part Enquire about this part | |
| 3354020-AScrew KA40X20 (Retail)Wave – Pulling Handle Assy | Ask us about this part Enquire about this part | |
| 3506799Circlip Dia.8Mm A2WAVE 200 CABLE AU | Ask us about this part Enquire about this part | |
| 5581002Shaft Wave Cable HandleWAVE 200 CABLE AU | Ask us about this part Enquire about this part | |
| 9980393Wave – Cable Handle -Upper PartWAVE 200 CABLE AU | Ask us about this part Enquire about this part | |
| 9980392Wave – Cable Handle -Lower PartWAVE 200 CABLE AU | Ask us about this part Enquire about this part | |
| 5000017Amphenol PlugWAVE 200 CABLE AU | Ask us about this part Enquire about this part | |
| 3354020-AScrew KA40X20 (Retail)WAVE 200 CABLE AU | Ask us about this part Enquire about this part | |
| 9982413TOP BODY WAVE 200WAVE 200 | Ask us about this part Enquire about this part | |
| 5581021Filter Handle Wave 200FILTERS WAVE 200 | Ask us about this part Enquire about this part | |
| 9991473Filter Cartridge Ultrafine Wave 200FILTERS WAVE 200 | Ask us about this part Enquire about this part | |
| 9991474Filter Cartridge Wave 100UMFILTERS WAVE 200 | Ask us about this part Enquire about this part | |
| 9982417Filter Net CycloneFILTERS WAVE 200 | Ask us about this part Enquire about this part | |
| 99914711Non Return Value Wave 150/200FILTERS WAVE 200 | Ask us about this part Enquire about this part | |
| 9982416Filter Bucket Wave 200FILTERS WAVE 200 | Ask us about this part Enquire about this part | |
| 9991471-ASSYWave Filter CanisterFILTERS WAVE 200 | Ask us about this part Enquire about this part | |
| 3379616-AScrew KA50X16 (Retail)Wave Filter Canister | Ask us about this part Enquire about this part | |
| 5581021Filter Handle Wave 200Wave Filter Canister | Ask us about this part Enquire about this part | |
| 99914711Non Return Value Wave 150/200Wave Filter Canister | Ask us about this part Enquire about this part | |
| 9982416Filter Bucket Wave 200Wave Filter Canister | Ask us about this part Enquire about this part | |
| 3860029Seal for Filter Wave 200Wave Filter Canister | Ask us about this part Enquire about this part | |
| 9982474Canister BaseWave Filter Canister | Ask us about this part Enquire about this part | |
| 3860029Seal for Filter Wave 200FILTERS WAVE 200 | Ask us about this part Enquire about this part | |
| 9982474Canister BaseFILTERS WAVE 200 | Ask us about this part Enquire about this part | |
| 3379616-AScrew KA50X16 (Retail)FILTERS WAVE 200 | Ask us about this part Enquire about this part | |
| 3379450-AScrew KA40X12FILTERS WAVE 200 | Ask us about this part Enquire about this part | |
| 9982457Axle SupportWAVE 200 | Ask us about this part Enquire about this part | |
| 9982442Impeller Cover W200WAVE 200 | Ask us about this part Enquire about this part | |
| 9982485Impeller – Wave 200WAVE 200 | Ask us about this part Enquire about this part | |
| 9995391-ASSYMotor Suction Unit Wave 200 XLWAVE 200 | Ask us about this part Enquire about this part | |
| 9995390-ASSYMotor Drive Unit Wave 200 XLWAVE 200 | Ask us about this part Enquire about this part | |
| 9982405Wheel Adaptor Wave 200*WAVE 200 | Ask us about this part Enquire about this part | |
| 9982477Brush Wave 200WAVE 200 | Ask us about this part Enquire about this part | |
| 9991326-ASSYBumper Rear Wave 200 ASSYWAVE 200 | Ask us about this part Enquire about this part | |
| 9991720-ASSYWave Navigation Box AssyWAVE 200 | Ask us about this part Enquire about this part | |
| 9982415Side Panel 16-R Orange (Wave 200)*WAVE 200 | Ask us about this part Enquire about this part | |
| 9982428Side Brush Wave 200WAVE 200 | Ask us about this part Enquire about this part | |
| 9991328-ASSYBrush Arm + Inner Parts (Wave 200)*WAVE 200 | Ask us about this part Enquire about this part | |
| 9991333Pully Assy T10-24 (Wave 200)*Brush Arm + Inner Parts (Wave 200) | Ask us about this part Enquire about this part | |
| 9991332Pully Assy T10-11 (Wave 200)*Brush Arm + Inner Parts (Wave 200) | Ask us about this part Enquire about this part | |
| 5581410Drive Belt T10-410 Wave 200*Brush Arm + Inner Parts (Wave 200) | Ask us about this part Enquire about this part | |
| 5581609Bearing: Adjustable Wave 200Brush Arm + Inner Parts (Wave 200) | Ask us about this part Enquire about this part | |
| 9991327-ASSYTENSION Wheel ASSYWAVE 200 | Ask us about this part Enquire about this part | |
| 3105580Screw M5x80 A2TENSION Wheel ASSY | Ask us about this part Enquire about this part | |
| 3105600Screw M5X60 A2 DIN912ATENSION Wheel ASSY | Ask us about this part Enquire about this part | |
| 3509350Nut M5 A2 DIN 985TENSION Wheel ASSY | Ask us about this part Enquire about this part | |
| 3917037Spring Tension W200TENSION Wheel ASSY | Ask us about this part Enquire about this part | |
| 9982447Tension Wheel HousingTENSION Wheel ASSY | Ask us about this part Enquire about this part | |
| 9982483Pully (Wave 200)*WAVE 200 | Ask us about this part Enquire about this part | |
| 3860017Suction Tube Oring Silicon WaveWAVE 200 BOTTOM | Ask us about this part Enquire about this part | |
| 9982424Suction Tube Wave 200WAVE 200 BOTTOM | Ask us about this part Enquire about this part | |
| 9982458Wheel Shaft HolderWAVE 200 BOTTOM | Ask us about this part Enquire about this part | |
| 9982459Wheel BushingWAVE 200 BOTTOM | Ask us about this part Enquire about this part | |
| 5581018Anchor Wave 200WAVE 200 BOTTOM | Ask us about this part Enquire about this part | |
| 9982411WAVE 200 LOWER BODYWAVE 200 BOTTOM | Ask us about this part Enquire about this part | |
| 9991334Bottom Cover + Vacuum Closing WaveWAVE 200 BOTTOM | Ask us about this part Enquire about this part | |
| 9982431Vacuum Strip L/RWAVE 200 BOTTOM | Ask us about this part Enquire about this part | |
| 3379450-AScrew KA40X12WAVE 200 BOTTOM | Ask us about this part Enquire about this part | |
| 3304418Screw DIN912 A2 M5X16WAVE 200 BOTTOM | Ask us about this part Enquire about this part | |
| 3509350Nut M5 A2 DIN 985WAVE 200 BOTTOM | Ask us about this part Enquire about this part | |
| 3379408-AScrew WN1412 A2 KA40X8WAVE 200 BOTTOM | Ask us about this part Enquire about this part | |
| 3889201Wave XL Belt (2020)WAVE 200 | Ask us about this part Enquire about this part | |
| 3889200Wave XL Belt (2017)WAVE 200 | Ask us about this part Enquire about this part | |
| 3865005Adaptor – Hexagon (D Shaft)WAVE 200 | Ask us about this part Enquire about this part | |
| 5581411Drive Belt T10-500 Wave 200*WAVE 200 | Ask us about this part Enquire about this part | |
| 9991330-ASSYWheel Assy (Wave 200)*WAVE 200 | Ask us about this part Enquire about this part | |
| 9982414Side Panel 16-L Orange (Wave 200)*WAVE 200 | Ask us about this part Enquire about this part | |
| 9991329-ASSYBrush Arm (Wave 200)*WAVE 200 | Ask us about this part Enquire about this part | |
| 3379616-AScrew KA50X16 (Retail)Brush Arm (Wave 200) | Ask us about this part Enquire about this part | |
| 9991333Pully Assy T10-24 (Wave 200)*Brush Arm (Wave 200) | Ask us about this part Enquire about this part | |
| 5581609Bearing: Adjustable Wave 200Brush Arm (Wave 200) | Ask us about this part Enquire about this part | |
| 9991332Pully Assy T10-11 (Wave 200)*Brush Arm (Wave 200) | Ask us about this part Enquire about this part | |
| 9982332Cable Holder DBWAVE 200 | Ask us about this part Enquire about this part | |
| 5580633WaveRing Stopp. for WheelShaftWAVE 200 | Ask us about this part Enquire about this part | |
| 9982423Front BumperWAVE 200 | Ask us about this part Enquire about this part | |
| 9982466Service Cover – Wave 200*WAVE 200 | Ask us about this part Enquire about this part | |
| 9982449WATER RELEASE FLAPWAVE 200 | Ask us about this part Enquire about this part | |
| 9982431Vacuum Strip L/RWAVE 200 | Ask us about this part Enquire about this part | |
| 3305050-AScrew A2 WN1412 KA50X50 (Retail)WAVE 200 | Ask us about this part Enquire about this part | |
| 3379440-AScrew KA50X12 A2 WN1412 (Retail)WAVE 200 | Ask us about this part Enquire about this part | |
| 3379616-AScrew KA50X16 (Retail)WAVE 200 | Ask us about this part Enquire about this part | |
| 3374410Screw BN 5952 ECO FIX A2 M4X10WAVE 200 | Ask us about this part Enquire about this part | |
| 3509350Nut M5 A2 DIN 985WAVE 200 | Ask us about this part Enquire about this part | |
| 3105600Screw M5X60 A2 DIN912AWAVE 200 | Ask us about this part Enquire about this part | |
| 3374111Screw Tuf A2 Form – H M4 x 10WAVE 200 | Ask us about this part Enquire about this part | |
| 3379450-AScrew KA40X12WAVE 200 | Ask us about this part Enquire about this part |
Local matching help
Not sure which version?
Send your cleaner model, serial number and a photo of the part. Our Wangara and Jandakot team can help you find the right match.
