PRP / Maytronics spare parts
Dolphin M600 parts.
See how it fits.

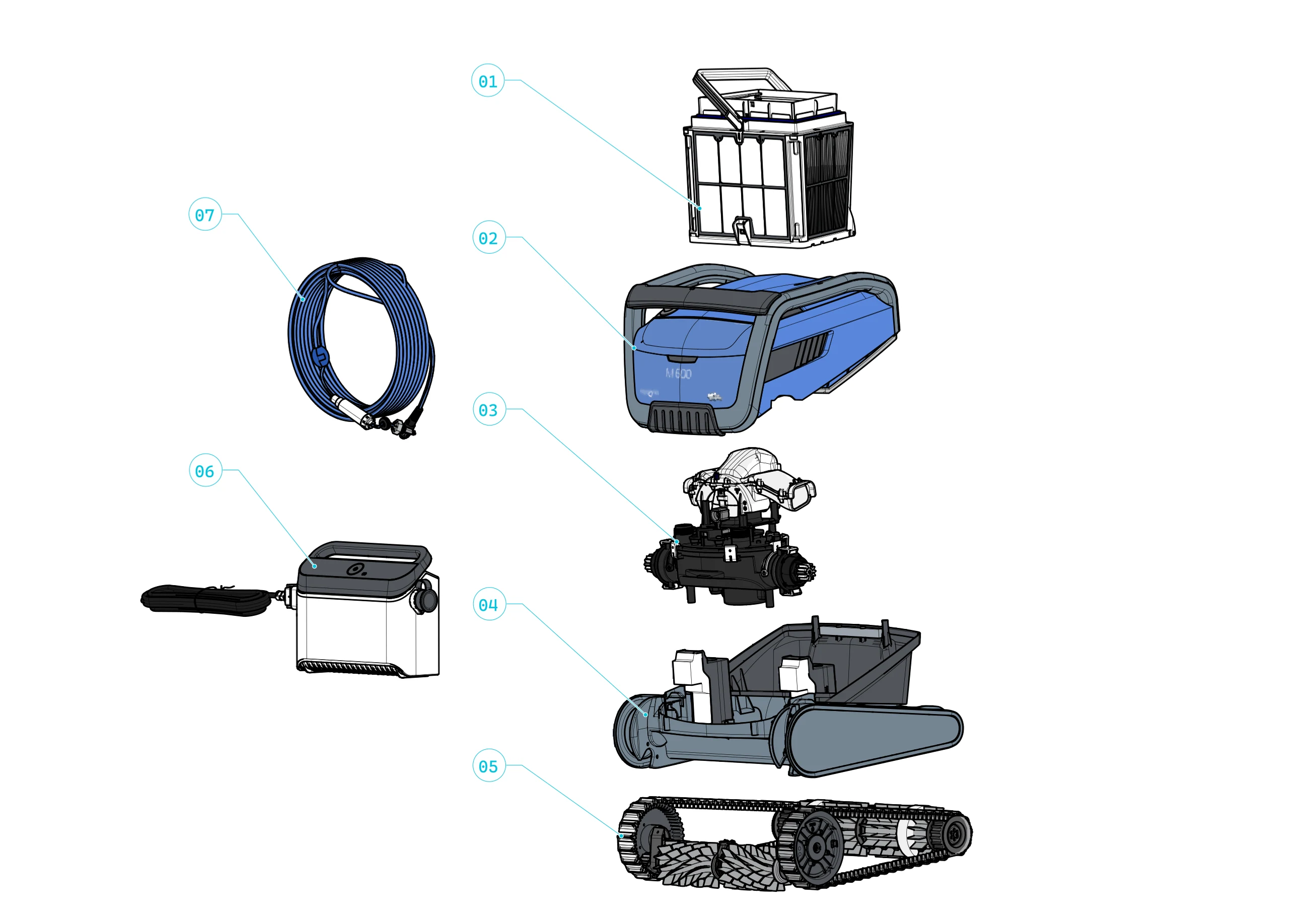

Explore your cleaner, one assembly at a time. Select a numbered part to find its reference, order from our range or ask our Perth team for help.
Model reference / 99996610-AUInside your cleaner
Find it in the breakdown.
Choose an assembly, then select a numbered reference. Have your serial number handy to check the right version.
Tap a reference to identify a part. Zoom in for detail and drag to move the drawing.
Checking current PRP prices and availability…
Choose a part
Follow the reference.
The part number and available purchase or enquiry options will appear here.
Every listed reference
The M600 parts list.
Model 99996610-AU. A diagram reference identifies the component; the part number identifies the replacement. Quantity is the number you wish to order.
Browse all 119 part references
| Ref. | Part number / description | Order or enquire |
|---|---|---|
| 3379616-AScrew KA50X16 (Retail)Chassis | Ask us about this part Enquire about this part | |
| 3379440-AScrew KA50X12 A2 WN1412 (Retail)Chassis | Ask us about this part Enquire about this part | |
| 3379616-AScrew KA50X16 (Retail)Drive system | Ask us about this part Enquire about this part | |
| 9995899-DIYCable Dyn 17m SWV DIY IOM600 | Ask us about this part Enquire about this part | |
| 99954230-ASSYRCU BLE M600Caddy & accessories | Ask us about this part Enquire about this part | |
| 9983106Filter Basket Rough M2iFilters | Ask us about this part Enquire about this part | |
| 9991660-ASSYFilter Basket Assy M600Filters | Ask us about this part Enquire about this part | |
| 9991661-ASSYFilter Cartridges Net (Set of 4)Filter basket | Ask us about this part Enquire about this part | |
| 9991479-ASSYFilter Panel Kit M2/M2i Ultra Fine (F&R – 2)Filters | Ask us about this part Enquire about this part | |
| 99952283-ASSYFilter Cover M600 AssyTop casing | Ask us about this part Enquire about this part | |
| 9995714022Handle Assy M600 L.Grey*Top casing | Ask us about this part Enquire about this part | |
| M96410192Gromet Holder M600 Blue 660CTop casing | Ask us about this part Enquire about this part | |
| M96410231Bumper M600 C.Grey 11CTop casing | Ask us about this part Enquire about this part | |
| 99933002-ASSYFront Panel M600Top casing | Ask us about this part Enquire about this part | |
| M96410117Cover DIY M600 BlueTop casing | Ask us about this part Enquire about this part | |
| 99832911Skirt Panel M600 TransparentFront casing | Ask us about this part Enquire about this part | |
| M96410251Float Housing M600 C.GreyFront casing | Ask us about this part Enquire about this part | |
| 9991340-ASSYElectronic Card LED (M600)Front casing | Ask us about this part Enquire about this part | |
| 6250963Float M600Front casing | Ask us about this part Enquire about this part | |
| 9983295Cover Float M600Front casing | Ask us about this part Enquire about this part | |
| 6250964Float Front M600 iO F1/F2Front casing | Ask us about this part Enquire about this part | |
| M96410123Grill Left Side M600 C.Grey 11CSide casing | Ask us about this part Enquire about this part | |
| M96410142Panel Left M600 Blue 660CSide casing | Ask us about this part Enquire about this part | |
| M96410021Skit M600 D.GreySide casing | Ask us about this part Enquire about this part | |
| M96410152Panel Right M600 Blue 660CSide casing | Ask us about this part Enquire about this part | |
| M96410135Grill Right Side M600 D.GreySide casing | Ask us about this part Enquire about this part | |
| 9995397-EXMotor Unit Io ExMotor unit | Ask us about this part Enquire about this part | |
| 3379440-AScrew KA50X12 A2 WN1412 (Retail)Motor components | Ask us about this part Enquire about this part | |
| 3101308-AScrew M3X8 DIN965A-A2 TUFMotor components | Ask us about this part Enquire about this part | |
| 99966009Maifold Kit with Flaps (M600)Motor unit | Ask us about this part Enquire about this part | |
| 99917351Water Adjuster Tube M600 ASSYMotor unit | Ask us about this part Enquire about this part | |
| M96410181Chassis Panel M600 C.Grey 11CChassis | Ask us about this part Enquire about this part | |
| 9993318Float House Assy Left M600Chassis | Ask us about this part Enquire about this part | |
| 9993319Float House Assy Right M600Chassis | Ask us about this part Enquire about this part | |
| 99832571Chassis Door Left M600 Grey 11C*Chassis | Ask us about this part Enquire about this part | |
| 99832361Chassis M600*Chassis | Ask us about this part Enquire about this part | |
| 99832581Chassis Door Right M600 Grey 11C*Chassis | Ask us about this part Enquire about this part | |
| M96200071Bypass Cover Right S2 C.GreyChassis | Ask us about this part Enquire about this part | |
| 9983168Bypass Cover Left S2 C.Grey**Chassis | Ask us about this part Enquire about this part | |
| 9991731-ASSYBypass Assy M2/M2iChassis | Ask us about this part Enquire about this part | |
| 9983262Inlet Chassis Strip M600Chassis | Ask us about this part Enquire about this part | |
| 99830244Rapid Drain Flap (M600)Chassis | Ask us about this part Enquire about this part | |
| 3726287Weight Rear M600Chassis | Ask us about this part Enquire about this part | |
| 99832972Side Panel M600 L.Grey 7544c Right*Chassis | Ask us about this part Enquire about this part | |
| 99832962Side Panel M600 L.Grey 7544c Right*Chassis | Ask us about this part Enquire about this part | |
| 9995547-ASSYActive Brush IO GreyDrive system | Ask us about this part Enquire about this part | |
| 3379616-AScrew KA50X16 (Retail)Active brush | Ask us about this part Enquire about this part | |
| 9983123Active Brush Gear M2/M2iActive brush | Ask us about this part Enquire about this part | |
| M96410201Brush Active Left Side M600 iO F1Active brush | Ask us about this part Enquire about this part | |
| 9983113Bushing – Active Brush S300Active brush | Ask us about this part Enquire about this part | |
| 9983119Active Brush Adaptor (M2/M2i R)Active brush | Ask us about this part Enquire about this part | |
| 99966021Brush Active Sphiral Left GreyActive brush | Ask us about this part Enquire about this part | |
| 99832691Brush Active Centre Shaft M600 iO F1Active brush | Ask us about this part Enquire about this part | |
| 6101910PVC Tube M600Active brush | Ask us about this part Enquire about this part | |
| 9985063Bushing Central Front M600Active brush | Ask us about this part Enquire about this part | |
| 99966031Brush Active Sphiral Right GreyActive brush | Ask us about this part Enquire about this part | |
| M96410211Brush Active Right Side M600 iO F1Active brush | Ask us about this part Enquire about this part | |
| 9995548-ASSYBrush Assy Dyn IO GreyDrive system | Ask us about this part Enquire about this part | |
| 6101611Brush WB RingBrush assembly | Ask us about this part Enquire about this part | |
| 9983152Track: M1/M2 GreyDrive system | Ask us about this part Enquire about this part | |
| 61020601Brush Dyn CB Grey (Moulded)*Brush assembly | Ask us about this part Enquire about this part | |
| 9983112Bearing: Wheel M2/M2iDrive system | Ask us about this part Enquire about this part | |
| 3884080Bearing: Wheel Dyn TTBrush assembly | Ask us about this part Enquire about this part | |
| 99876134Wheel Cover Large M600 Grey 7544C**Drive system | Ask us about this part Enquire about this part | |
| 9983121Wheel Disc Grey*Drive system | Ask us about this part Enquire about this part | |
| 9983114Bushing – Wheel 2Drive system | Ask us about this part Enquire about this part | |
| 9983379Wheel Front Grey M600Drive system | Ask us about this part Enquire about this part | |
| 99876144Wheel Cover Small Light Grey M600*Drive system | Ask us about this part Enquire about this part | |
| 99876154Wheel Cap Small M600 Grey*Drive system | Ask us about this part Enquire about this part | |
| 9983120Adaptor For Wheel Bearing M2/M2iDrive system | Ask us about this part Enquire about this part | |
| 9983115Bushing – Brush 3Drive system | Ask us about this part Enquire about this part | |
| 58984405LFCable – Power Supply AUPower supply | Ask us about this part Enquire about this part | |
| 9991754Cable LOCKER FOR P.S ASSYPower supply | Ask us about this part Enquire about this part | |
| 99956083AU-AV10Power Supply IoT 180wPower supply | Ask us about this part Enquire about this part | |
| 9985069Bushing Brush M600Active brush | Ask us about this part Enquire about this part | |
| 9991273Retrofit For Cable Con 2010Short cable | Ask us about this part Enquire about this part | |
| 9983358Gromet 14mm M800Short cable | Ask us about this part Enquire about this part | |
| 9995090Cable Float AssyFloating cable | Ask us about this part Enquire about this part | |
| 9996859-DIYCable Dyn 1.2m SVW DIY (M600)Floating cable | Ask us about this part Enquire about this part | |
| 5000009Amphenol Plug*Floating cable | Ask us about this part Enquire about this part | |
| 9991503-ASSYCaddy Sub (Domestic) Screw KitCaddy assembly | Ask us about this part Enquire about this part | |
| 9980675Caddy Sub (Domestic) Handle HookCaddy assembly | Ask us about this part Enquire about this part | |
| 9983202Caddy Sub (Domestic NS) Adaptor For PSUCaddy assembly | Ask us about this part Enquire about this part | |
| 4197023-ASSYCaddy Sub (Domestic) Profile + Insert AssyCaddy assembly | Ask us about this part Enquire about this part | |
| 9983203Caddy Sub (Domestic NS) Cover for PSU HousingCaddy assembly | Ask us about this part Enquire about this part | |
| 9983181Caddy Sub (Domestic NS) Adaptor S LineCaddy assembly | Ask us about this part Enquire about this part | |
| 9980672Caddy Sub (Domestic) Wheel CoverCaddy assembly | Ask us about this part Enquire about this part | |
| 9980670Caddy Sub (Domestic) BaseCaddy assembly | Ask us about this part Enquire about this part | |
| 9980681Caddy Sub (Domestic) WheelCaddy assembly | Ask us about this part Enquire about this part | |
| 9996084-ASSYCaddy (Domestic Universal)Caddy & accessories | Ask us about this part Enquire about this part | |
| 9983361RCU Holder M600 CaddyCaddy & accessories | Ask us about this part Enquire about this part | |
| 1811404Cable ConnectorCable connector | Ask us about this part Enquire about this part | |
| 3861002RK RING FOR CABLE CONN.Cable connector | Ask us about this part Enquire about this part | |
| 9980025Washer Gland 13MMCable connector | Ask us about this part Enquire about this part | |
| 9985027PLASTIC WASHER 7MM X 2MMCable connector | Ask us about this part Enquire about this part | |
| 5890091LFCable MUB M600 4 PinMotor components | Ask us about this part Enquire about this part | |
| 99917782-ASSYImpeller Cylinder Jet Assy ClearMotor components | Ask us about this part Enquire about this part | |
| 9983356Servo Pin M2 iOMotor components | Ask us about this part Enquire about this part | |
| 9983363Servo SpacerMotor components | Ask us about this part Enquire about this part | |
| 5588902Impeller Motor Holder 2Motor components | Ask us about this part Enquire about this part | |
| 9995266Impeller + Screw DC BlackMotor components | Ask us about this part Enquire about this part | |
| 9991822-ASSYCover MU M600+Servo+Card AssyMotor components | Ask us about this part Enquire about this part | |
| 3861644O-Ring 164*4 N70Motor components | Ask us about this part Enquire about this part | |
| 3862503Seal Oring 25X3 I.MMotor components | Ask us about this part Enquire about this part | |
| 5583323Seal Oring 32X3Motor components | Ask us about this part Enquire about this part | |
| 5890090LFCable MBU M600Motor components | Ask us about this part Enquire about this part | |
| 9991208-ASSYImpeller Motor M600 AssyMotor components | Ask us about this part Enquire about this part | |
| 9983180Front Clips For MBU S300Motor components | Ask us about this part Enquire about this part | |
| 4850023Desiccant BagMotor components | Ask us about this part Enquire about this part | |
| 9991207-ASSYDrive Motor M600 AssyMotor components | Ask us about this part Enquire about this part | |
| 9983142Gear Z12 For Drive MotorMotor components | Ask us about this part Enquire about this part | |
| 3862474Oring 47x4mmMotor components | Ask us about this part Enquire about this part | |
| 9983140Clip For MBUMotor components | Ask us about this part Enquire about this part | |
| 9991823-ASSYBox For MU M600 + F.I AssyMotor components | Ask us about this part Enquire about this part | |
| 3379616-AScrew KA50X16 (Retail)Top casing | Ask us about this part Enquire about this part | |
| 3379440-AScrew KA50X12 A2 WN1412 (Retail)Front casing | Ask us about this part Enquire about this part | |
| 3305040-AScrew KA50X40 (Retail)Top casing | Ask us about this part Enquire about this part | |
| 3305030-AScrew KA50X30 (Retail)Motor unit | Ask us about this part Enquire about this part | |
| 9995395-EXMotor Unit Io Ex*Motor unit | Ask us about this part Enquire about this part |
Local matching help
Not sure which version?
Send your cleaner model, serial number and a photo of the part. Our Wangara and Jandakot team can help you find the right match.
