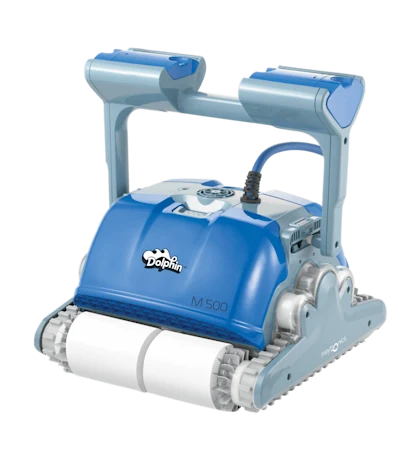

Dolphin M500 parts.
See how it fits.
Explore your cleaner, one assembly at a time. Select a numbered part to find its reference, order from our range or ask our Perth team for help.
Model reference / 99991088-AUInside your cleaner

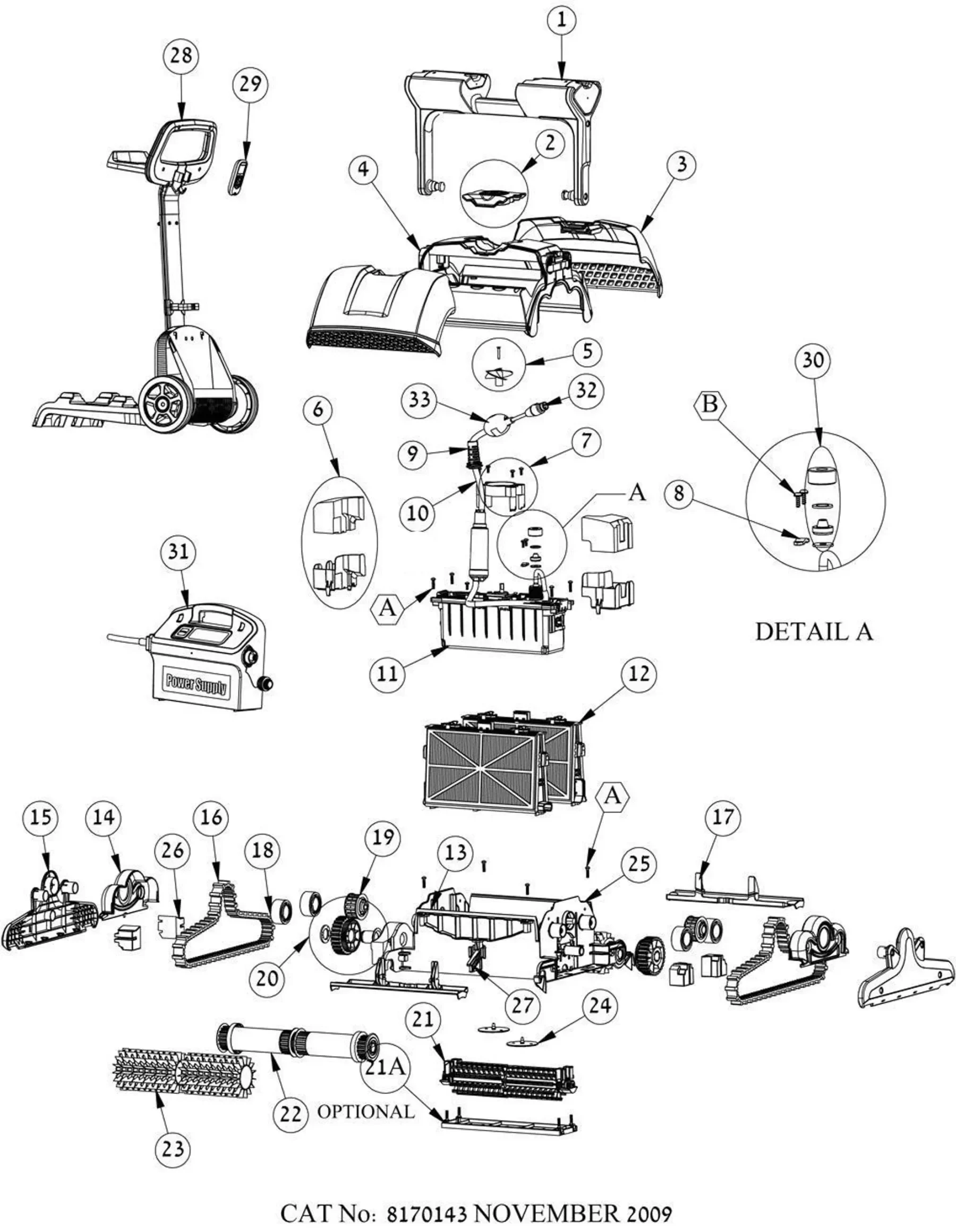

Find it in the breakdown.
Use the numbered drawing and select the matching reference from the parts list. Have your serial number handy to check the right version.
Select a reference from the parts list to identify the numbered component. Zoom in for detail and drag to move the drawing.
Checking current PRP prices and availability…
Choose a part
Follow the reference.
The part number and available purchase or enquiry options will appear here.
Every listed reference
The M500 parts list.
Model 99991088-AU. A diagram reference identifies the component; the part number identifies the replacement. Quantity is the number you wish to order.
Browse all 151 part references
| Ref. | Part number / description | Order or enquire |
|---|---|---|
| 99957042-ASSYHandle Assy Supreme M4M500 | Ask us about this part Enquire about this part | |
| 3379440-AScrew KA50X12 A2 WN1412 (Retail)Handle Assy Supreme M4 | Ask us about this part Enquire about this part | |
| M96310025Handle Body 2010 M400 Grey 7544CHandle Assy Supreme M4 | Ask us about this part Enquire about this part | |
| 9991045-ASSYImpeller Cover Supreme M4/5M500 | Ask us about this part Enquire about this part | |
| 9991047-ASSYCartridge Door Kit Supreme 4/5M500 | Ask us about this part Enquire about this part | |
| 99952032-ASSYOuter Casing Supreme M400/M500M500 | Ask us about this part Enquire about this part | |
| 3917031Handle Clip SpringOuter Casing Supreme M400/M500 | Ask us about this part Enquire about this part | |
| 9985065Handle Arm SlideOuter Casing Supreme M400/M500 | Ask us about this part Enquire about this part | |
| 9995266Impeller + Screw DC BlackM500 | Ask us about this part Enquire about this part | |
| 9991049-ASSYFloat+House for MU Supreme 5 KitM500 | Ask us about this part Enquire about this part | |
| 9991044-ASSYIMPELLER CYLINDER+SCREWS ASSYM500 | Ask us about this part Enquire about this part | |
| 9982332Cable Holder DBM500 | Ask us about this part Enquire about this part | |
| 9980880Support for Cable 2010M500 | Ask us about this part Enquire about this part | |
| 9995873-DIYCable Dyn 17m SWV DIY (M5)CABLE ASSY DYN DIY 18M’-CATALOG | Ask us about this part Enquire about this part | |
| 9995791-DIYCable Dyn 1.2m SWV DIYCable Dyn 17m SWV DIY (M5) | Ask us about this part Enquire about this part | |
| 9995090Cable Float AssyCable Dyn 17m SWV DIY (M5) | Ask us about this part Enquire about this part | |
| 9995791-DIYCable Dyn 1.2m SWV DIYCable Dyn 17m SWV DIY (M5) | Ask us about this part Enquire about this part | |
| 9995791-DIYCable Dyn 1.2m SWV DIYCable Dyn 1.2m SWV DIY | Ask us about this part Enquire about this part | |
| 9991273Retrofit For Cable Con 2010Cable Dyn 1.2m SWV DIY | Ask us about this part Enquire about this part | |
| 9995791-DIYCable Dyn 1.2m SWV DIYRetrofit For Cable Con 2010 | Ask us about this part Enquire about this part | |
| 9991273Retrofit For Cable Con 2010Retrofit For Cable Con 2010 | Ask us about this part Enquire about this part | |
| 9980880Support for Cable 2010Retrofit For Cable Con 2010 | Ask us about this part Enquire about this part | |
| 5000009Amphenol Plug*Retrofit For Cable Con 2010 | Ask us about this part Enquire about this part | |
| 1811404Cable ConnectorRetrofit For Cable Con 2010 | Ask us about this part Enquire about this part | |
| 3861002RK RING FOR CABLE CONN.Retrofit For Cable Con 2010 | Ask us about this part Enquire about this part | |
| 9980025Washer Gland 13MMRetrofit For Cable Con 2010 | Ask us about this part Enquire about this part | |
| 9985027PLASTIC WASHER 7MM X 2MMRetrofit For Cable Con 2010 | Ask us about this part Enquire about this part | |
| 9985048Cable Conn Three PinRetrofit For Cable Con 2010 | Ask us about this part Enquire about this part | |
| 9980880Support for Cable 2010Cable Dyn 1.2m SWV DIY | Ask us about this part Enquire about this part | |
| 5000009Amphenol Plug*Cable Dyn 1.2m SWV DIY | Ask us about this part Enquire about this part | |
| 5000009Amphenol Plug*Cable Dyn 17m SWV DIY (M5) | Ask us about this part Enquire about this part | |
| 9995791-DIYCable Dyn 1.2m SWV DIYCABLE ASSY DYN DIY 18M’-CATALOG | Ask us about this part Enquire about this part | |
| 9995266Impeller + Screw DC BlackMOTOR UNIT DYN 2010 | Ask us about this part Enquire about this part | |
| 9991044-ASSYIMPELLER CYLINDER+SCREWS ASSYMOTOR UNIT DYN 2010 | Ask us about this part Enquire about this part | |
| 9991273Retrofit For Cable Con 2010MOTOR UNIT DYN 2010 | Ask us about this part Enquire about this part | |
| 5588902Impeller Motor Holder 2MOTOR UNIT DYN 2010 | Ask us about this part Enquire about this part | |
| 9982332Cable Holder DBMOTOR UNIT DYN 2010 | Ask us about this part Enquire about this part | |
| 9980726MBU Cover Locker Length SideMOTOR UNIT DYN 2010 | Ask us about this part Enquire about this part | |
| 9980727MBU Cover Locker Short SideMOTOR UNIT DYN 2010 | Ask us about this part Enquire about this part | |
| 9991217-DIYMBU Cover Diag//DYN 2010MOTOR UNIT DYN 2010 | Ask us about this part Enquire about this part | |
| 5890051LFCable Loom MBU 2010MOTOR UNIT DYN 2010 | Ask us about this part Enquire about this part | |
| 3864202Seal 202X4 MBU 2010MOTOR UNIT DYN 2010 | Ask us about this part Enquire about this part | |
| 3862503Seal Oring 25X3 I.MMOTOR UNIT DYN 2010 | Ask us about this part Enquire about this part | |
| 5583323Seal Oring 32X3MOTOR UNIT DYN 2010 | Ask us about this part Enquire about this part | |
| 9991204-ASSYImpeller Motor 2010 ASSYMOTOR UNIT DYN 2010 | Ask us about this part Enquire about this part | |
| 9991218-ASSYImpeller Motor 2010 ASSY*MOTOR UNIT DYN 2010 | Ask us about this part Enquire about this part | |
| 9995018Electronic Card Dyn 2010 ASSYMOTOR UNIT DYN 2010 | Ask us about this part Enquire about this part | |
| 9995018Electronic Card Dyn 2010 ASSYMOTOR UNIT DYN 2010 | Ask us about this part Enquire about this part | |
| 5588900Drive Motor HolderMOTOR UNIT DYN 2010 | Ask us about this part Enquire about this part | |
| 4850010Desiccant Bag*MOTOR UNIT DYN 2010 | Ask us about this part Enquire about this part | |
| 3862119Seal Oring 2-119 DMMOTOR UNIT DYN 2010 | Ask us about this part Enquire about this part | |
| 3861902Seal Oring 19X2 DMMOTOR UNIT DYN 2010 | Ask us about this part Enquire about this part | |
| 9991205-ASSYDrive Motor 2010 ASSYMOTOR UNIT DYN 2010 | Ask us about this part Enquire about this part | |
| 9991219-ASSYDrive Motor 2010 ASSY*MOTOR UNIT DYN 2010 | Ask us about this part Enquire about this part | |
| 9991547MBU Box DYN 2010MOTOR UNIT DYN 2010 | Ask us about this part Enquire about this part | |
| 3379440-AScrew KA50X12 A2 WN1412 (Retail)MOTOR UNIT DYN 2010 | Ask us about this part Enquire about this part | |
| 3379440-AScrew KA50X12 A2 WN1412 (Retail)MOTOR UNIT DYN 2010 | Ask us about this part Enquire about this part | |
| 3389208-AScrew ZP WN1412 KA30X08MOTOR UNIT DYN 2010 | Ask us about this part Enquire about this part | |
| 99953054-ASSYMotor Unit Dyn 2010 Assy*MOTOR UNIT DYN 2010 | Ask us about this part Enquire about this part | |
| 99953054-EXMotor Unit Dyn 2010 ExMOTOR UNIT DYN 2010 | Ask us about this part Enquire about this part | |
| 3379720-AScrew KA50X20 (Retail)Motor Unit Dyn 2010 Ex | Ask us about this part Enquire about this part | |
| 3379440-AScrew KA50X12 A2 WN1412 (Retail)Motor Unit Dyn 2010 Ex | Ask us about this part Enquire about this part | |
| 3389208-AScrew ZP WN1412 KA30X08Motor Unit Dyn 2010 Ex | Ask us about this part Enquire about this part | |
| 9995266Impeller + Screw DC BlackMotor Unit Dyn 2010 Ex | Ask us about this part Enquire about this part | |
| 9991044-ASSYIMPELLER CYLINDER+SCREWS ASSYMotor Unit Dyn 2010 Ex | Ask us about this part Enquire about this part | |
| 5588902Impeller Motor Holder 2Motor Unit Dyn 2010 Ex | Ask us about this part Enquire about this part | |
| 9980726MBU Cover Locker Length SideMotor Unit Dyn 2010 Ex | Ask us about this part Enquire about this part | |
| 9980727MBU Cover Locker Short SideMotor Unit Dyn 2010 Ex | Ask us about this part Enquire about this part | |
| 9991217-DIYMBU Cover Diag//DYN 2010Motor Unit Dyn 2010 Ex | Ask us about this part Enquire about this part | |
| 5890051LFCable Loom MBU 2010Motor Unit Dyn 2010 Ex | Ask us about this part Enquire about this part | |
| 3864202Seal 202X4 MBU 2010Motor Unit Dyn 2010 Ex | Ask us about this part Enquire about this part | |
| 3862503Seal Oring 25X3 I.MMotor Unit Dyn 2010 Ex | Ask us about this part Enquire about this part | |
| 5583323Seal Oring 32X3Motor Unit Dyn 2010 Ex | Ask us about this part Enquire about this part | |
| 9991204-ASSYImpeller Motor 2010 ASSYMotor Unit Dyn 2010 Ex | Ask us about this part Enquire about this part | |
| 9995018Electronic Card Dyn 2010 ASSYMotor Unit Dyn 2010 Ex | Ask us about this part Enquire about this part | |
| 5588900Drive Motor HolderMotor Unit Dyn 2010 Ex | Ask us about this part Enquire about this part | |
| 4850010Desiccant Bag*Motor Unit Dyn 2010 Ex | Ask us about this part Enquire about this part | |
| 3862119Seal Oring 2-119 DMMotor Unit Dyn 2010 Ex | Ask us about this part Enquire about this part | |
| 3861902Seal Oring 19X2 DMMotor Unit Dyn 2010 Ex | Ask us about this part Enquire about this part | |
| 9991205-ASSYDrive Motor 2010 ASSYMotor Unit Dyn 2010 Ex | Ask us about this part Enquire about this part | |
| 9980723MBU Box DYN 2010*Motor Unit Dyn 2010 Ex | Ask us about this part Enquire about this part | |
| 9982332Cable Holder DBMotor Unit Dyn 2010 Ex | Ask us about this part Enquire about this part | |
| 9980731Filter Cartridge Locking RingFILTERS DOL.2010 | Ask us about this part Enquire about this part | |
| 9980753Filter Kit Locking AdaptorFILTERS DOL.2010 | Ask us about this part Enquire about this part | |
| 9991433-ASSYFilter Panels M500 Fine (Pack of 4)FILTERS DOL.2010 | Ask us about this part Enquire about this part | |
| 9980733Filter & Cartridge HolderFILTERS DOL.2010 | Ask us about this part Enquire about this part | |
| 9991432-ASSYFilter Cartridge Kit Ultra Fine (4 Pack)FILTERS DOL.2010 | Ask us about this part Enquire about this part | |
| 9980891Non Return ValveFILTERS DOL.2010 | Ask us about this part Enquire about this part | |
| 3865005Adaptor – Hexagon (D Shaft)M500 | Ask us about this part Enquire about this part | |
| 9980883Track for Safety CoverM500 | Ask us about this part Enquire about this part | |
| 9980863Side Panel Supreme M4/5M500 | Ask us about this part Enquire about this part | |
| 9985006Drive Belt GreyM500 | Ask us about this part Enquire about this part | |
| 9980892Brush Safety CoverM500 | Ask us about this part Enquire about this part | |
| 3884997Guide WheelM500 | Ask us about this part Enquire about this part | |
| 3883645Pulley For Flat Shaft – TTM500 | Ask us about this part Enquire about this part | |
| 9991043-ASSYGear For Active Brush AssyM500 | Ask us about this part Enquire about this part | |
| 9995541-ASSYBrush Active Dyn AssyM500 | Ask us about this part Enquire about this part | |
| 9980756Brush Tube Connector DynBrush Active Dyn Assy | Ask us about this part Enquire about this part | |
| 9980736Active BrushBrush Active Dyn Assy | Ask us about this part Enquire about this part | |
| 6101922Brush Support For Active BrushBrush Active Dyn Assy | Ask us about this part Enquire about this part | |
| 9991594Active Brush Holder KitBrush Active Dyn Assy | Ask us about this part Enquire about this part | |
| 9980700Bottom Cover 2010M500 | Ask us about this part Enquire about this part | |
| 99955956-ASSYWheel Assy For Timing Track Dyn DBM500 | Ask us about this part Enquire about this part | |
| 9982275Cork for Inner Wheel TubeWheel Assy For Timing Track Dyn DB | Ask us about this part Enquire about this part | |
| 3884073-ASSYBearing: Wheel Diag BasicWheel Assy For Timing Track Dyn DB | Ask us about this part Enquire about this part | |
| 3885000Stopper Ring DiagWheel Assy For Timing Track Dyn DB | Ask us about this part Enquire about this part | |
| 6101924Wheel Tube for Dyn TT Wheel AssyWheel Assy For Timing Track Dyn DB | Ask us about this part Enquire about this part | |
| 6101914Diag Basic Inner Wheel TubeWheel Assy For Timing Track Dyn DB | Ask us about this part Enquire about this part | |
| 6101635Brush Dyn PVC Grey*BRUSHES- DYN GREY | Ask us about this part Enquire about this part | |
| 61020801Brush Dyn PVC Grey (Moulded)*BRUSHES- DYN GREY | Ask us about this part Enquire about this part | |
| 6101656Brush Dyn CB Grey*BRUSHES- DYN GREY | Ask us about this part Enquire about this part | |
| 61020601Brush Dyn CB Grey (Moulded)*BRUSHES- DYN GREY | Ask us about this part Enquire about this part | |
| 6101611Brush WB RingBRUSHES- DYN GREY | Ask us about this part Enquire about this part | |
| 9995560-ASSYBrush WB Dyn PairBRUSHES- DYN GREY | Ask us about this part Enquire about this part | |
| 99955340-ASSYWheel Assy Dyn CB GreyBRUSHES- DYN GREY | Ask us about this part Enquire about this part | |
| 99955360-ASSYBrush Assy Dyn WB GreyWheel Assy Dyn CB Grey | Ask us about this part Enquire about this part | |
| 6101611Brush WB RingWheel Assy Dyn CB Grey | Ask us about this part Enquire about this part | |
| 61020601Brush Dyn CB Grey (Moulded)*Wheel Assy Dyn CB Grey | Ask us about this part Enquire about this part | |
| 9982275Cork for Inner Wheel TubeWheel Assy Dyn CB Grey | Ask us about this part Enquire about this part | |
| 3884073-ASSYBearing: Wheel Diag BasicWheel Assy Dyn CB Grey | Ask us about this part Enquire about this part | |
| 3885000Stopper Ring DiagWheel Assy Dyn CB Grey | Ask us about this part Enquire about this part | |
| 6101914Diag Basic Inner Wheel TubeWheel Assy Dyn CB Grey | Ask us about this part Enquire about this part | |
| 99955360-ASSYBrush Assy Dyn WB GreyBRUSHES- DYN GREY | Ask us about this part Enquire about this part | |
| 9991046-ASSYDiaphragma 2010 (Pair)M500 | Ask us about this part Enquire about this part | |
| 9980890Frame M400/M500*M500 | Ask us about this part Enquire about this part | |
| 9991048-ASSYFloats (For Side Panels Kit)M500 | Ask us about this part Enquire about this part | |
| 9980922Brush Supporter 2010M500 | Ask us about this part Enquire about this part | |
| 9996098-ASSYCaddy (2011)M500 | Ask us about this part Enquire about this part | |
| 9991098Caddy Sub (Domestic) Top HandleCaddy (2011) | Ask us about this part Enquire about this part | |
| 9980675Caddy Sub (Domestic) Handle HookCaddy (2011) | Ask us about this part Enquire about this part | |
| 9980679Caddy Sub (Domestic 2011) RC HolderCaddy (2011) | Ask us about this part Enquire about this part | |
| 9980676Caddy Sub (Domestic) Profile InsertCaddy (2011) | Ask us about this part Enquire about this part | |
| 9991503-ASSYCaddy Sub (Domestic) Screw KitCaddy (2011) | Ask us about this part Enquire about this part | |
| 9980678Caddy Sub (Demestic 2011) Cable HolderCaddy (2011) | Ask us about this part Enquire about this part | |
| 4197023-ASSYCaddy Sub (Domestic) Profile + Insert AssyCaddy (2011) | Ask us about this part Enquire about this part | |
| 4197024-ASSYCaddy Sub (Domestic 2011) Profile Al+Insert AssyCaddy (2011) | Ask us about this part Enquire about this part | |
| 9980681Caddy Sub (Domestic) WheelCaddy (2011) | Ask us about this part Enquire about this part | |
| 9980672Caddy Sub (Domestic) Wheel CoverCaddy (2011) | Ask us about this part Enquire about this part | |
| 9980670Caddy Sub (Domestic) BaseCaddy (2011) | Ask us about this part Enquire about this part | |
| 99954226-ASSYRCU DYN 2010M500 | Ask us about this part Enquire about this part | |
| 9991273Retrofit For Cable Con 2010M500 | Ask us about this part Enquire about this part | |
| 9995679-ASSYPower Supply WT+BT Assy*M500 | Ask us about this part Enquire about this part | |
| 9995678-AU-15Power Supply Weekly Timer Dyn AUM500 | Ask us about this part Enquire about this part | |
| 5020012Socket Cover For PSUPower Supply Weekly Timer Dyn AU | Ask us about this part Enquire about this part | |
| 5020011Amph. Socket For PsPower Supply Weekly Timer Dyn AU | Ask us about this part Enquire about this part | |
| 58984405LFCable – Power Supply AUPower Supply Weekly Timer Dyn AU | Ask us about this part Enquire about this part | |
| 3379212Screw KA30X12Power Supply Weekly Timer Dyn AU | Ask us about this part Enquire about this part | |
| 5000009Amphenol Plug*M500 | Ask us about this part Enquire about this part | |
| 9995090Cable Float AssyM500 | Ask us about this part Enquire about this part | |
| 3379720-AScrew KA50X20 (Retail)M500 | Ask us about this part Enquire about this part | |
| 3379440-AScrew KA50X12 A2 WN1412 (Retail)M500 | Ask us about this part Enquire about this part |
Local matching help
Not sure which version?
Send your cleaner model, serial number and a photo of the part. Our Wangara and Jandakot team can help you find the right match.
