PRP / Zodiac robotic cleaner parts
Zodiac FR200 parts.
See how it fits.
Explore the manufacturer’s breakdown. Select a numbered part to find its reference, check current prices and availability, then order from our range or ask our Perth team for help.
Model reference / WR000679Inside your cleaner
Find it in the breakdown.

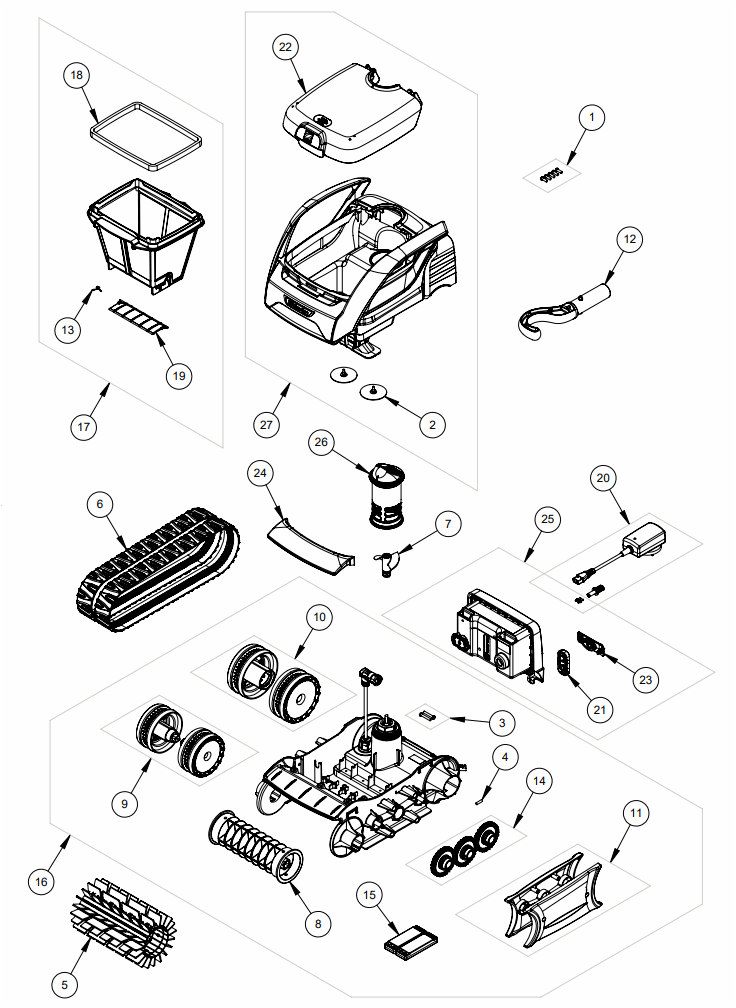

Select a numbered reference in the drawing or search the parts list. Have your serial number handy to check the right version.
Checking current PRP prices and availability…
Choose a part
Follow the reference.
The part number and available purchase or enquiry options will appear here.
Every listed reference
The FR200 parts list.
Model WR000679. A diagram reference identifies the component; the part number identifies the replacement. Unavailable references are enquiry-only. Confirmed discontinued parts are labelled and cannot be ordered online.
Browse all 27 part references
| Ref. | Part number / description | Order or enquire |
|---|---|---|
| R1084200BATTERY BLOCK TB F WComplete cleaner | $411.00 Available on backorder | |
| R1066000CHASSIS-TORBAT-LIGHT GREYComplete cleaner | $360.55 Available on backorder | |
| R1094500BODY B TB ZODIAC NAVY BLUEComplete cleaner | $156.55 Available on backorder | |
| R1066200FILTER ASSEMBLY 150 TBComplete cleaner | $83.05 Available on backorder | |
| R1067300COVER CLEAR TB ZODIACComplete cleaner | $73.55 Available on backorder | |
| R1066800CHARGING CORD TORBATComplete cleaner | $72.50 Available on backorder | |
| R0771900WHEEL-COMPLETE BACK TX 2Complete cleaner | $50.95 Available on backorder | |
| R0771800WHEEL-COMPLETE FRONT TX 2Complete cleaner | $50.95 Available on backorder | |
| R0765600TRACKS TXComplete cleaner | $42.45 Available to order | |
| R0764900BRUSH TXComplete cleaner | $40.75 Available on backorder | |
| R0767000HOLDER-BRUSH HOLDER TXComplete cleaner | $31.35 Available on backorder | |
| R1065900BALLAST LARGER (SET OF 2)Complete cleaner | $18.95 Available on backorder | |
| R1065600COMPLETE GEARS SYSTEM TORBATComplete cleaner | $17.90 Available on backorder | |
| R1066400SEAL FILTER TORBATComplete cleaner | $17.35 Available on backorder | |
| R0972500HOOK FREERIDERComplete cleaner | $15.60 Available on backorder | |
| R1067100POWER SWITCH TBComplete cleaner | $14.75 Available on backorder | |
| R1094400FLOW OUTLET HB BLACK W NOZZLEComplete cleaner | $14.75 Available on backorder | |
| R0657900MOTOR BLOCK SHAFT PIN 4Complete cleaner | $10.00 Available on backorder | |
| R0633300EXHAUST VALVE C SET OF 3Complete cleaner | $9.05 Available on backorder | |
| R1083700FRONT FLOAT TBComplete cleaner | $8.45 Available on backorder | |
| R1081500CHARGING CAPComplete cleaner | $7.55 Available on backorder | |
| R0766200IMPELLER TXComplete cleaner | $5.35 Available on backorder | |
| R1008400SPRING FOR FILTER TORBATComplete cleaner | $5.25 Available on backorder | |
| R1066500FLAP-FILTER TORBAT CLEANERComplete cleaner | $5.25 Available on backorder | |
| R0516700SCREW 4-12 SET OF 5Complete cleaner | $4.05 Available on backorder | |
| R0638900SCREW 4-25MM SET OF 5Complete cleaner | $4.05 Available on backorder | |
| R0772000FLANGES TXComplete cleaner | Unavailable — contact us for options Enquire about this part |
Local matching help
Not sure which version?
Send your cleaner model, serial number and a photo of the part. Our Wangara and Jandakot team can help you find the right match.
