PRP / Zodiac robotic cleaner parts
Zodiac V4 4WD parts.
See how it fits.
Explore the manufacturer’s breakdown. Select a numbered part to find its reference, check current prices and availability, then order from our range or ask our Perth team for help.
Model reference / –Inside your cleaner

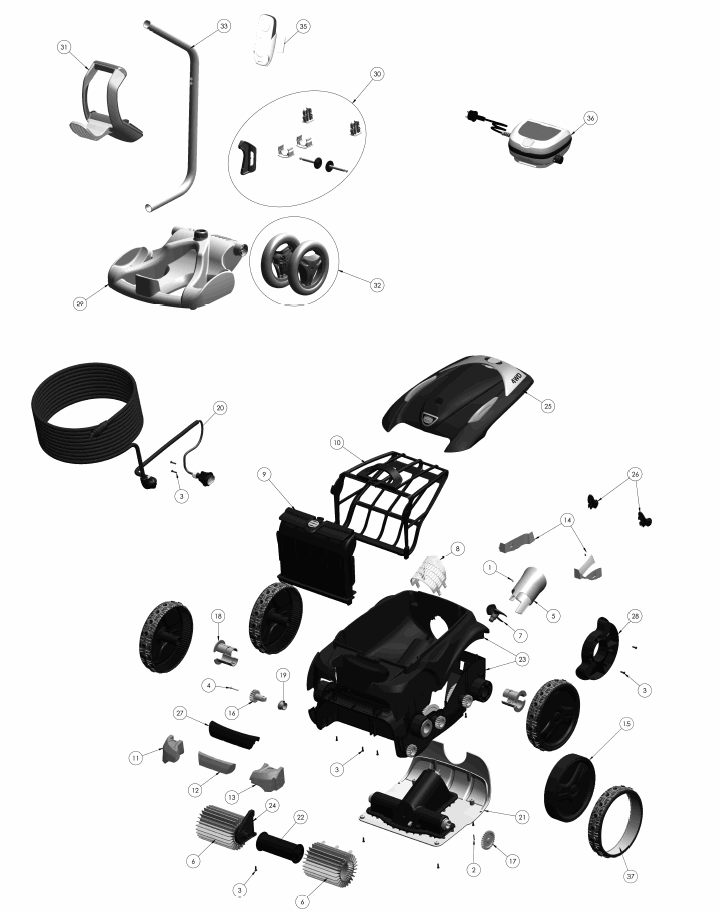

Find it in the breakdown.
Select a numbered reference in the drawing or search the parts list. Have your serial number handy to check the right version.
Checking current PRP prices and availability…
Choose a part
Follow the reference.
The part number and available purchase or enquiry options will appear here.
Every listed reference
The V4 4WD parts list.
Model -. A diagram reference identifies the component; the part number identifies the replacement. Unavailable references are enquiry-only. Confirmed discontinued parts are labelled and cannot be ordered online.
Browse all 38 part references
| Ref. | Part number / description | Order or enquire |
|---|---|---|
| R0638100MOTOR BLOCK VX55 4WDNot shown in drawing | $758.00 Available to order | |
| R0699200CTRL UNIT VX50 4WD AUS UNITComplete cleaner | $401.50 Available on backorder | |
| R0699200CTRL UNIT VX50 4WD AUS UNITNot shown in drawing | $401.50 Available on backorder | |
| R0516800FLOATING CABLE 18MNot shown in drawing | $342.65 Available to order | |
| R0643700FILTER CANISTER 200 MICRONComplete cleaner | $139.55 Available to order | |
| R0636600100M FILTER CANISTER VORTEXComplete cleaner | $139.55 Available to order | |
| R0564800CADY BASE FOR VORTEXComplete cleaner | $113.30 Available on backorder | |
| R0565000CADDY HANDLEComplete cleaner | $95.50 Available on backorder | |
| R06360004WD RIM LARGE BLACKComplete cleaner | $80.60 Available to order | |
| R0565200CADDY TUBEComplete cleaner | $73.25 Available on backorder | |
| R0565100CADDY WHEELNot shown in drawing | $61.65 Available on backorder | |
| R0565600FLOATING CABLE PLUGComplete cleaner | $59.55 Available on backorder | |
| R0636200TIRE LARGE RAL9022 ZODIACComplete cleaner | $59.40 Available to order | |
| R0517400BRUSH ROLLER VORTEX SET OF 2Complete cleaner | $52.90 Available to order | |
| R0517700FILTER CANISTER SUPPORTComplete cleaner | $52.45 Available to order | |
| R0564900CADDY ACCESSORIESComplete cleaner | $41.20 Available on backorder | |
| R0638800VX55 4WD BRUSH SET OF 2Complete cleaner | $33.65 Available to order | |
| R0517200TRANSMISSION KITComplete cleaner | $23.45 Available on backorder | |
| R0518100ROLLER SET OF 2Complete cleaner | $18.90 Available to order | |
| R0517500FLOW OUTLET KITComplete cleaner | $18.85 Available to order | |
| R0540300WHEEL COVERComplete cleaner | $18.55 Available on backorder | |
| R0517000PROPELLER ZODIACComplete cleaner | $14.70 Available on backorder | |
| R0539700COMPLETE FLOATComplete cleaner | $13.25 Available on backorder | |
| R0517600MOTOR SCREENComplete cleaner | $12.60 Available on backorder | |
| R0636700BEARING-WHEEL VORTEXNot shown in drawing | $10.50 Available to order | |
| R0518800DRIVE GEAR SET OF 2 VX55 4WDComplete cleaner | $9.45 Available to order | |
| R0639100BEARING-OUTER BEARING 2Complete cleaner | $9.20 Available to order | |
| R0567900FLOATING CABLE CLAMP 5PKComplete cleaner | $9.20 Available on backorder | |
| R0567800MOTOR BLOCK SHAFT PIN 5PKComplete cleaner | $9.20 Available on backorder | |
| R063900017 TEETH GEAR PACK OF 2Complete cleaner | $7.35 Available to order | |
| R0638700COVER LATCH GRIP PMS108Complete cleaner | $6.65 Available on backorder | |
| R0518700BRUSH SEPERATOR- SUPPORTComplete cleaner | $6.30 Available on backorder | |
| R0608500SCREW 4 16MM SET OF 5Complete cleaner | $4.05 Available on backorder | |
| R0516700SCREW 4-12 SET OF 5Complete cleaner | $4.05 Available on backorder | |
| R0638900SCREW 4-25MM SET OF 5Complete cleaner | $4.05 Available on backorder | |
| R0639200SCREW 2.9 9.5MM SET OF 5Complete cleaner | $4.05 Available on backorder | |
| R0636501HANDLE RAL9022 LSComplete cleaner | Unavailable — contact us for options Enquire about this part | |
| R0595900HOOD BLUE DECOComplete cleaner | Unavailable — contact us for options Enquire about this part |
Local matching help
Not sure which version?
Send your cleaner model, serial number and a photo of the part. Our Wangara and Jandakot team can help you find the right match.
