Zodiac CX35 parts.
See how it fits.
Explore the manufacturer’s breakdown. Select a numbered part to find its reference, check current prices and availability, then order from our range or ask our Perth team for help.
Model reference / WR000082 , , WR000177Inside your cleaner

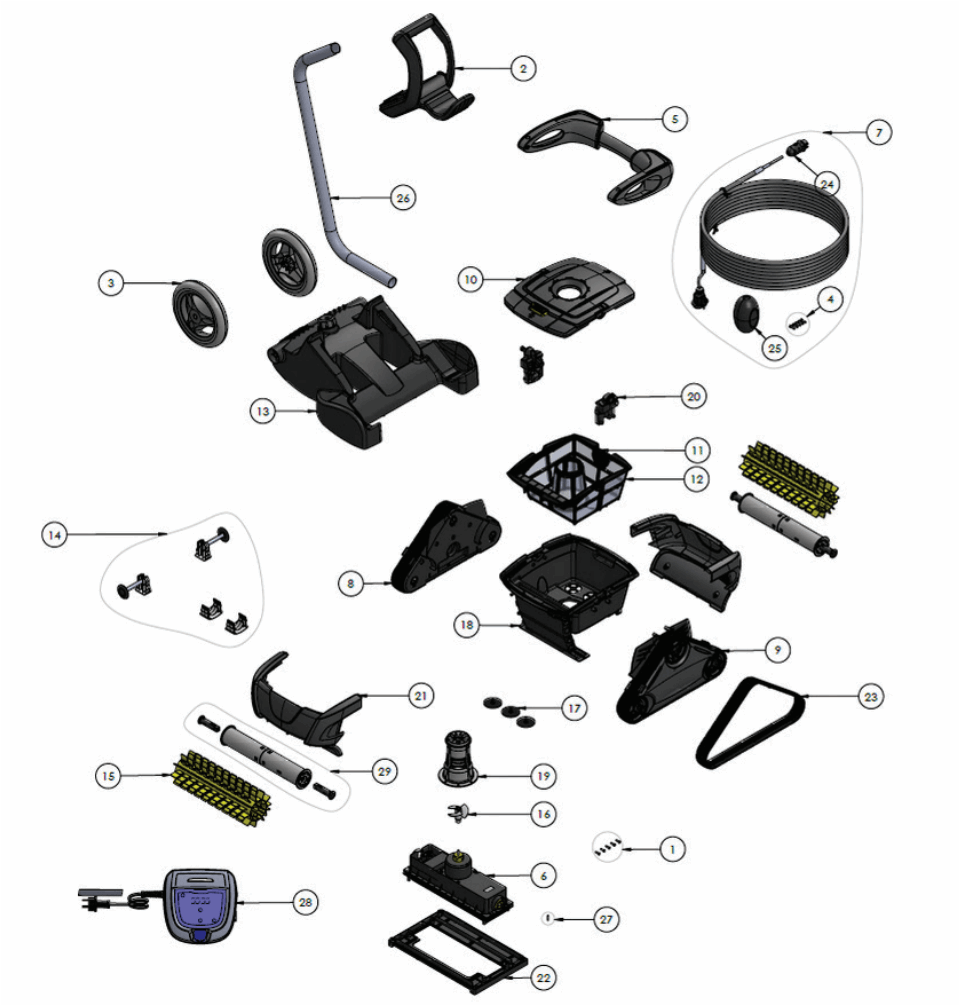

Find it in the breakdown.
Select a numbered reference in the drawing or search the parts list. Have your serial number handy to check the right version.
Checking current PRP prices and availability…
Choose a part
Follow the reference.
The part number and available purchase or enquiry options will appear here.
Every listed reference
The CX35 parts list.
Model WR000082 , , WR000177. A diagram reference identifies the component; the part number identifies the replacement. Unavailable references are enquiry-only. Confirmed discontinued parts are labelled and cannot be ordered online.
Browse all 29 part references
| Ref. | Part number / description | Order or enquire |
|---|---|---|
| R0632000COMPLETE MOTOR BLOCK CXComplete cleaner | $697.55 Available on backorder | |
| R0736200CONTROL UNIT TYPE 1 CX35Complete cleaner | $606.80 Available on backorder | |
| R0632101COMPLETE FLOAT CBL 18M CX35Complete cleaner | $342.65 Available on backorder | |
| R0633400BOWL CComplete cleaner | $248.85 Available on backorder | |
| R0632600FILTER COMPLETE 100 MPPComplete cleaner | $139.55 Available on backorder | |
| R0632601COMPLETE FILTER 200 CX20Complete cleaner | $139.55 Available on backorder | |
| R0632303COMPLETE GEAR BOX C GREYComplete cleaner | $121.20 Available to order | |
| R0632404COMPLETE COVER CComplete cleaner | $121.05 Available on backorder | |
| R0632800COMPLETE LOWER PART TROLLEY C.Complete cleaner | $113.30 Available on backorder | |
| R0565000CADDY HANDLEComplete cleaner | $95.50 Available on backorder | |
| R0632203CX20 GEAR BOX GREY NO TRACKComplete cleaner | $93.15 Available to order | |
| R0633104BRUSH SCRUBBER C PMS 108 ZComplete cleaner | $77.10 Available on backorder | |
| R0631904COMPLETE HANDLE C GREY ZComplete cleaner | $75.40 Available on backorder | |
| R0634400TROLLEY TUBE C.Complete cleaner | $69.60 Available on backorder | |
| R0565100CADDY WHEELComplete cleaner | $61.65 Available on backorder | |
| R0633900TRACK C Z SET OF 2 1Complete cleaner | $43.35 Available on backorder | |
| R0632900TROLLEY C ACCESSORIES CX35Complete cleaner | $39.15 Available on backorder | |
| R0722400BRUSH ROLLER – KEY C 2Complete cleaner | $35.30 Available to order | |
| R0634200CABLE FLOAT C ZComplete cleaner | $21.35 Available on backorder | |
| R0657900MOTOR BLOCK SHAFT PIN 4Complete cleaner | $10.00 Available on backorder | |
| R0633300EXHAUST VALVE C SET OF 3Complete cleaner | $9.05 Available on backorder | |
| R0634100CONNECTOR 3PTS BODYComplete cleaner | $7.70 Available on backorder | |
| R0633200IMPLELLER CComplete cleaner | $5.40 Available on backorder | |
| R0516700SCREW 4-12 SET OF 5Complete cleaner | $4.05 Available on backorder | |
| R0608500SCREW 4 16MM SET OF 5Complete cleaner | $4.05 Available on backorder | |
| R0633500FLOW OUTLET CComplete cleaner | Unavailable — contact us for options Enquire about this part | |
| R0633600HANDLE SHAFT CComplete cleaner | Unavailable — contact us for options Enquire about this part | |
| R0633703BODY A GREY CComplete cleaner | Unavailable — contact us for options Enquire about this part | |
| R0633800BOTTOM PLATE C CX20Complete cleaner | Unavailable — contact us for options Enquire about this part |
Local matching help
Not sure which version?
Send your cleaner model, serial number and a photo of the part. Our Wangara and Jandakot team can help you find the right match.
