Dolphin M550 parts.
See how it fits.

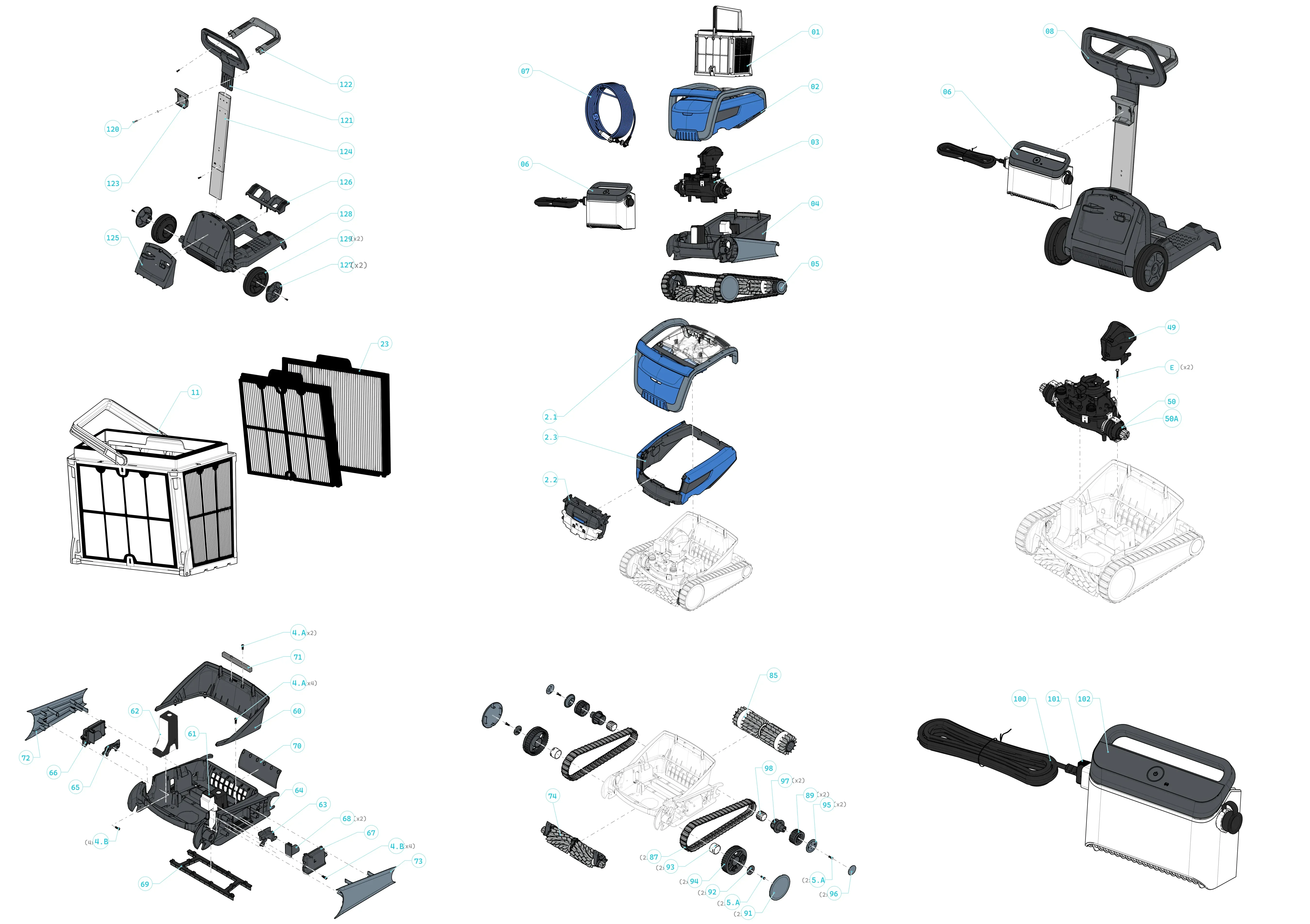

Explore your cleaner, one assembly at a time. Select a numbered part to find its reference, order from our range or ask our Perth team for help.
Model reference / 99996550-AUInside your cleaner
Find it in the breakdown.
Choose an assembly, then select a numbered reference. Have your serial number handy to check the right version.
Additional supplied diagrams
Tap a reference to identify a part. Zoom in for detail and drag to move the drawing.
Checking current PRP prices and availability…
Choose a part
Follow the reference.
The part number and available purchase or enquiry options will appear here.
Every listed reference
The M550 parts list.
Model 99996550-AU. A diagram reference identifies the component; the part number identifies the replacement. Quantity is the number you wish to order.
Browse all 104 part references
| Ref. | Part number / description | Order or enquire |
|---|---|---|
| 3305030-AScrew KA50X30 (Retail)MOTOR UNIT M550 – KIT | Ask us about this part Enquire about this part | |
| 3379616-AScrew KA50X16 (Retail)CHASSIS M550 – KIT | Ask us about this part Enquire about this part | |
| 3379440-AScrew KA50X12 A2 WN1412 (Retail)CHASSIS M550 – KIT | Ask us about this part Enquire about this part | |
| 3379616-AScrew KA50X16 (Retail)DRIVE SYS M600 – KIT | Ask us about this part Enquire about this part | |
| 9995899-DIYCable Dyn 17m SWV DIY IOM550 | Ask us about this part Enquire about this part | |
| 9991660-ASSYFilter Basket Assy M600FILTER M550 – KIT | Ask us about this part Enquire about this part | |
| 9991661-ASSYFilter Cartridges Net (Set of 4)Filter Basket Assy M600 | Ask us about this part Enquire about this part | |
| 9991479-ASSYFilter Panel Kit M2/M2i Ultra Fine (F&R – 2)FILTER M550 – KIT | Ask us about this part Enquire about this part | |
| 999522892-ASSYFilter Cover M550 ASSYOUTER CASING M550 TOP – KIT | Ask us about this part Enquire about this part | |
| 9995714061Handle Kit M700 L. GreyOUTER CASING M550 TOP – KIT | Ask us about this part Enquire about this part | |
| M96410192Gromet Holder M600 Blue 660COUTER CASING M550 TOP – KIT | Ask us about this part Enquire about this part | |
| M96410234Bumper M600 Blue 660COUTER CASING M550 TOP – KIT | Ask us about this part Enquire about this part | |
| M96410117Cover DIY M600 BlueOUTER CASING M550 TOP – KIT | Ask us about this part Enquire about this part | |
| 99832911Skirt Panel M600 TransparentOUTER CASING M550 FRONT – KIT | Ask us about this part Enquire about this part | |
| M96410251Float Housing M600 C.GreyOUTER CASING M550 FRONT – KIT | Ask us about this part Enquire about this part | |
| 6250963Float M600OUTER CASING M550 FRONT – KIT | Ask us about this part Enquire about this part | |
| 9983295Cover Float M600OUTER CASING M550 FRONT – KIT | Ask us about this part Enquire about this part | |
| 6250964Float Front M600 iO F1/F2OUTER CASING M550 FRONT – KIT | Ask us about this part Enquire about this part | |
| M96410142Panel Left M600 Blue 660COUTER CASING M550 SIDE – KIT | Ask us about this part Enquire about this part | |
| M96410021Skit M600 D.GreyOUTER CASING M550 SIDE – KIT | Ask us about this part Enquire about this part | |
| M96410152Panel Right M600 Blue 660COUTER CASING M550 SIDE – KIT | Ask us about this part Enquire about this part | |
| 99953062-EXMotor Unit M550 ExMOTOR UNIT M550 – KIT | Ask us about this part Enquire about this part | |
| 3379440-AScrew KA50X12 A2 WN1412 (Retail)Motor Unit M550 Ex | Ask us about this part Enquire about this part | |
| 3101308-AScrew M3X8 DIN965A-A2 TUFMotor Unit M550 Ex | Ask us about this part Enquire about this part | |
| M96410181Chassis Panel M600 C.Grey 11CCHASSIS M550 – KIT | Ask us about this part Enquire about this part | |
| 9993318Float House Assy Left M600CHASSIS M550 – KIT | Ask us about this part Enquire about this part | |
| M96410161Chassis Door Left M600 Grey 11CCHASSIS M550 – KIT | Ask us about this part Enquire about this part | |
| M96410011Chassis M600CHASSIS M550 – KIT | Ask us about this part Enquire about this part | |
| M96410171Chassis Door Right M600 Grey 11CCHASSIS M550 – KIT | Ask us about this part Enquire about this part | |
| M96200071Bypass Cover Right S2 C.GreyCHASSIS M550 – KIT | Ask us about this part Enquire about this part | |
| M96200061Bypass Cover Left S2 C.Grey*CHASSIS M550 – KIT | Ask us about this part Enquire about this part | |
| 9991731-ASSYBypass Assy M2/M2iCHASSIS M550 – KIT | Ask us about this part Enquire about this part | |
| 9983262Inlet Chassis Strip M600CHASSIS M550 – KIT | Ask us about this part Enquire about this part | |
| 99830244Rapid Drain Flap (M600)CHASSIS M550 – KIT | Ask us about this part Enquire about this part | |
| 3726287Weight Rear M600CHASSIS M550 – KIT | Ask us about this part Enquire about this part | |
| M96410272Side Panel M600 L.Grey 7544c RightCHASSIS M550 – KIT | Ask us about this part Enquire about this part | |
| 9995547-ASSYActive Brush IO GreyDRIVE SYS M600 – KIT | Ask us about this part Enquire about this part | |
| 3379616-AScrew KA50X16 (Retail)Active Brush IO Grey | Ask us about this part Enquire about this part | |
| 9983123Active Brush Gear M2/M2iActive Brush IO Grey | Ask us about this part Enquire about this part | |
| M96410201Brush Active Left Side M600 iO F1Active Brush IO Grey | Ask us about this part Enquire about this part | |
| 9983113Bushing – Active Brush S300Active Brush IO Grey | Ask us about this part Enquire about this part | |
| 9983119Active Brush Adaptor (M2/M2i R)Active Brush IO Grey | Ask us about this part Enquire about this part | |
| 99966021Brush Active Sphiral Left GreyActive Brush IO Grey | Ask us about this part Enquire about this part | |
| 99832691Brush Active Centre Shaft M600 iO F1Active Brush IO Grey | Ask us about this part Enquire about this part | |
| 6101910PVC Tube M600Active Brush IO Grey | Ask us about this part Enquire about this part | |
| 9985063Bushing Central Front M600Active Brush IO Grey | Ask us about this part Enquire about this part | |
| 99966031Brush Active Sphiral Right GreyActive Brush IO Grey | Ask us about this part Enquire about this part | |
| M96410211Brush Active Right Side M600 iO F1Active Brush IO Grey | Ask us about this part Enquire about this part | |
| 9995548-ASSYBrush Assy Dyn IO GreyDRIVE SYS M600 – KIT | Ask us about this part Enquire about this part | |
| 6101611Brush WB RingBrush Assy Dyn IO Grey | Ask us about this part Enquire about this part | |
| 9983152Track: M1/M2 GreyDRIVE SYS M600 – KIT | Ask us about this part Enquire about this part | |
| 61020601Brush Dyn CB Grey (Moulded)*Brush Assy Dyn IO Grey | Ask us about this part Enquire about this part | |
| 9983112Bearing: Wheel M2/M2iDRIVE SYS M600 – KIT | Ask us about this part Enquire about this part | |
| 3884080Bearing: Wheel Dyn TTBrush Assy Dyn IO Grey | Ask us about this part Enquire about this part | |
| M96410329Wheel Cover Large Grey 7544CDRIVE SYS M600 – KIT | Ask us about this part Enquire about this part | |
| M96200031Wheel Disc S1 Grey 11CDRIVE SYS M600 – KIT | Ask us about this part Enquire about this part | |
| 9983114Bushing – Wheel 2DRIVE SYS M600 – KIT | Ask us about this part Enquire about this part | |
| 9983379Wheel Front Grey M600DRIVE SYS M600 – KIT | Ask us about this part Enquire about this part | |
| M96410339Wheel Cover Small Light Grey M600DRIVE SYS M600 – KIT | Ask us about this part Enquire about this part | |
| M96410315Wheel Cap Small M600 GreyDRIVE SYS M600 – KIT | Ask us about this part Enquire about this part | |
| 9983120Adaptor For Wheel Bearing M2/M2iDRIVE SYS M600 – KIT | Ask us about this part Enquire about this part | |
| 9983115Bushing – Brush 3DRIVE SYS M600 – KIT | Ask us about this part Enquire about this part | |
| 58984405LFCable – Power Supply AUPOWER SUPPLY IOT 180W AU – KIT | Ask us about this part Enquire about this part | |
| 9991754Cable LOCKER FOR P.S ASSYPOWER SUPPLY IOT 180W AU – KIT | Ask us about this part Enquire about this part | |
| 99956083AU-AV10Power Supply IoT 180wPOWER SUPPLY IOT 180W AU – KIT | Ask us about this part Enquire about this part | |
| 9985069Bushing Brush M600Active Brush IO Grey | Ask us about this part Enquire about this part | |
| 9991273Retrofit For Cable Con 2010Cable Dyn 1.2m SVW DIY (M600) | Ask us about this part Enquire about this part | |
| 9983358Gromet 14mm M800Cable Dyn 1.2m SVW DIY (M600) | Ask us about this part Enquire about this part | |
| 9995090Cable Float AssyCable Dyn 17m SWV DIY IO | Ask us about this part Enquire about this part | |
| 9996859-DIYCable Dyn 1.2m SVW DIY (M600)Cable Dyn 17m SWV DIY IO | Ask us about this part Enquire about this part | |
| 5000009Amphenol Plug*Cable Dyn 17m SWV DIY IO | Ask us about this part Enquire about this part | |
| 9991503-ASSYCaddy Sub (Domestic) Screw KitCaddy (Domestic Universal) | Ask us about this part Enquire about this part | |
| 9980675Caddy Sub (Domestic) Handle HookCaddy (Domestic Universal) | Ask us about this part Enquire about this part | |
| 9983202Caddy Sub (Domestic NS) Adaptor For PSUCaddy (Domestic Universal) | Ask us about this part Enquire about this part | |
| 4197023-ASSYCaddy Sub (Domestic) Profile + Insert AssyCaddy (Domestic Universal) | Ask us about this part Enquire about this part | |
| 9983203Caddy Sub (Domestic NS) Cover for PSU HousingCaddy (Domestic Universal) | Ask us about this part Enquire about this part | |
| 9983181Caddy Sub (Domestic NS) Adaptor S LineCaddy (Domestic Universal) | Ask us about this part Enquire about this part | |
| 9980672Caddy Sub (Domestic) Wheel CoverCaddy (Domestic Universal) | Ask us about this part Enquire about this part | |
| 9980670Caddy Sub (Domestic) BaseCaddy (Domestic Universal) | Ask us about this part Enquire about this part | |
| 9980681Caddy Sub (Domestic) WheelCaddy (Domestic Universal) | Ask us about this part Enquire about this part | |
| 9996084-ASSYCaddy (Domestic Universal)CADDY S2 | Ask us about this part Enquire about this part | |
| 1811404Cable ConnectorRetrofit For Cable Con 2010 | Ask us about this part Enquire about this part | |
| 3861002RK RING FOR CABLE CONN.Retrofit For Cable Con 2010 | Ask us about this part Enquire about this part | |
| 9980025Washer Gland 13MMRetrofit For Cable Con 2010 | Ask us about this part Enquire about this part | |
| 9985027PLASTIC WASHER 7MM X 2MMRetrofit For Cable Con 2010 | Ask us about this part Enquire about this part | |
| 9985048Cable Conn Three PinRetrofit For Cable Con 2010 | Ask us about this part Enquire about this part | |
| 9983426Jet Base M550Motor Unit M550 Ex | Ask us about this part Enquire about this part | |
| 5588902Impeller Motor Holder 2Motor Unit M550 Ex | Ask us about this part Enquire about this part | |
| 9995266Impeller + Screw DC BlackMotor Unit M550 Ex | Ask us about this part Enquire about this part | |
| 3861644O-Ring 164*4 N70Motor Unit M550 Ex | Ask us about this part Enquire about this part | |
| 3862503Seal Oring 25X3 I.MMotor Unit M550 Ex | Ask us about this part Enquire about this part | |
| 5583323Seal Oring 32X3Motor Unit M550 Ex | Ask us about this part Enquire about this part | |
| 5890090LFCable MBU M600Motor Unit M550 Ex | Ask us about this part Enquire about this part | |
| 9991208-ASSYImpeller Motor M600 AssyMotor Unit M550 Ex | Ask us about this part Enquire about this part | |
| 9983180Front Clips For MBU S300Motor Unit M550 Ex | Ask us about this part Enquire about this part | |
| 4850023Desiccant BagMotor Unit M550 Ex | Ask us about this part Enquire about this part | |
| 9991207-ASSYDrive Motor M600 AssyMotor Unit M550 Ex | Ask us about this part Enquire about this part | |
| 9983142Gear Z12 For Drive MotorMotor Unit M550 Ex | Ask us about this part Enquire about this part | |
| 3862474Oring 47x4mmMotor Unit M550 Ex | Ask us about this part Enquire about this part | |
| 9983140Clip For MBUMotor Unit M550 Ex | Ask us about this part Enquire about this part | |
| 9991823-ASSYBox For MU M600 + F.I AssyMotor Unit M550 Ex | Ask us about this part Enquire about this part | |
| 3379616-AScrew KA50X16 (Retail)OUTER CASING M550 TOP – KIT | Ask us about this part Enquire about this part | |
| 3379440-AScrew KA50X12 A2 WN1412 (Retail)OUTER CASING M550 FRONT – KIT | Ask us about this part Enquire about this part | |
| 3305040-AScrew KA50X40 (Retail)OUTER CASING M550 TOP – KIT | Ask us about this part Enquire about this part |
