Zodiac TX20 parts.
See how it fits.

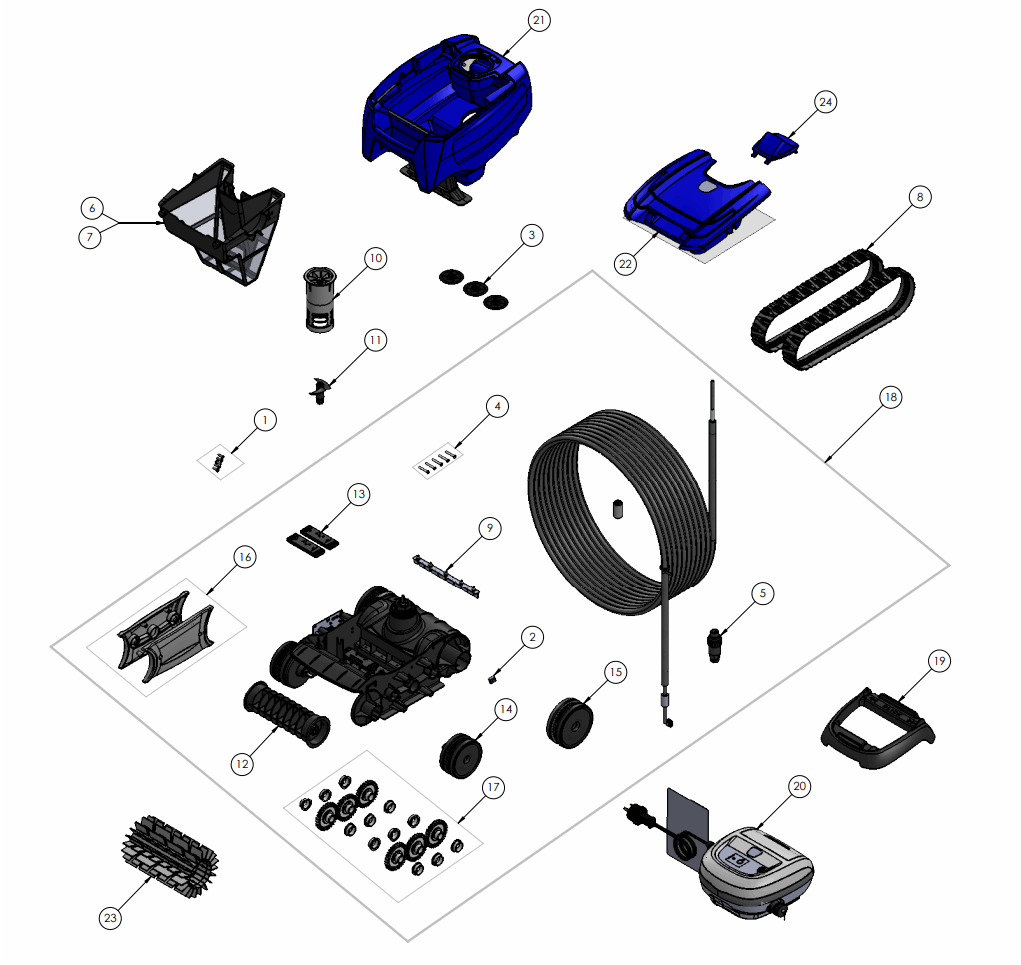

Explore the manufacturer’s breakdown. Select a numbered part to find its reference, check current prices and availability, then order from our range or ask our Perth team for help.
Model reference / WR000101Inside your cleaner
Find it in the breakdown.
Select a numbered reference in the drawing or search the parts list. Have your serial number handy to check the right version.
Checking current PRP prices and availability…
Choose a part
Follow the reference.
The part number and available purchase or enquiry options will appear here.
Every listed reference
The TX20 parts list.
Model WR000101. A diagram reference identifies the component; the part number identifies the replacement. Unavailable references are enquiry-only. Confirmed discontinued parts are labelled and cannot be ordered online.
Browse all 24 part references
| Ref. | Part number / description | Order or enquire |
|---|---|---|
| R0767400CHASSIS-COMPLETE CHASSIS TXComplete cleaner | $726.90 Available on backorder | |
| R0762600CONTROL BOX TX20Complete cleaner | $317.90 Available on backorder | |
| R0766300BODY-COMPLETE BODY TXComplete cleaner | $160.05 Available on backorder | |
| R0762900FILTER TX 100 MICRONComplete cleaner | $122.60 Available on backorder | |
| R0763000FILTER TX 200 MICRONComplete cleaner | $122.60 Available on backorder | |
| R0764500COVER TX20Complete cleaner | $95.05 Available on backorder | |
| R0565600FLOATING CABLE PLUGComplete cleaner | $59.55 Available on backorder | |
| R0771800WHEEL-COMPLETE FRONT TX 2Complete cleaner | $50.95 Available on backorder | |
| R0771900WHEEL-COMPLETE BACK TX 2Complete cleaner | $50.95 Available on backorder | |
| R0765600TRACKS TXComplete cleaner | $42.45 Available to order | |
| R0772100COMPLETE GEAR KIT TXComplete cleaner | $42.30 Available on backorder | |
| R0764900BRUSH TXComplete cleaner | $40.75 Available on backorder | |
| R0767000HOLDER-BRUSH HOLDER TXComplete cleaner | $31.35 Available on backorder | |
| R0767100BALLAST SMALLER SET OF 2Complete cleaner | $25.95 Available on backorder | |
| R0765800BLADE KIT TX 5PKComplete cleaner | $25.95 Available on backorder | |
| R0662600CONTROL UNIT BASEComplete cleaner | $15.70 Available on backorder | |
| R0772200NOZZLE BLUE TXComplete cleaner | $15.25 Available on backorder | |
| R0766100INTERNAL FLOW OUTLETComplete cleaner | $13.60 Available to order | |
| R0657900MOTOR BLOCK SHAFT PIN 4Complete cleaner | $10.00 Available on backorder | |
| R0633300EXHAUST VALVE C SET OF 3Complete cleaner | $9.05 Available on backorder | |
| R0766200IMPELLER TXComplete cleaner | $5.35 Available on backorder | |
| R0516700SCREW 4-12 SET OF 5Complete cleaner | $4.05 Available on backorder | |
| R0638900SCREW 4-25MM SET OF 5Complete cleaner | $4.05 Available on backorder | |
| R0772000FLANGES TXComplete cleaner | Unavailable — contact us for options Enquire about this part |
Local matching help
Not sure which version?
Send your cleaner model, serial number and a photo of the part. Our Wangara and Jandakot team can help you find the right match.
